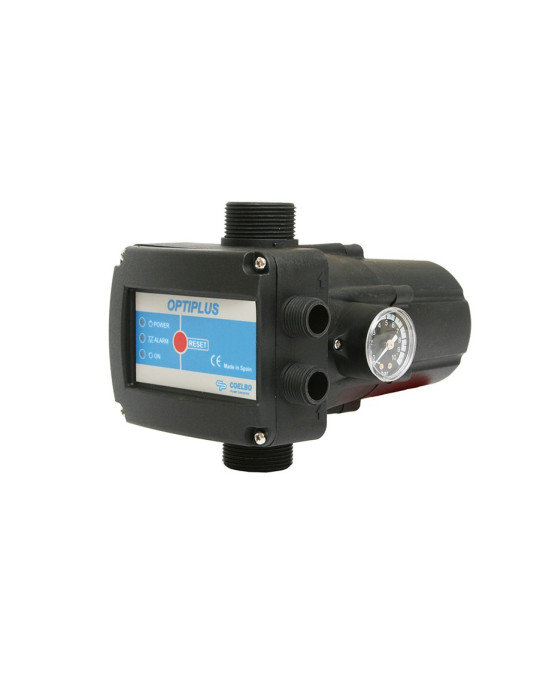

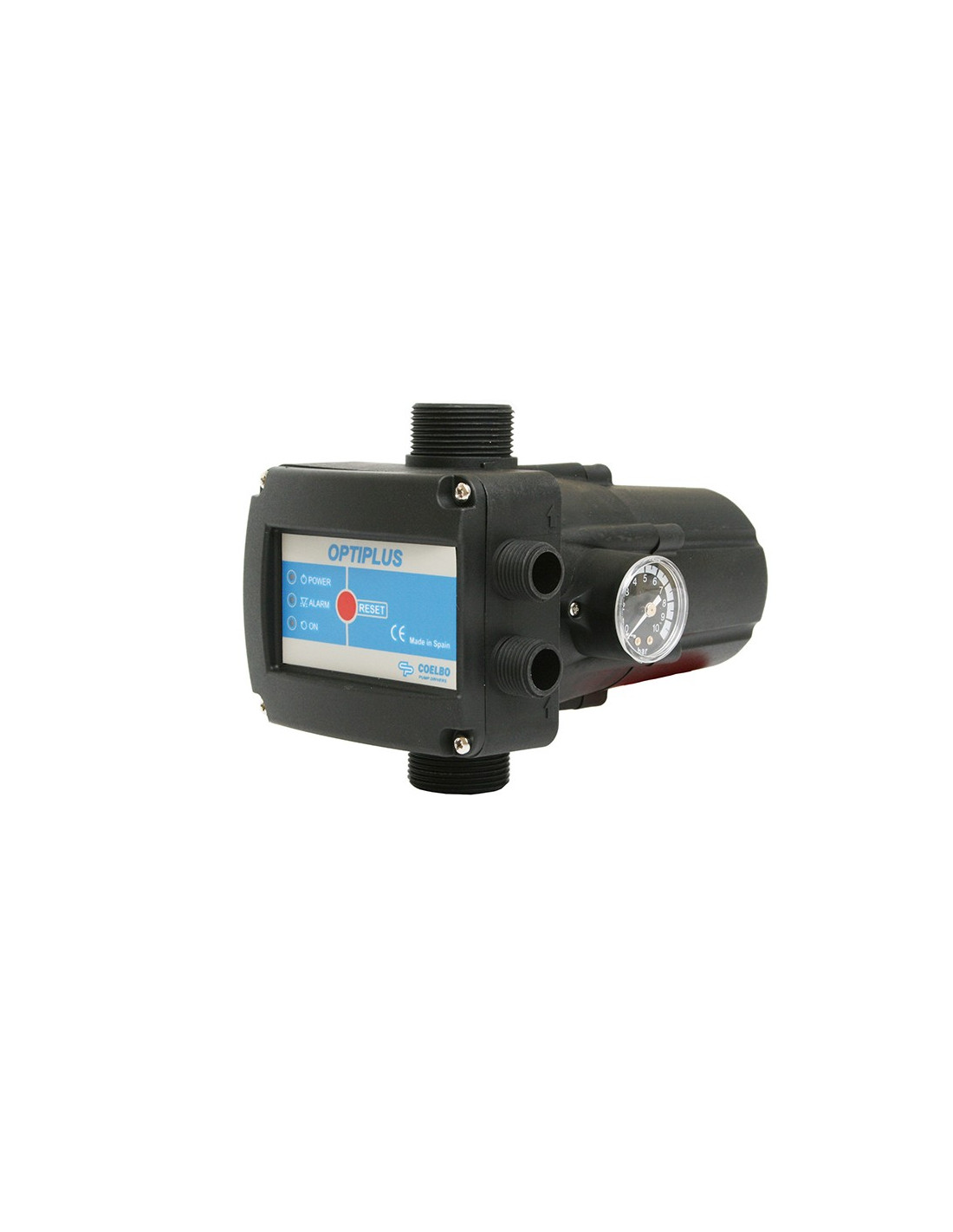

OPTIPLUS dispositif automatique pour le contrôle intégral des pompes

Pump control and protection manager single-phase 1"1/4

009200
Delivery 2 to 4 days
€123.33

€123.33 tax excl.

Compact device for the control and protection of a single-phase surface or submersible pump of 2.20 kW max, patented operation, fitted with an electronic flow and pressure sensor, water shortage safety on suction, the optimatic replaces the pressure switch, the bladder tank and the check valve, the device starts the pump as soon as a tap is opened, and stops it when the tap is closed.

Description

Specifications:
- G1 1/4" threaded inlet and outlet.
- Protection against water hammer.
- Compact, reduced dimensions.
- Elimination of protection devices (level switch).
- Avoids oversizing the pump, as it makes full use of the flow rate-pressure curve.
- Built-in dry-running safety system (lack of water at suction).
- Automatic reset after a power cut.
- Control and signalling panel, POWER (ON) indicator and fault (FAILURE) indicator.
- Manual push button for start-up (RESET).

Model OPTIPLUS
Reference 009200
Max. motor power (Kw) 2.20
Power supply (V) 230 / single-phase
Start-up pressure (bar) 1.5 to 3.0
Min. stop pressure (bar) 1.5 above the start-up pressure
Max pressure (bar) 10
Max current (A) 16
Max flow rate (m3/h) 10
Check valve Integrated
Inlet / outlet connection G1 1”1/4 thread
Pressure gauge (bar) 0 to 10
Max. liquid temperature (°C) + 60
Weight (Kg) 1,35
