Use:
- Pumping of clear or lightly loaded water.
- Transfer of liquid fertilisers.
- Tank filling.
Performance:
- Permissible particle size: see table below
- Suction height: maximum 7 metres.
- Ambient temperature: up to 40°C.
- Fluid temperature: max. 90 °C.
Construction:

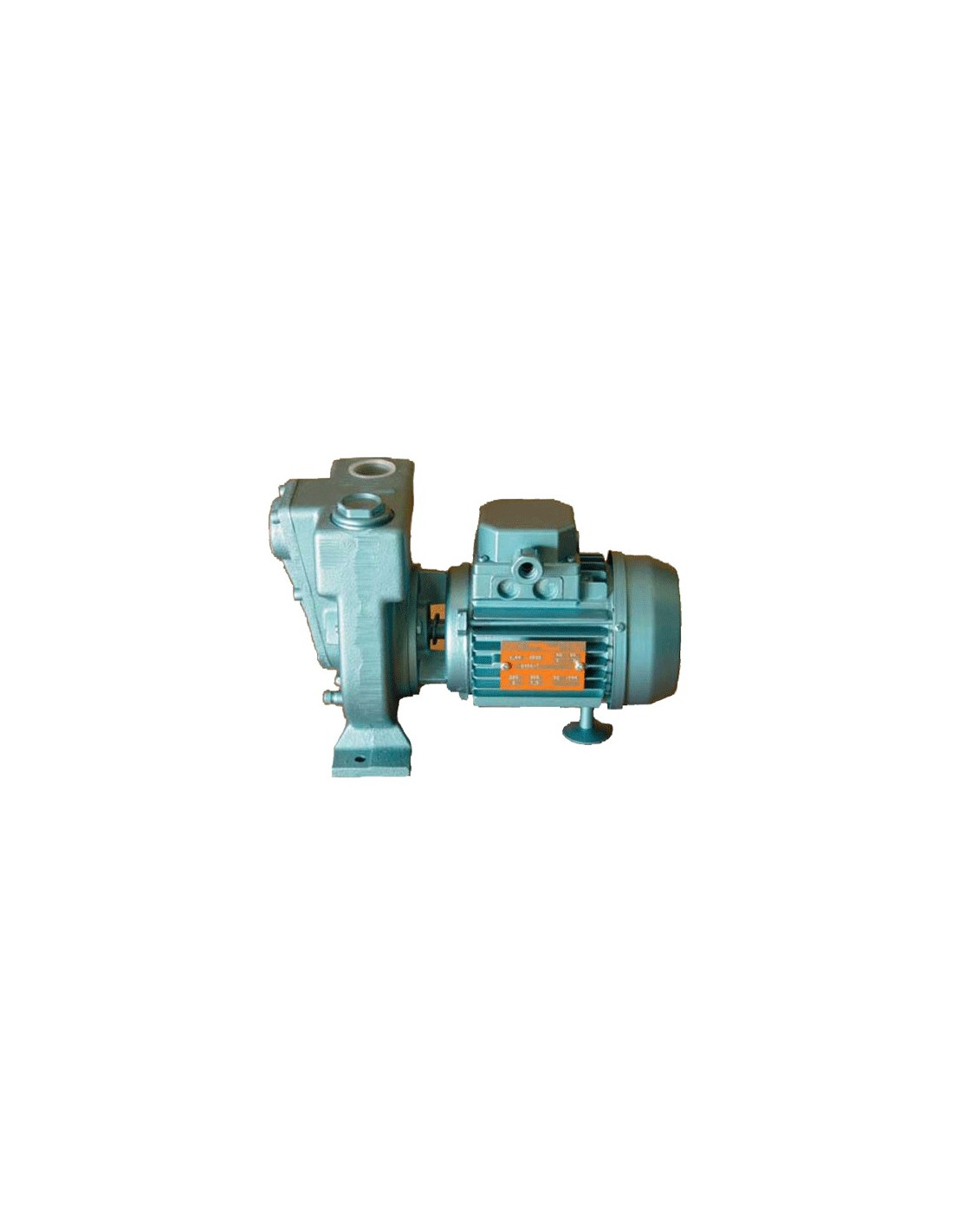

- Single-stage self-priming centrifugal type.
- GG20 cast iron body and impeller.
- AISI 430 stainless steel shaft.
- Open impeller.
- Threaded ports (see specifications in the table below).
- Priming valve and nitrile seals (Viton on request).
- Carbon / ceramic mechanical seal.
- Motor 2900 rpm – Single-phase 230 or three-phase 230/400V.
- IP 54 Class F.
- Built-in thermal protection on single-phase models.
| Model | 01 ORA-M | 01 ORA-T |
|---|---|---|
| Reference | 601140 | 601141 |
| Voltage (V) | 230 | 400 |
| Power (Kw) | 0.45 | |
| Current (A) | 3.6 | 1.3 |
| Thermal protection | WITH | WITHOUT |
| DN suction | 1" F | |
| DN discharge | 1" F | |
| Permissible particle size (mm) | 8 | |
| Weight (Kg) | 10.5 | |
| Designation | m3/h | 0 | 1.5 | 3.0 | 4.5 |
|---|---|---|---|---|---|
| l/min | 0 | 25 | 50 | 75 | |
| 01 RA-M / T | H (m) |
11 | 9 | 7 | 4 |
