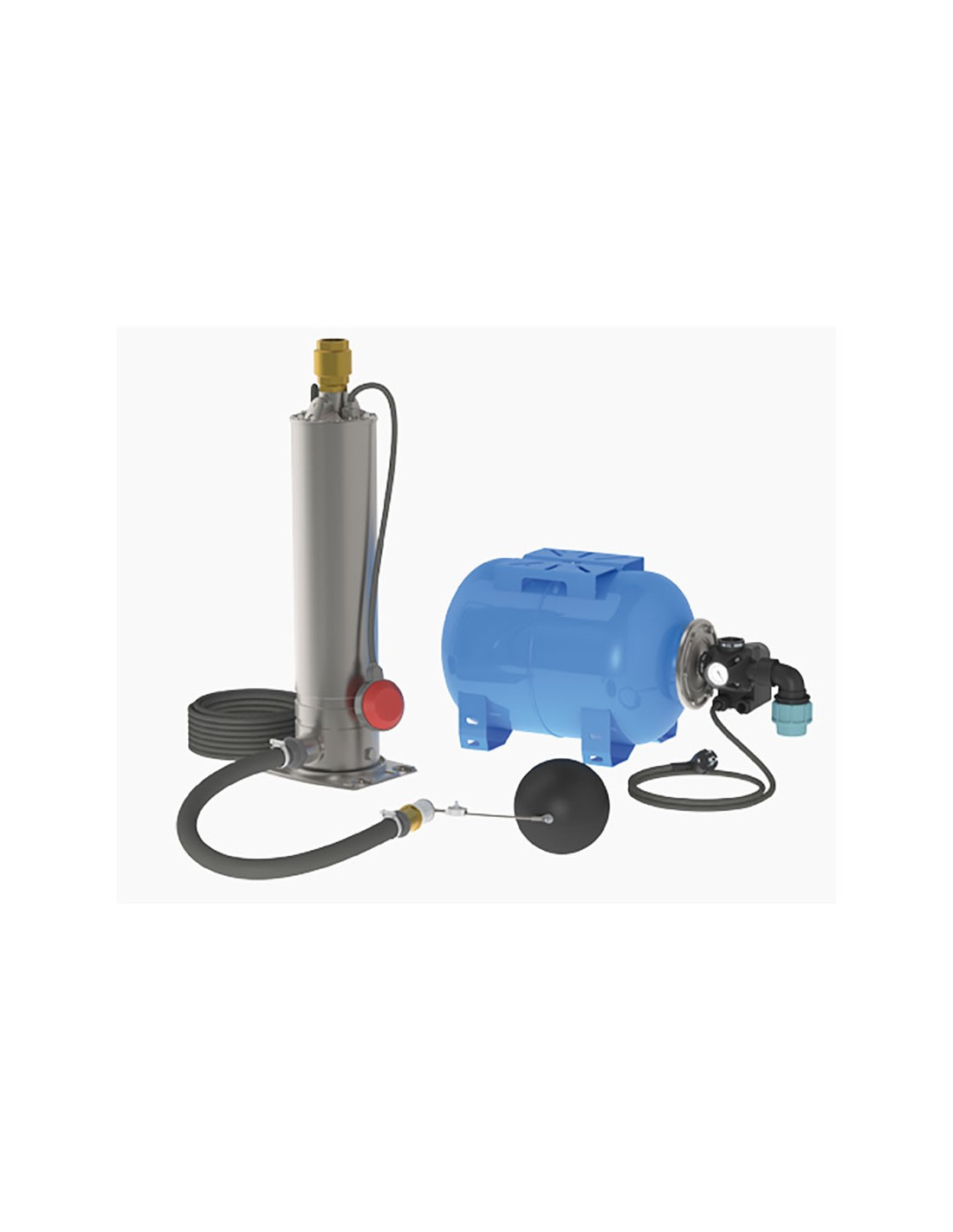

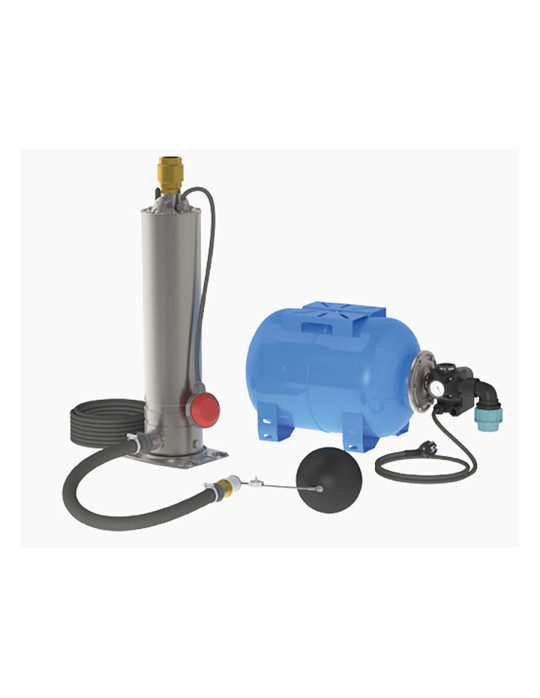

Booster kit with floating suction pump K EP

The kit is designed to supply a single house with rainwater from a tank or reservoir. The pump is designed to be submerged, with low suction via a floating strainer + water shortage safety via an integrated float. Its discharge feeds a booster tank fitted with a pressure switch, which controls the starting and stopping of the pump according to the water demand. The whole is connected to a thermal protection panel, with an on/off button, + remote control contact (pressure switch). The assembly is supplied pre-assembled for easier installation.

Use:
- Recommended storage volume: 5000 to 10000 litres.
- Use: 1 house (WC + 2 taps or 1 garden sprinkler).
- Pressure switch setting: 2.5 to 4 bar.

Specifications:
- 1 vertical multistage pump in chrome-nickel stainless steel.
- 1 ball float for water shortage safety.
- 1 DN32 floating suction kit (check valve-strainer, 1.5m hose and float).
- 1 horizontal bladder pressure tank, 10 bar (24 or 50L).
- 1 XMP 6 bar pressure switch + 1 pressure gauge.
- 1 non-return valve, 1 ball valve.
- 1 set of PE32 fittings + threaded brass fittings.
- 1 assembly of the switch and fittings on the tank.
- The whole is delivered on an individual pallet.

* Volume of water released by the tank before the pump starts.
- For a 24 L tank: 7 L.
- For a 50 L tank: 14 L.
- For an 80 L tank: 22 L.
- For a 200 L tank: 55 L.
