Booster kit with low suction pump K EP

The kit is designed to supply a single house with rainwater from a tank or reservoir. The pump is designed to be submerged, with low suction via a floating strainer + water shortage safety via an integrated float. Its discharge feeds a booster tank fitted with a pressure switch, which controls the starting and stopping of the pump according to the water demand. The whole is connected to a thermal protection panel, with an on/off button, + remote control contact (pressure switch). The assembly is supplied pre-assembled for easier installation.

Use:
- Recommended storage volume: 10 000 litres and over.
- Use: 1 house (WC + 2 taps or 4 garden sprinklers).
- Pressure switch setting: 2.5 to 4 bar.

Specifications :

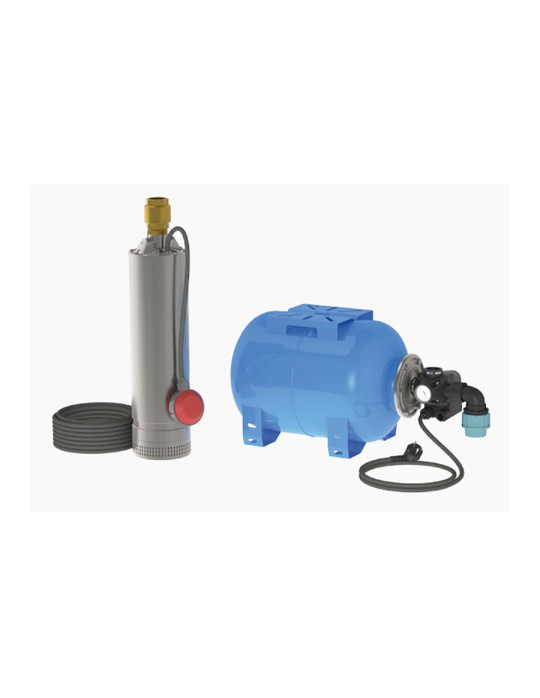

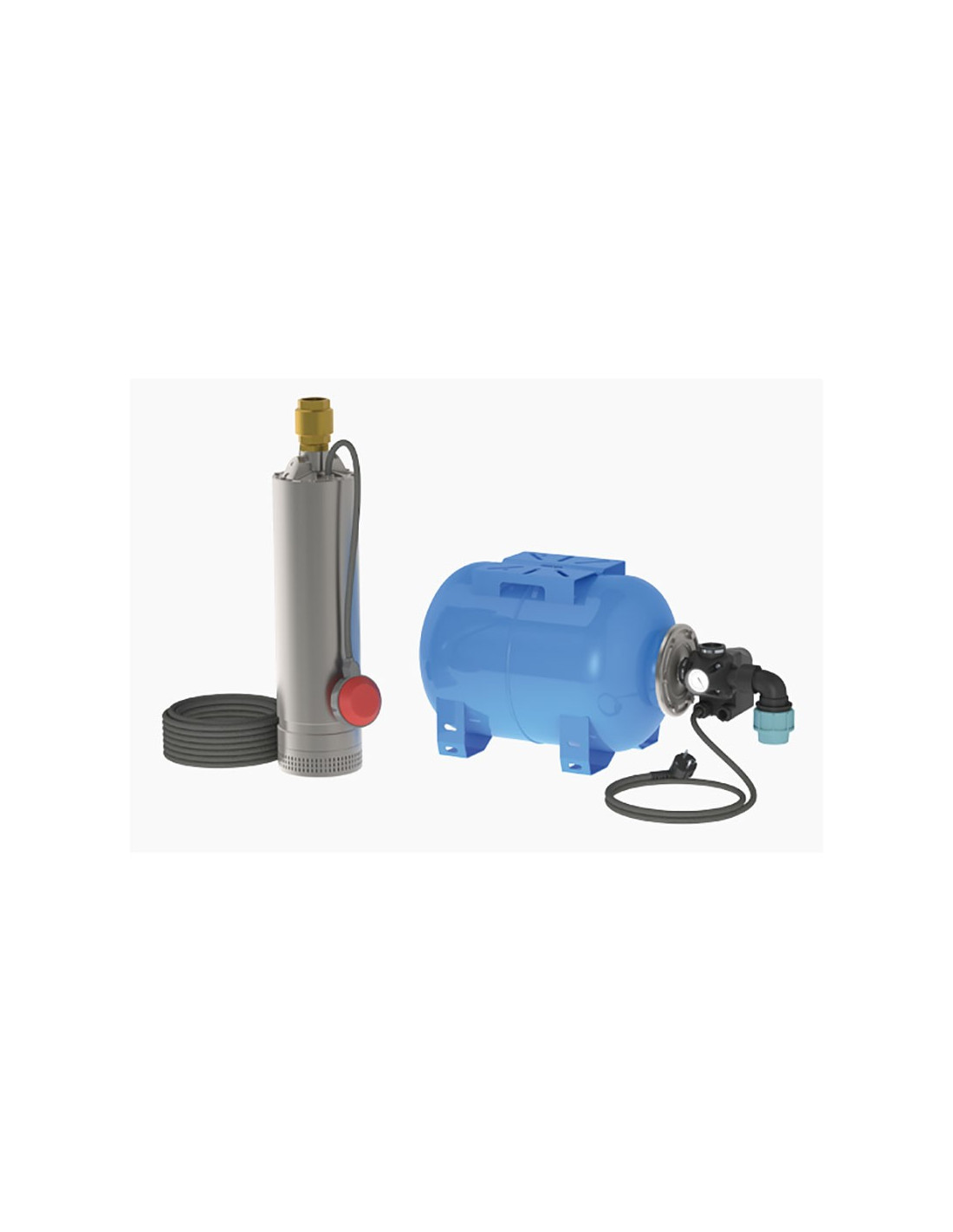

- 1 single-phase 230 V MPSM series submersible pump, fitted with 15 m of cable, a ball float and a male plug, with low suction.
- 1 horizontal bladder pressure tank, 10 bar CE (24 or 50 litres).
- 1 pressure switch + 1 pressure gauge 0 to 6 bar.
- Assembly delivered on an individual pallet.

* Volume of water released by the tank before the pump starts.
- For a 24 L tank: 7 L.
- For a 50 L tank: 14 L.
- For an 80 L tank: 22 L.
- For a 200 L tank: 55 L.
