CAL40 GXVM lifting station for slightly soiled water 40L

220216
Delivery 3 to 5 days
£653.04

£653.04 tax excl.

Installation in confined spaces, small footprint, lifting of water from bathrooms and sinks, and slightly loaded water with solid particles up to 25 mm, PVC discharge diameter 40. All stainless steel pump, with vertical magnetic float.

Description

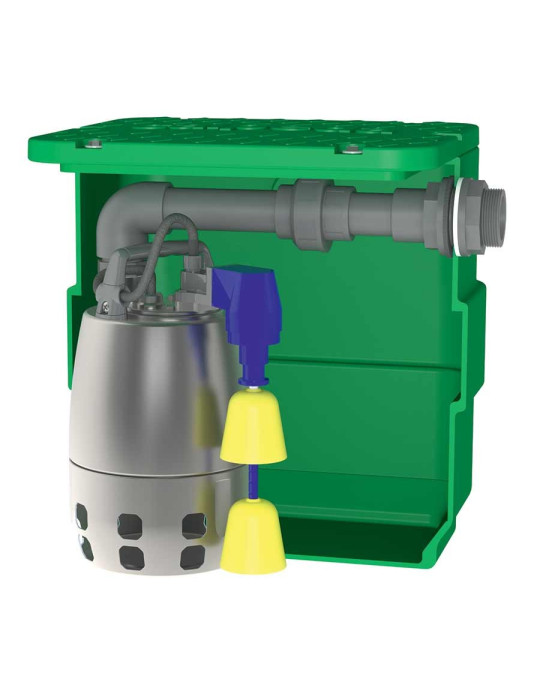

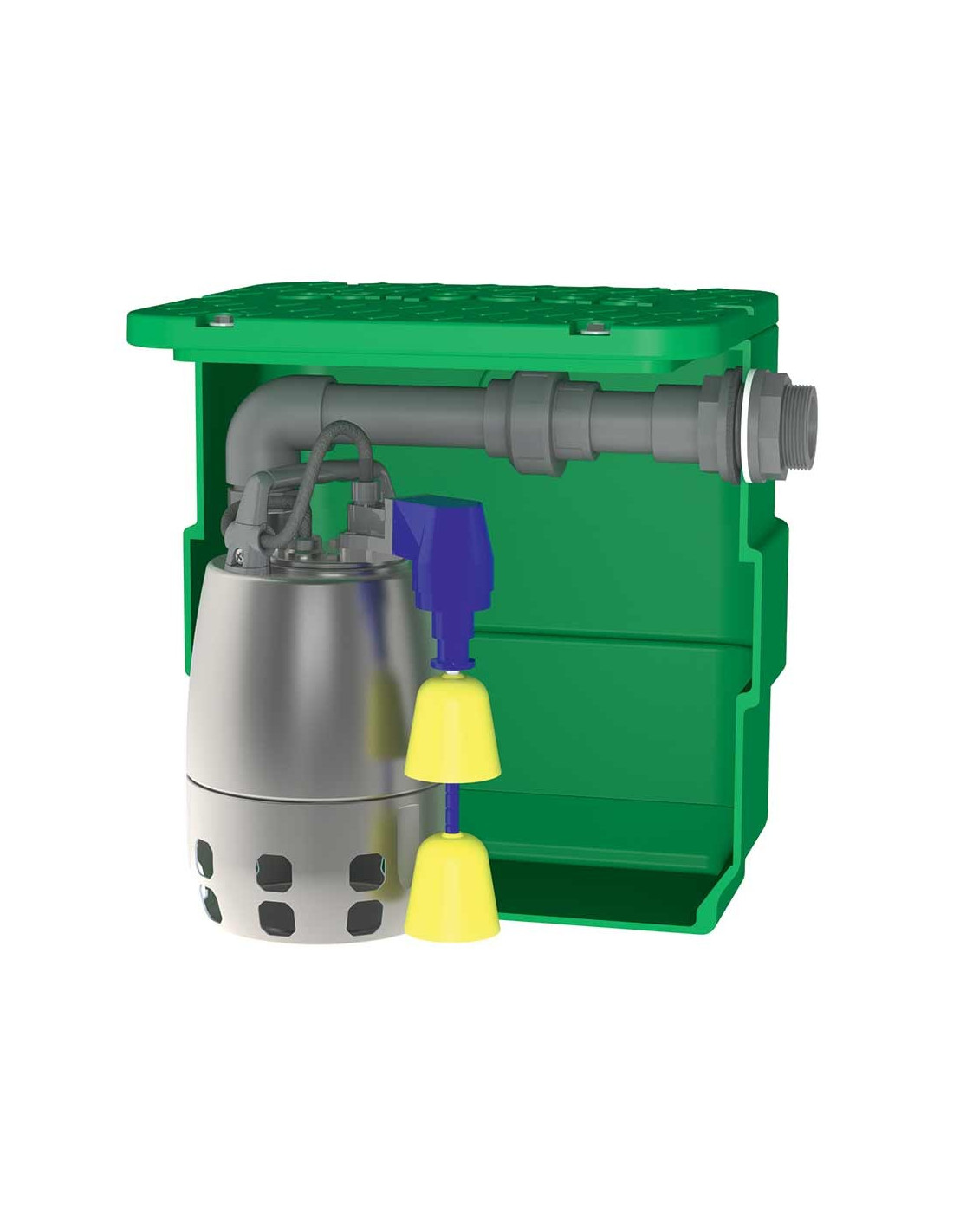

Buriable lifting station, in high-density polyethylene, with a watertight lid locked by TH screws, perfect sealing.

Composition of the lifting station:
- 1 very resistant underground polyethylene tank, volume 40 litres.
- 1 stainless steel lift pump specially for clear or lightly loaded water (vortex impeller - solid particle passage 25 mm). Supplied with on/off magnetic float and 10 m of cable fitted with a male plug.
- 1 check valve at the pump discharge.
- 1 PVC bulkhead fitting Ø 40 x 1”1/4.
- 1 rigid internal PVC pipework Ø 40.
- 1 cable gland gasket for moulded plug.
- 1 PVC Ø 40 shut-off valve with union fitting for maintenance.
- 2 PVC bulkhead fittings for vent and inlet water line.

Model Reference Voltage
(V)		 Power
(Kw)		 Amps
(A)		 Outlet
PVC Ø		 Passage
(mm)		 Weight
(Kg)
CAL40 GXVM 25-6 GFA
 220216 230 0.25 2.5 40 25 11.3



 Model Flow rate
(m3/h)		   0
3 6 9 10.2
CAL230 GXVM25-6 - GFA
 H.M.T
(m)		 6 5.2 3.8 2.2 1.5
