CALPEDA CALIDOUBLE PA 8 lift station 2 water loaded pumps

Name: CALPEDA CALIDOUBLE PA 8 lift station 2 water loaded pumps
Brand: CALPEDA
SKU: 3689
Price: 4280.0 EUR
Availability: InStock

Reference 220142

Delivery 4 to 8 days

€4,280.00

€4,280.00 tax excl.

CALPEDA CALIDOUBLE PA 8 sewage lifting station 2 x pumps. CALIDOUBLE PA 8 lifting 2 x pumps, is mouting on a base. Ideal for lift of sewage water or loaded water. Power rate to 0.55kw. Using for group of home, or individual. Available in 3 cisterns size : 780L, 1060L and 1340L.

Model

Attributs

Image	Ref.	Model	Unit price	Buy
	220142	780 L	€4,280.00	Sum.:
	220143	1060 L	€4,875.00	Sum.:
	220144	1340 L	€5,477.50	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

Composition:
- 1 buried tank in highly resistant polyethylene.
- 2 lift pumps special for loaded water, Vortex impeller (50 mm passage).
- 2 cast iron base feet for the lift pumps + 2 stainless steel guide bars.
- 2 PVC Ø 63 isolating valves on union fitting.
- 2 PVC Ø 63 ball check valves special for waste water.
- 2 chains and shackles in 316 stainless steel.
- 2 PVC Ø 63 pipes + manifold (internal).
- 3 float switches with 10 m of cable.
- 1 Ø 50 wall-through for the passage of pump and float cables.
- 1 PVC Ø 160 inlet sleeve, fitted with a gasket for the effluent inlet.
- 1 PVC Ø 50 sleeve for ventilation + 1 Ø 50 gasket.
- 1 control and protection panel for 2 lift pumps V2RM ELEC.

Model	CALIDOUBLE 1200 PA 8	CALIDOUBLE 1600 PA 8	CALIDOUBLE 2000 PA 8
Reference	220142	220143	220144
Power supply (V)	230 - single-phase
Power (Kw)	0.55
Volume (L)	780	1060	1340
Max inlet invert (mm)	- 600	- 1000	- 1400

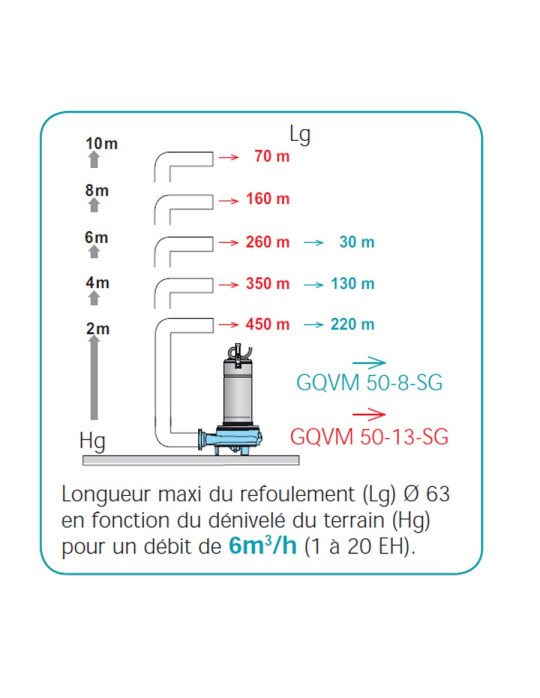

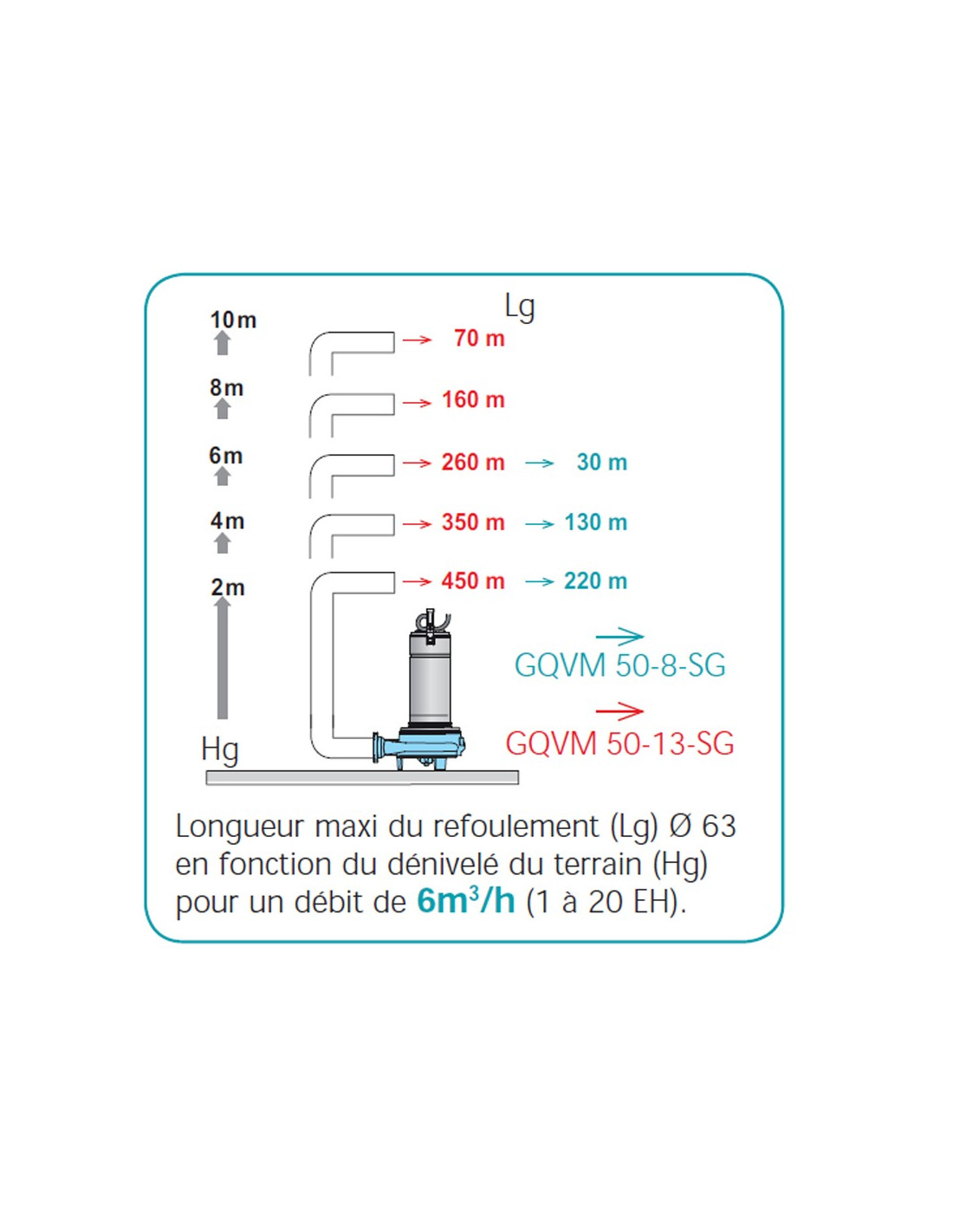

Max height (m)	6
Max flow rate (m3/h)	24
Overflow alarm	WITH
Dim. H x Diam	1200 x 1000	1600 x 1000	2000 x 1000
Weight (Kg)	131	148	168
