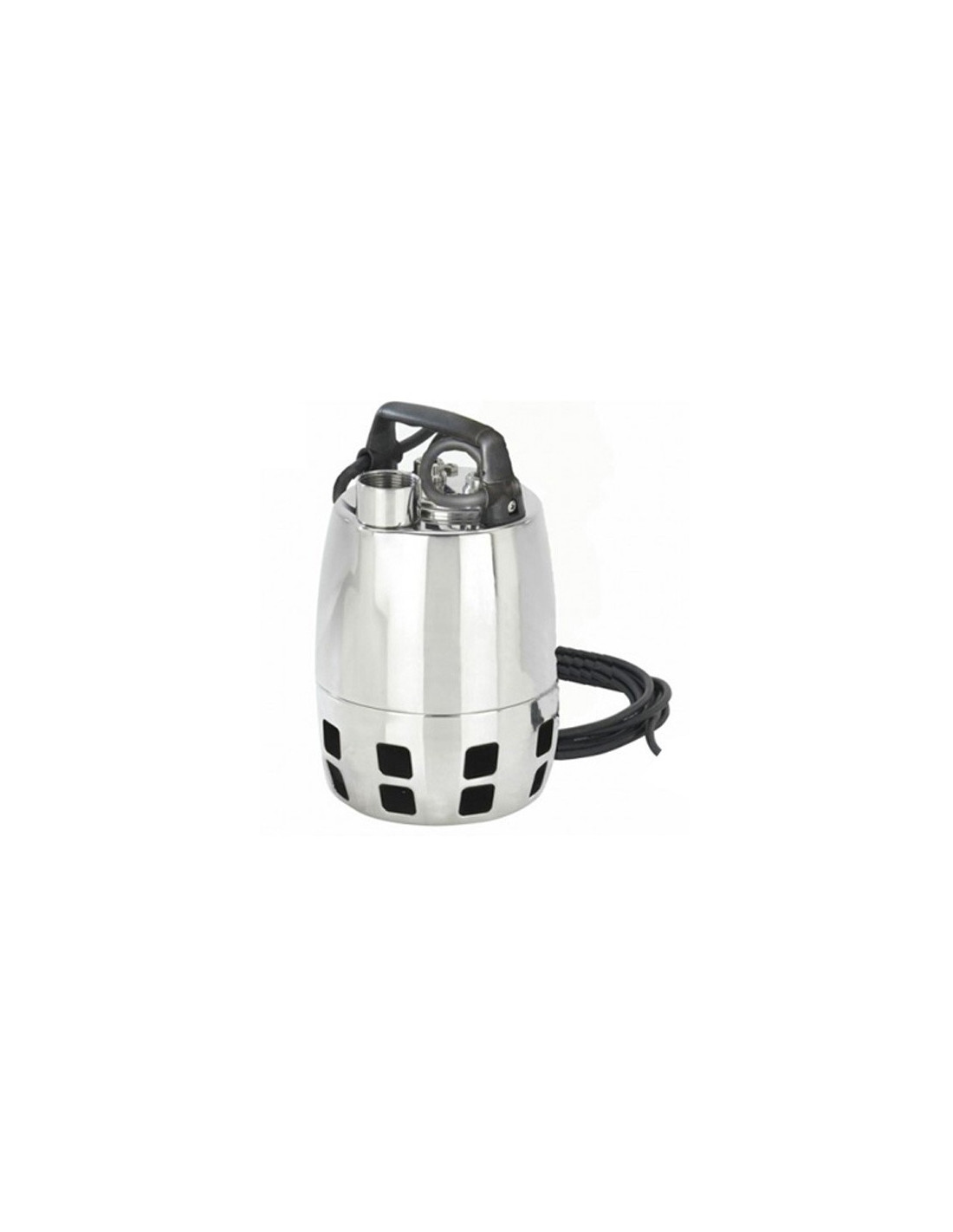

All-stainless steel Vortex submersible pump GXV 25 (400V)

205159
Delivery 2 to 4 days
£279.77

£279.77 tax excl.

All 304 stainless steel submersible lift pump, Vortex impeller, without float, available in three versions 0.25, 0.37 and 0.45 Kw.



Model

Attributs
Image Ref. Model Unit price Avail. Buy
All-stainless steel Vortex submersible pump GXV 25 (400V)
205159 0.25 Kw
£279.77
Available
All-stainless steel Vortex submersible pump GXV 25 (400V)
205241 0.25 Kw - 20 m
£299.31
Available
All-stainless steel Vortex submersible pump GXV 25 (400V)
205160 0.37 Kw
£316.75
Available
All-stainless steel Vortex submersible pump GXV 25 (400V)
205161 0.75 kW
£332.80
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Compact size and impressive specifications, for a wide variety of applications, head up to 10 m for a flow rate of up to 220 litres/minute.

Uses:
- For draining runoff water.
- For gravity-fed watering.

Limits of use:
- For clean water or dirty water with solid particles up to 25 mm in diameter.
- Liquid temperature up to 50° C.
- Max. immersion depth: 5 m.
- Minimum level for manual draining 30 mm.
- Continuous duty.

Motor:
- 2-pole induction motor, 50 Hz (n = 2900 1/min).
- Three-phase 230/400 V ± 10%.
- Motor cooled by the pumped water, circulating between the motor sleeve and the outer sleeve.
- Double shaft seal with oil chamber.
- Insulation class F. - Protection IP X8 (for continuous immersion).
- Dry winding with double moisture-resistant impregnation.
- Manufactured to: EN 60 335-2-41.

Pump:
- Pump body in chrome-nickel stainless steel (AISI 304).
- Suction filter in chrome-nickel stainless steel (AISI 304).
- VORTEX impeller in chrome-nickel stainless steel (AISI 304).
- Motor sleeve in chrome-nickel stainless steel (AISI 304).
- Pump sleeve in chrome-nickel stainless steel (AISI 304).
- Polypropylene handle.
- Shaft (AISI 303).
- Aluminium oxide/hard carbon/NBR mechanical seal.
- Lubricating oil. Seal: food/pharmaceutical grade white oil.

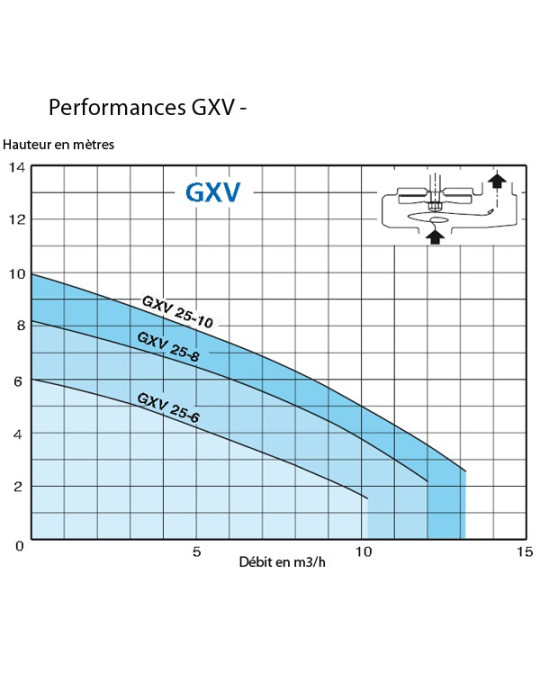

Model GXV 25-6 GXV 25-6/20
 GXV 25-8 GXV 25-10
Reference 205159 205241 205160 205161
Power supply (V) 400
Power (Kw) 0.25 0.25 0.37 0.45
Current (A) 1.6  2.3 2.8
Max. head (m) 6  8.2 10
Max flow rate (m3/h) 10  12 13
Particle passage (mm) 25
HO5RN-F cable (m) 10 20 10
Discharge port Vertical, 1" 1/4 female threaded



Dimensions and weight:

Model Dimensions (mm) Weight
(Kg)
H H1
GXV 25-6 302 267 5.3
GXV 25-8 337 302 6.6
GXV 25-10 337 302 7.3


Customs number: 84137081 - Country of origin: Italy
