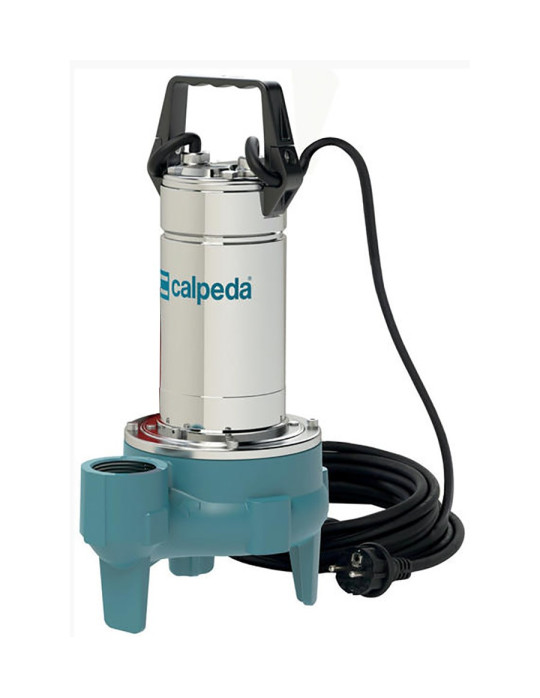

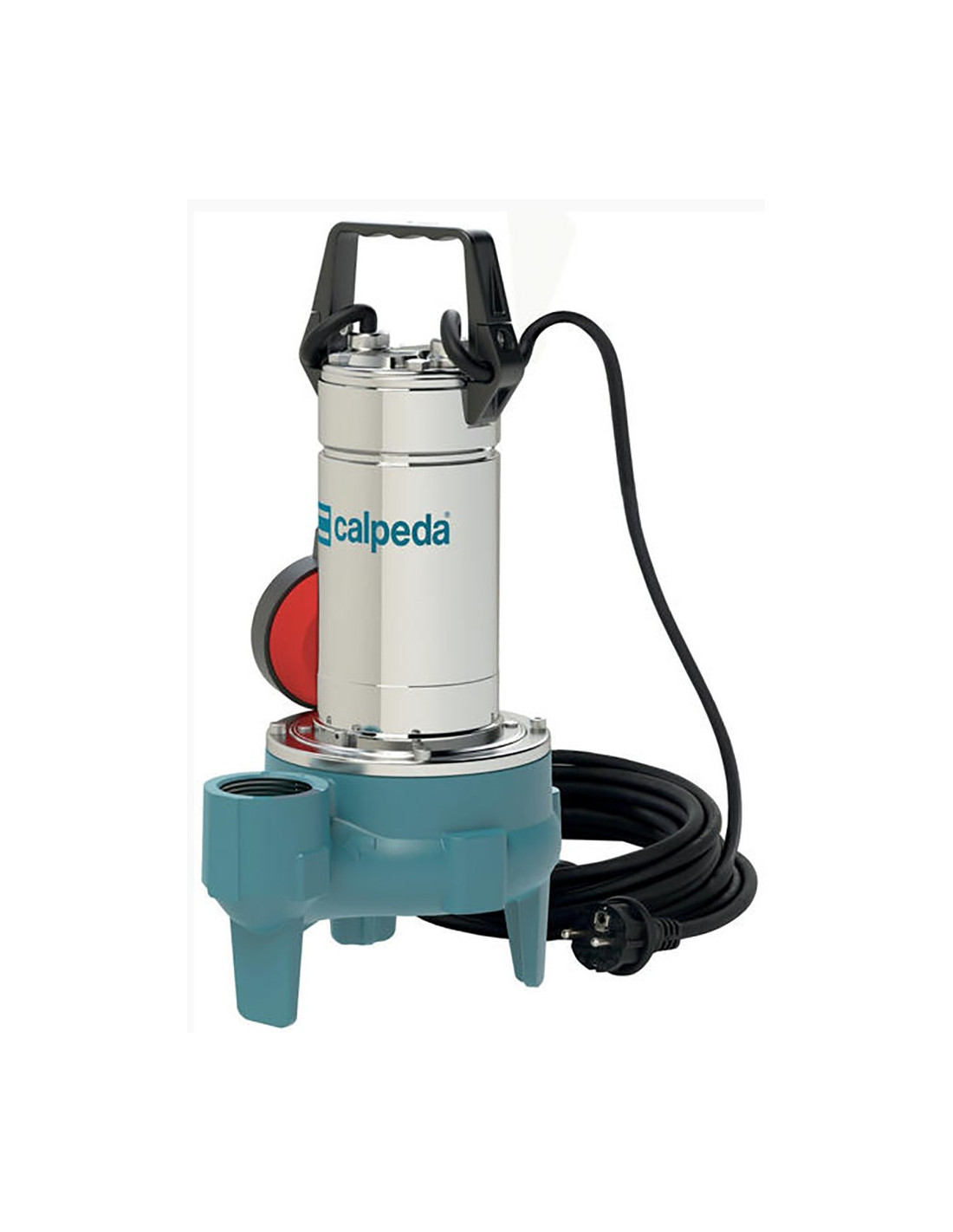

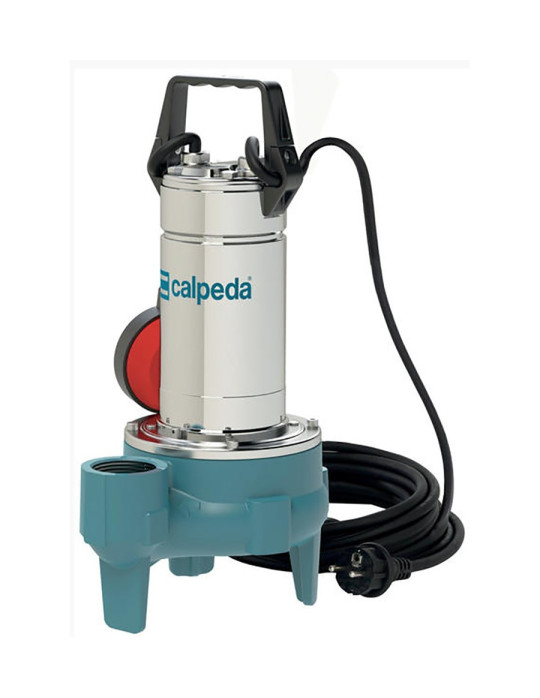

Pompe de relevage à roue vortex GQS 50-13

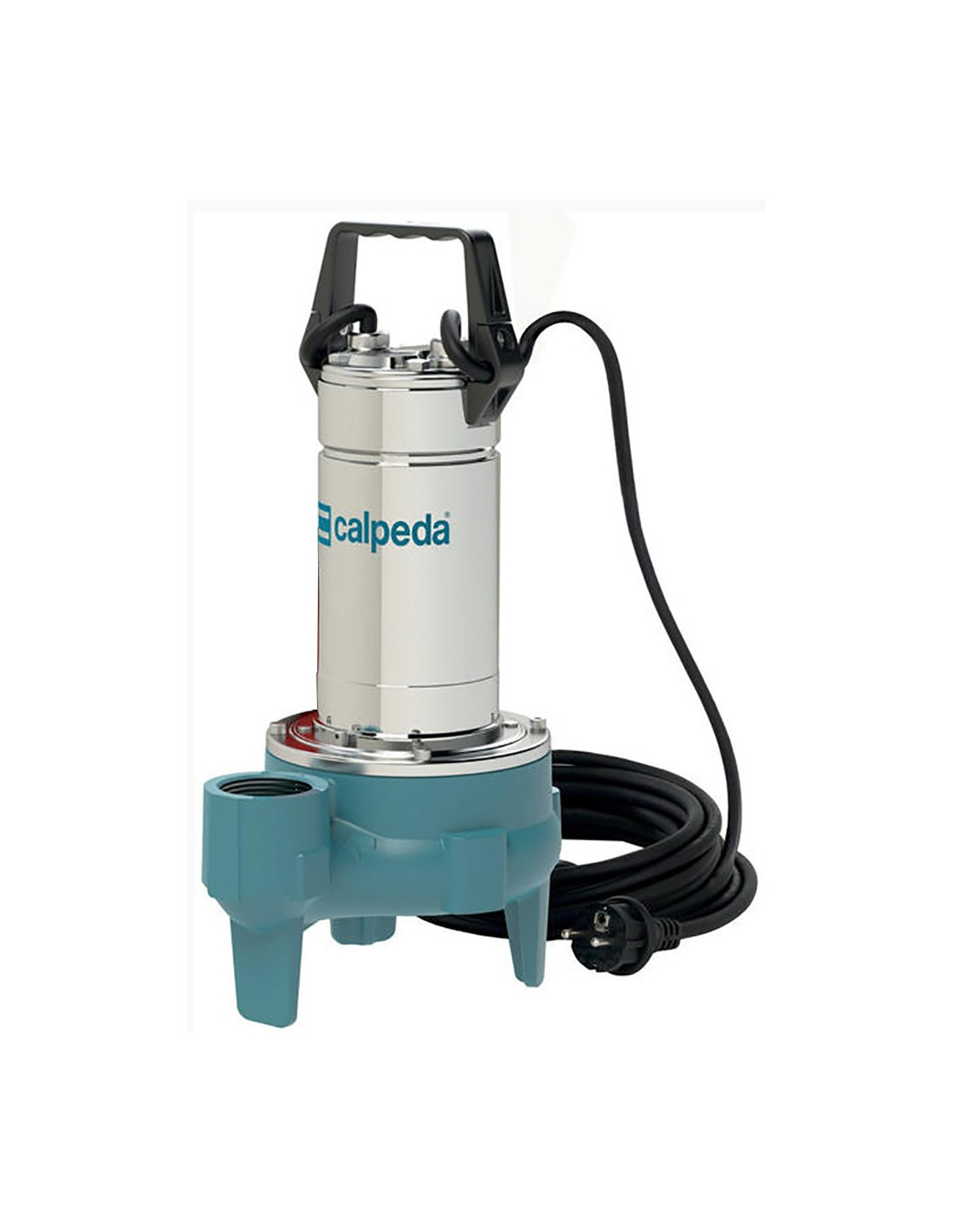

GQS 50-13 lift pump with vortex impeller

Reference 210577

Delivery 2 to 4 days

€752.50

€752.50 tax excl.

Lift pump for waste water, loaded water and rainwater, vortex impeller pump, 50 mm passage, power 1.10 Kw, single-phase with or without float switch and three-phase without float switch.

Voltage

Float

Attributs

Image	Ref.	Voltage	Float	Unit price	Buy
	210577	Monophasé	With	€752.50	Sum.:
	210578	Monophasé	Without	€744.17	Sum.:
	210579	Triphasé	Without	€752.50	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

Lift pump for waste water and loaded water, max. passage 50mm.

Specifications of GQS 50-13 pumps:
- Dry motor 2900 rpm (continuous duty).
- Triple-impregnated moisture-resistant winding.
- Insulation class F - Protection IP X8.
- Thermal protection and capacitor built in on single-phase version.
- Pump body and impeller in cast iron - 303 stainless steel shaft.
- Double mechanical seal in alumina ceramic/hard carbon/NBR in oil chamber.
- Liquid temperature up to + 35°C.
- Immersion depth: Min: 273 mm / Max: 5 metres.
- pH value between 6 and 11.
- Passage in (mm) = 50.

Model	Reference	Power (Kw)	Voltage (V)	Current (A)	Float	Discharge vertical	Weight (Kg)
GQSM 50-13	210577	1.10	230	6.6	With	2" F	20.3
GQSM 50-13 SG	210578		230	6.6	Without	2" F	20.3
GQS 50-13	210579		400	2.3	Without	2" F	18.8

Flow rate	m3/h	0	3	6	9	12	15	18	21	24	27	30	33	36
Flow rate	l/min	0	50	100	150	200	250	300	350	400	450	500	550	600
GQS 50-13	H.M.T (m)	12.8	12.2	11.6	11	10.3	9.5	8.6	7.7	6.7	5.7	4.5	3.3	2

Customs code: 84137081 - Country of origin: Italy
