Vanne à boisseau électrique inox

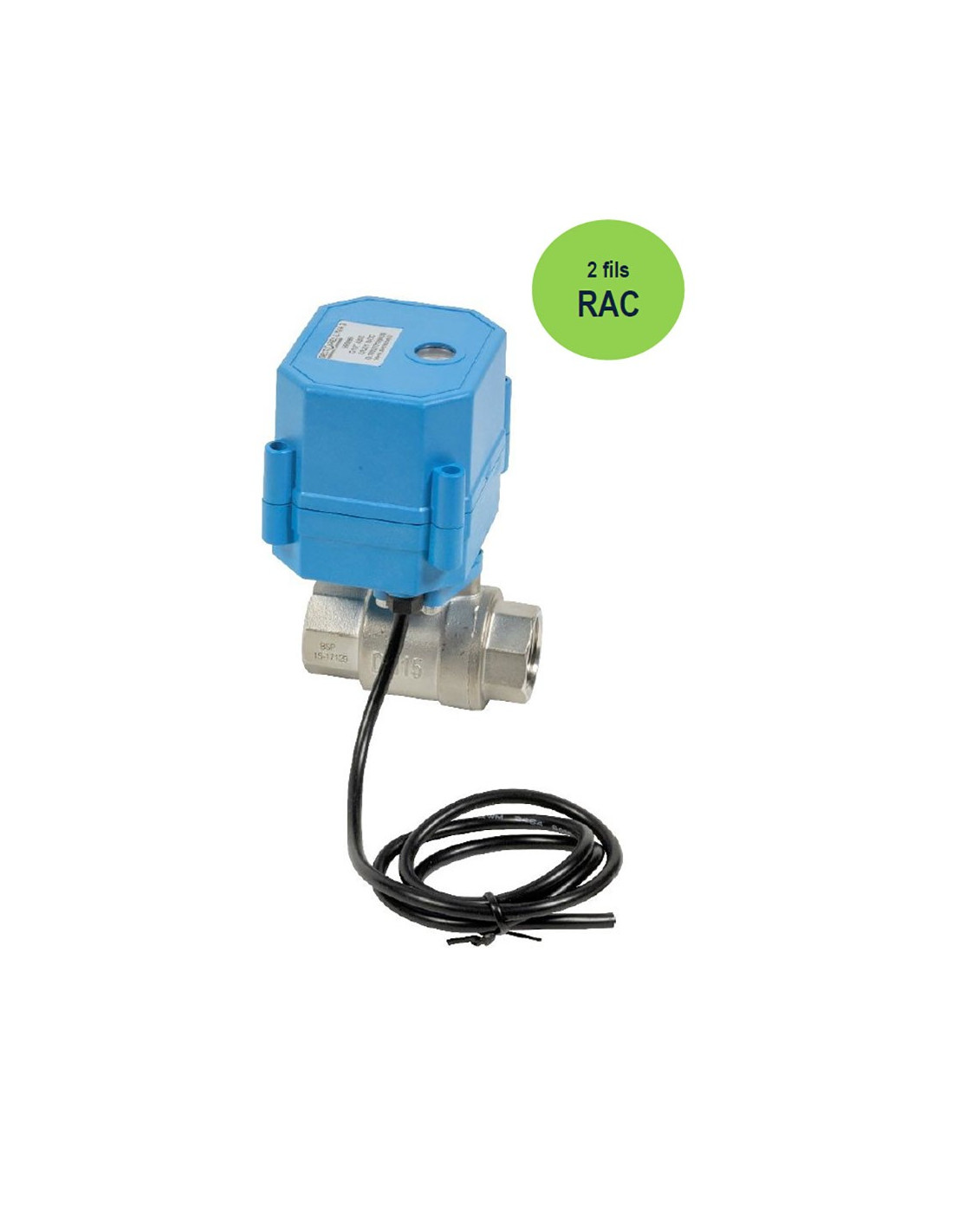

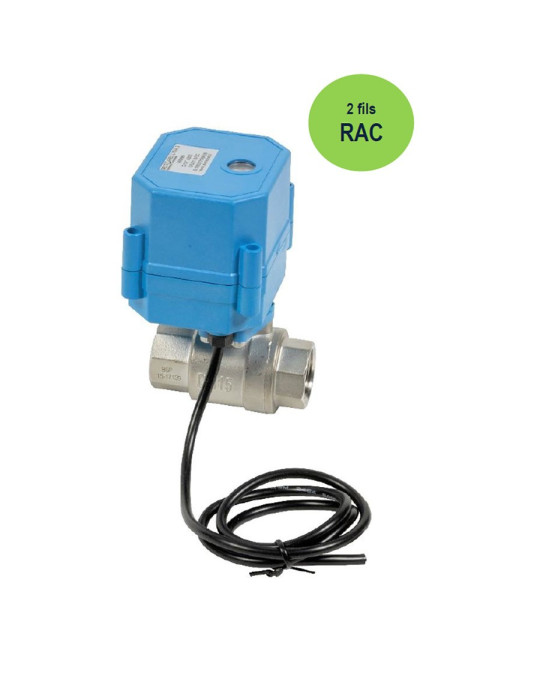

Stainless steel electric ball valve

007108
Delivery 2 to 4 days
$180.63

$180.63 tax excl.

The electric valve is designed for automatic isolation of water pipes, full bore, normally closed at rest, ideal for drinking water networks, rainwater, water treatment, HVAC, industry... 2-wire power supply, voltage 230 VAC, diameter 3/4" and 1".

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
Stainless steel electric ball valve
007109 1"
$209.49
Available
Stainless steel electric ball valve
007108 3/4"
$180.63
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- 316 stainless steel body.
- Stem and sphere in 304 stainless steel.
- PTFE seat.
- EPDM O-ring.
- PPO plastic actuator.
- 2-wire wiring - Automatic return by capacitor (RAC).
- PS: 10 bar.
- TS: 0 °C / + 90 °C.
- PTFE seat.
- Full bore.
- Threaded G connection.
- Position indicator.
- Power cable 50 cm.

Model3/4"1"
Reference 007108 007109
Power supply (V AC) 230
Operation Normally closed
Holding power consumption (VA) 8
Connection 3/4" 1"
Bore (mm) 20 25
Working pressure (bar) 0 - 10
Working temperature (° C) + 90
Diaphragm EPDM
Protection IP 67
Weight (kg) 0.47 0.62
