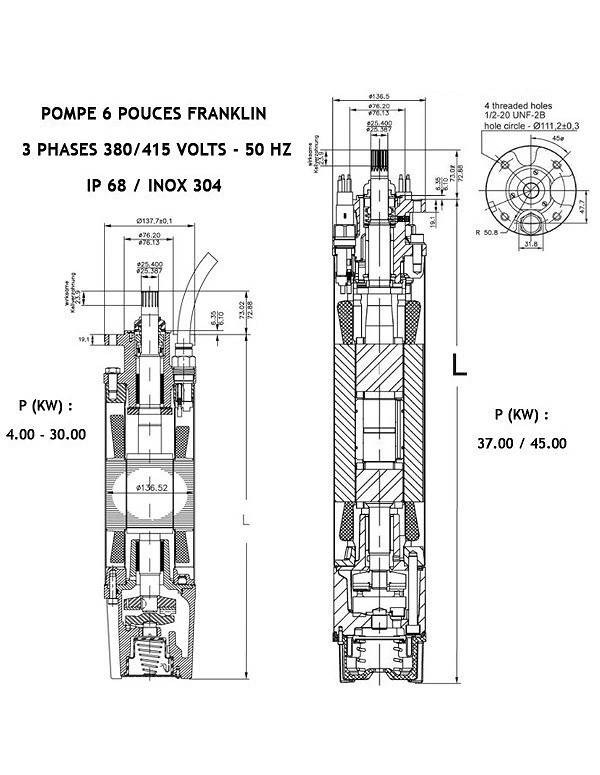

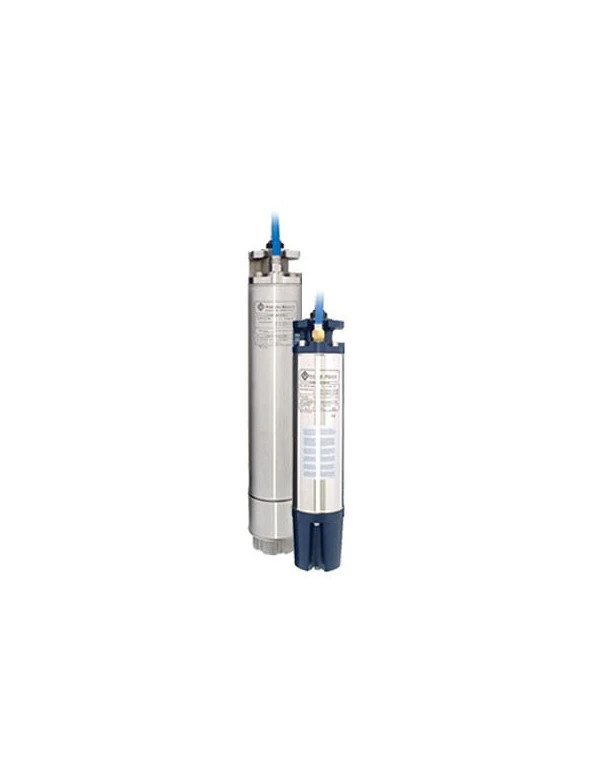

FRANKLIN 6" electrical submersible motor adaptable for hydraulic. This motor are built for be immersed, body pump with a perfect tightness (FIGHTER SAND), resistant excellent to sand and external aggressions. Reinforced windings tight, double flange to facilitate mounting of hydraulic part. Made in stainless steel AISI 304, flange coupling NEMA standard.
| FRANKLIN 6" encapsulated immersed motor - Three phase 400V - 50Hz |
|||||
| Referency | Power (kw) |
Voltage 400V - 50HZ |
In (A) | Lead-in cable (m) |
Leight (Kg) |
| 500 051 | 4.00kw | Three phase | 11 | 3.5 | 41 |
| 500 052 | 5.50kw | Three phase | 13.5 | 3.5 | 41 |
| 500 053 | 7.50kw | Three phase | 18 | 3.5 | 46 |
| 500 054 | 9.30kw | Three phase | 21 | 3.5 | 51 |
| 500 055 | 11.00kw | Three phase | 25.5 | 3.5 | 56 |
| 500 056 | 13.00kw | Three phase | 29.5 | 3.5 | 66 |
| 500 057 | 15.00kw | Three phase | 33 | 3.5 | 66 |
| 500 058 | 18.50kw | Three phase | 40 | 3.5 | 71 |
| 500 059 | 22.00kw | Three phase | 48.5 | 3.5 | 81 |
| 500 060 | 26.00kw | Three phase | 58 | 3.5 | 27.5 |
| 500 061 | 30.00kw | Three phase | 63 | 3.5 | 101 |
| 500 062 | 37.00kw | Three phase | 77.9 | 5 | 116 |
Characteristics Franklin immersed motor 6" :
♦ Delivered with watertight connector + flat cable (lenght in the table above).
♦ Motor lubricated by water.
♦ Coupling the NEMA standard.
♦ Installation in vertical or horizontal position.
♦ Replacement of a broken motor.
