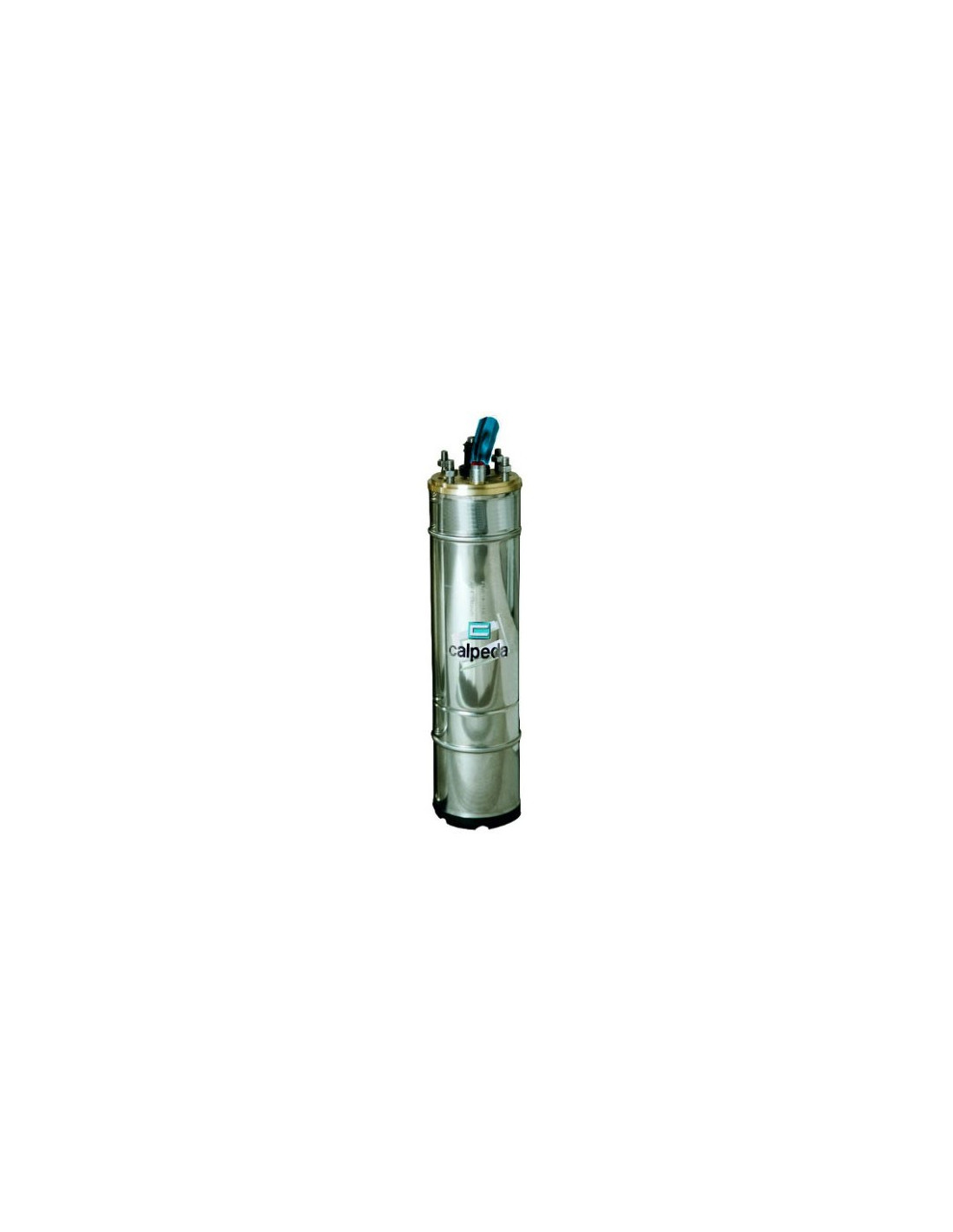

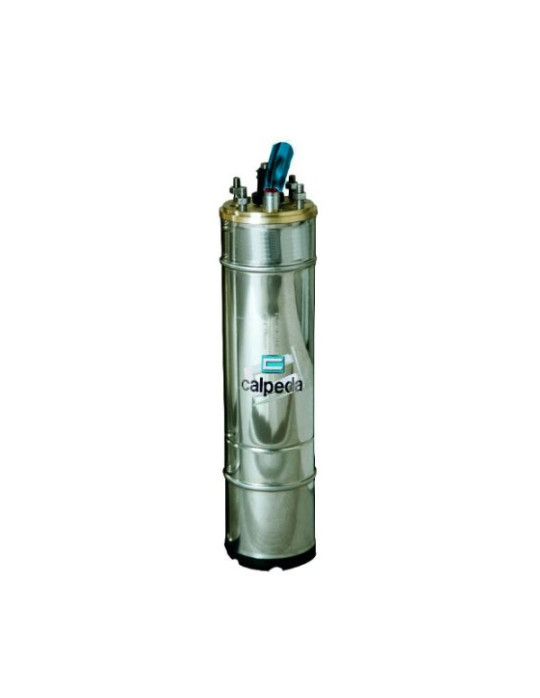

FRANKLIN motor 4" single phase with connector

FRANKLIN motor 4" single phase with connector

500062
Delivery 3 to 5 days
£352.33

£352.33 tax excl.

FRANKLIN 4" submersible motor 230V - 50Hertz with connector for immersed pump. Delivery with connector on lead-in cable to 1.5m.



PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
FRANKLIN motor 4" single phase with connector
500062 0.37 Kw
£352.33
Available
FRANKLIN motor 4" single phase with connector
500063 0.55 Kw
£369.78
Available
FRANKLIN motor 4" single phase with connector
500064 0.75 Kw
£398.38
Available
FRANKLIN motor 4" single phase with connector
500065 1.10 Kw
£424.20
Available
FRANKLIN motor 4" single phase with connector
500066 1.50 Kw
£485.59
Available
FRANKLIN motor 4" single phase with connector
500067 2.20 Kw
£567.22
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

FRANKLIN 4" electrical submersible motor encapsulated. This motor are built for be immersed, equiped to lubricated ball bearings radials & axials for a functioning without maintenance. The motors are filled with specific fluid FES93, for protection against frost until -104°F. A special membrane ensures the pressure compensation in the motor. non-capacitor inclued.

FRANKLIN 4" encapsulated immersed motor - Single phase 230V - 50Hz
Referency Power
(kw)		 µF Voltage
230V - 50HZ
 Lead-in cable (m) In (A) CV
HP		 Leight
(Kg)
500 011 0.37kw 16 Single phase 1.5 3.3 0.50 9
500 012 0.55kw 20 Single phase 1.5 4.3 0.75 10
500 013 0.75kw 30 Single phase 1.5 5.7 1.00 11
500 014 1.10kw 40 Single phase 1.5 8.4 1.50 13
500 015 1.50kw 50 Single phase 1.5 10.7 2.00 14
500 016 2.20kw 70 Single phase 2.5 14.7 3.00 18




Characteristics Franklin immersed motor 4 " :
♦ Delivered with watertight connector + flat cable (lenght in the table above).
♦ Motor lubricated by water.
♦ Coupling the NEMA standard.
♦ Installation in vertical or horizontal position.
♦ Replacement of a broken motor.
