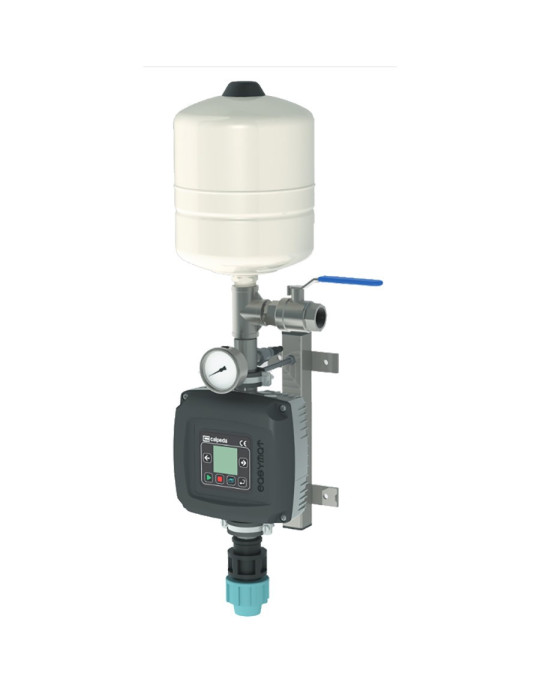

Variable speed drive kit for borehole pump - K-EASYFOR

Compact variable-speed system by frequency regulation for submersible / borehole pump.
Starts the pump when the taps are opened and stops it when they are closed.
Variable flow rate regulation at constant pressure, or fixed-speed operation.
Easy setting directly on the EASYMAT thanks to the LCD screen and scrolling menu.
Protects the pump against: Dry running - Overcurrent - Under or overvoltage.

Limits of use:
+ 50°C - 4 or 8 m3/hour max, depending on model - 10 bar max.
Installation by clamping onto the discharge pipe (the liquid does not pass through the system).

Supplied with the K-ESAYFOR:
- 1 EASYMAT 9.2 MT.
- 1 pressure transmitter 0-10 bar / 4-20mA (wired and connected).
- 1 stainless steel cradle + 1 stainless steel manifold.
- 1 diaphragm tank of 8 L or 24 L.
- 1 oil-filled pressure gauge with stainless steel case.
- 1 stainless steel isolation valve.
- 1 set of stainless steel fittings + 1 stainless steel wall bracket.
- 1 set of cables.
- Supplied mounted and wired.

WARNING: Use of the inverter with 230V three-phase motor.
