Specifications:

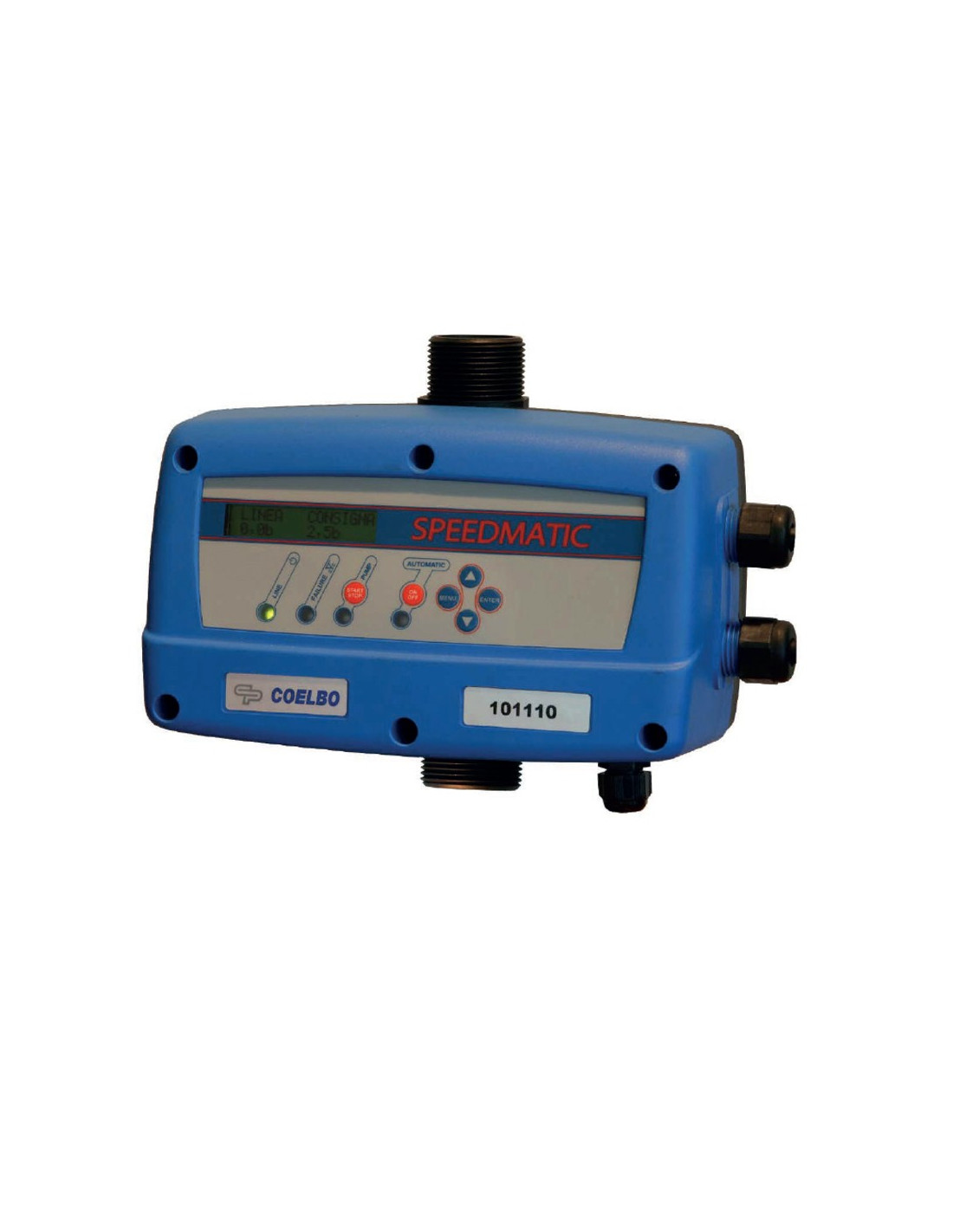

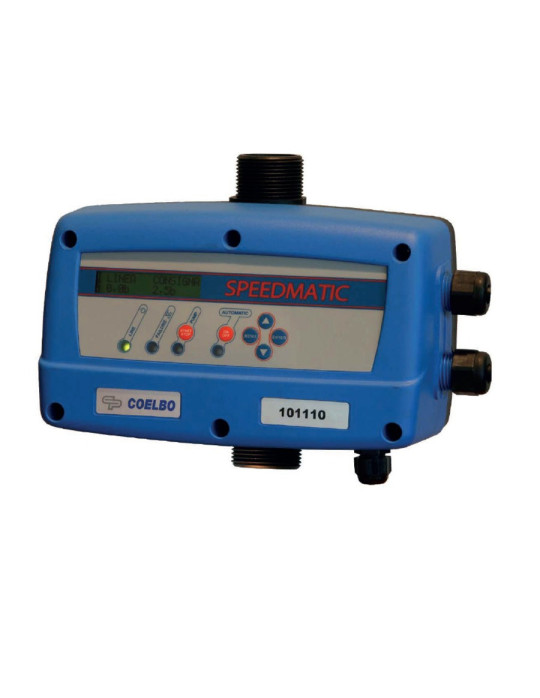

- Frequency inverter for 1 single-phase 230 V or three-phase 230 V pump.
- ART function (Automatic Reset Test): when the inverter detects a lack of water at the suction, the ART system stops the pump and tries, for programmed periods, to restart the pump until the water supply is restored.
- Automatic reset system after an interruption of the electrical supply: the system restarts automatically while keeping the programmed parameters.
- Built-in pressure sensor with digital indicator.

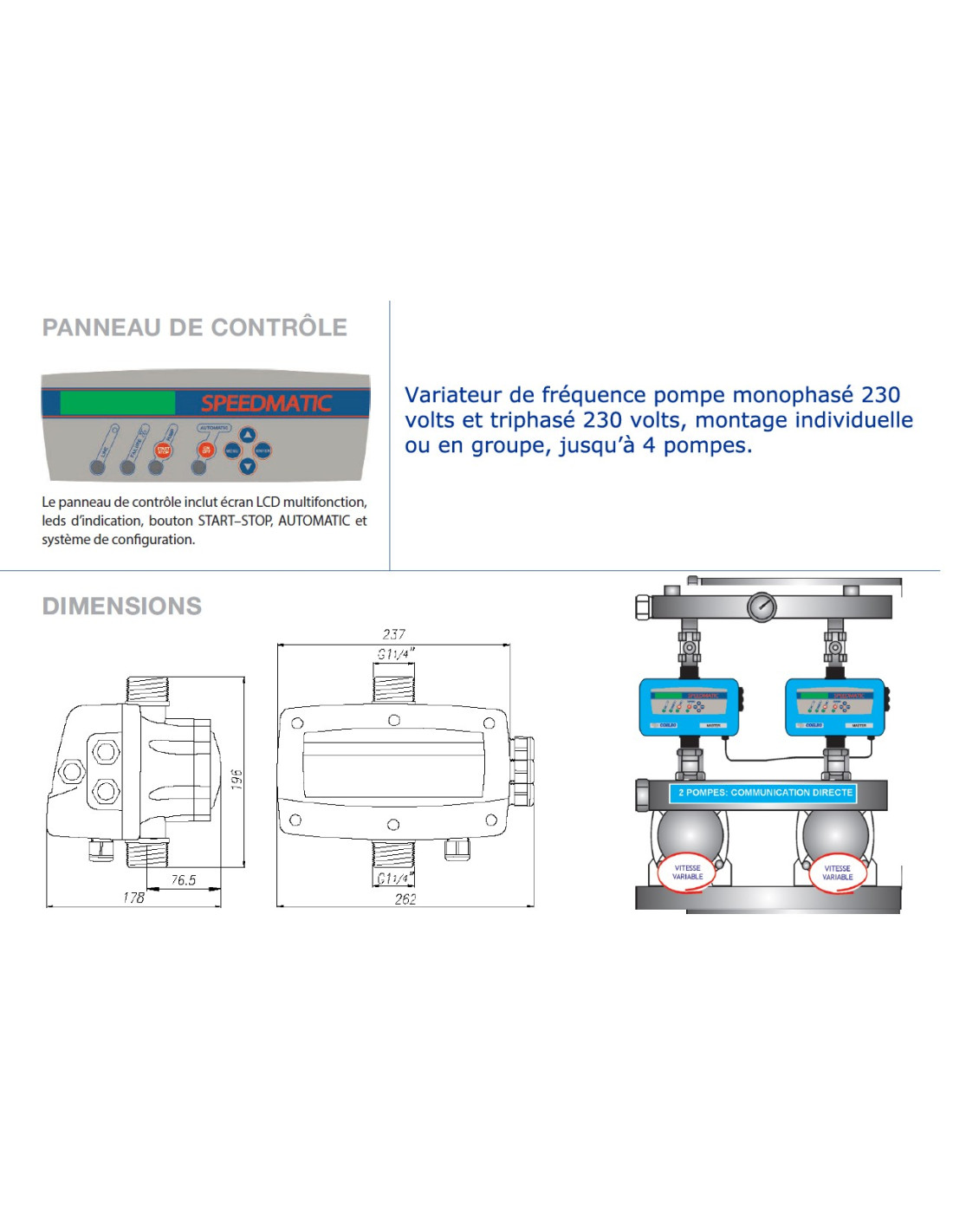

- Control and signalling panel with instant digital reading.
- Current sensor with instant digital reading.
- Screen display of working hours, mains connection, alarm log, with memory since start-up.
- Potential-free changeover contact for alarm monitoring.
- PID intervention possible.
| Model | MASTER 101110 |
|---|---|
| Reference | 009170 |
| Supply voltage (V) | 1 x 230 |
| Output voltage (V) | 1 x 230 - 3 x 230 |
| Max. pump current | 9 A (1 x 230) - 10 A (3 x 230) |
| Frequency (Hz) | 50/60 |
| Max pressure (bar) | 15 |
| Pressure setting (bar) | 0.5 to 12 |
| Max. flow rate (l/h) | 10 000 |
| Protection | IP 55 |
| Max. water temperature (°C) | 40 |
| Max. ambient temperature (°C) | 50 |
| Hydraulic connection | 1" 1/4 |
| Weight (Kg) | 2.5 |
