Armoire de commande avec variateur de vitesse EASY INVERTER-1

Control cabinet with speed controller EASY INVERTER-1

Reference 009179

Delivery 2 to 3 weeks

€1,460.00

€1,460.00 tax excl.

Read the review

Average rating: 10/10 Number of reviews: 1

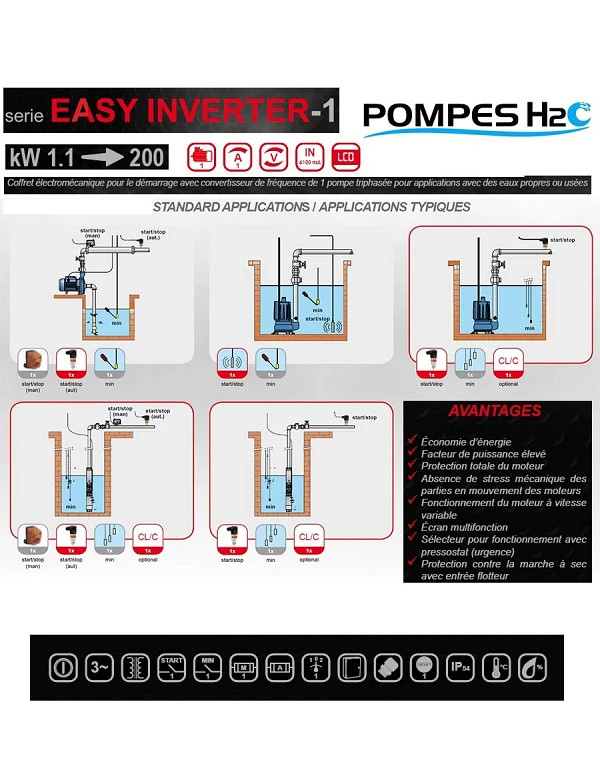

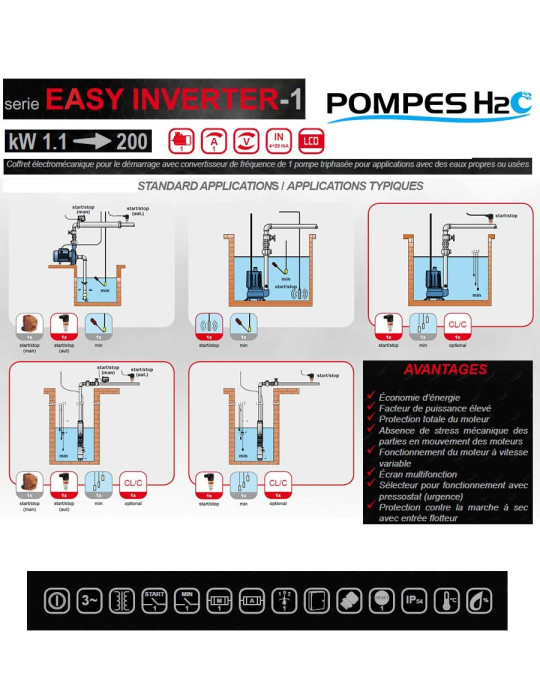

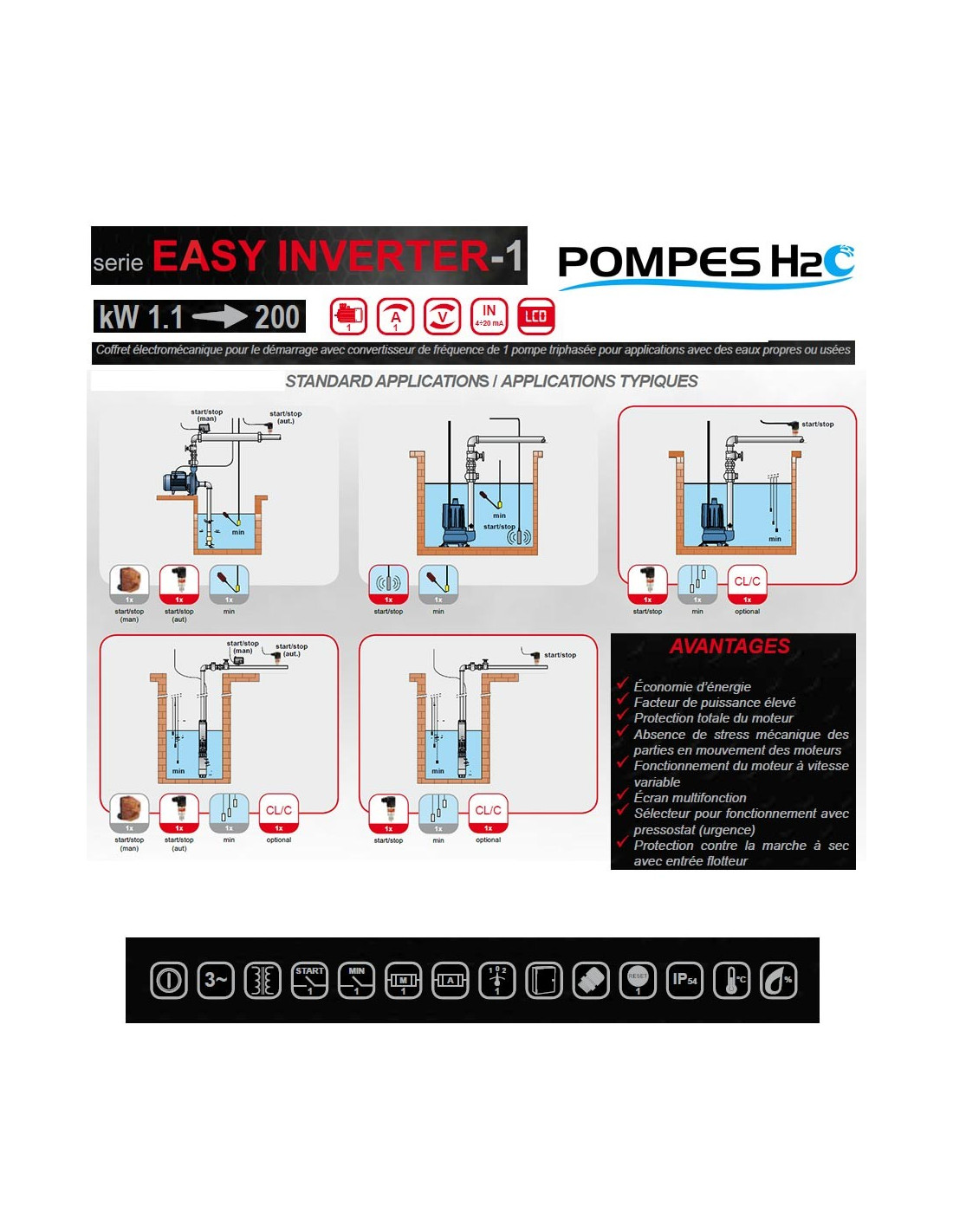

Control and protection cabinet for 1 three-phase surface or submersible pump, use with clean or waste water, built-in frequency converter, variable speed pump operation, no mechanical stress, total motor protection, energy saving, high efficiency, multifunction screen.

Modèles

Attributs

Image	Ref.	Modèles	Unit price	Buy
	009179	(1)	€1,460.00	Sum.:
	009190	(12)	€4,600.83	Sum.:
	009198	(20)	€21,460.00	Sum.:
	009197	(19)	€14,880.00	Sum.:
	009196	(18)	€12,669.17	Sum.:
	009195	(17)	€10,640.00	Sum.:
	009194	(16)	€9,580.00	Sum.:
	009193	(15)	€8,441.67	Sum.:
	009192	(14)	€7,400.00	Sum.:
	009191	(13)	€5,305.83	Sum.:
	009189	(11)	€3,833.33	Sum.:
	009180	(2)	€1,555.00	Sum.:
	009188	(10)	€3,402.50	Sum.:
	009187	(9)	€3,140.00	Sum.:
	009186	(8)	€2,810.83	Sum.:
	009185	(7)	€2,575.00	Sum.:
	009184	(6)	€2,205.00	Sum.:
	009183	(5)	€1,951.67	Sum.:
	009182	(4)	€1,758.33	Sum.:
	009181	(3)	€1,683.33	Sum.:
	009199	(21)	€23,585.00	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

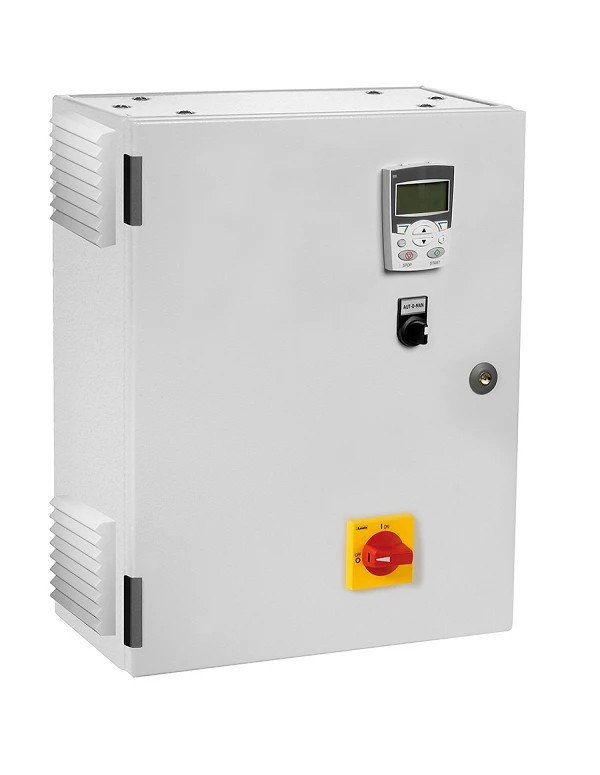

Specifications:
- ABS cabinet, with top and bottom ventilation.
- ABB variable speed drive, with multifunction screen and buttons on the front panel.
- Protection, control and connection.
- Mushroom button "emergency stop".
- ON/OFF isolator on the front panel.
- Selector for operation with pressure switch (emergency).
- Dry-run protection with float switch input.
- Three-phase pump connection.

Model	Reference	Power		Current		Dimensions	Weight
Model	Reference	(Kw)	(HP)	min. (A)	max (A)	(mm)	(Kg)
(1) - EASY 1/1.5	009179	1.1	1.5	1	3.6	530x400x230	16
(2) -EASY 1/2	009180	1.5	2	1.5	4.5
(3) -EASY 1/3	009181	2.2	3	2	6.2
(4) -EASY 1/4	009182	3	4	2.5	8
(5) -EASY 1/5.5	009183	4	5.5	3	9.7
(6) -EASY 1/7.5	009184	5.5	7.5	4	13.8		18
(7) -EASY 1/10	009185	7.5	10	5	17.2		18
(8) -EASY 1/15	009186	11	15	7.5	25.4		20
(9) -EASY 1/20	009187	15	20	10.5	34.1	730x500x280	25
(10) -EASY 1/25	009188	18.5	25	12.5	41.8		25
(11) -EASY 1/30	009189	22	30	14.5	48.4		30
(12) -EASY 1/40	009190	30	40	18	59	1030x800x330	50
(13) -EASY 1/50	009191	40	50	22	72	1030x800x330	50
(14) -EASY 1/60	009192	45	60	30	96	1500x800x530	55
(15) -EASY 1/75	009193	55	75	38	124		80
(16) -EASY 1/100	009194	75	100	48	157		85
(17) -EASY 1/125	009195	92	125	55	180		90
(18) -EASY 1/150	009196	110	150	60	195		100
(19) -EASY 1/180	009197	132	180	75	245	2100x1000x630	150
(20) -EASY 1/220	009198	160	220	90	289		180
(21) -EASY 1/280	009199	200	280	120	368		200

Product Details

Attachments

Easy-Inverter-1

Download (524.06KB)
