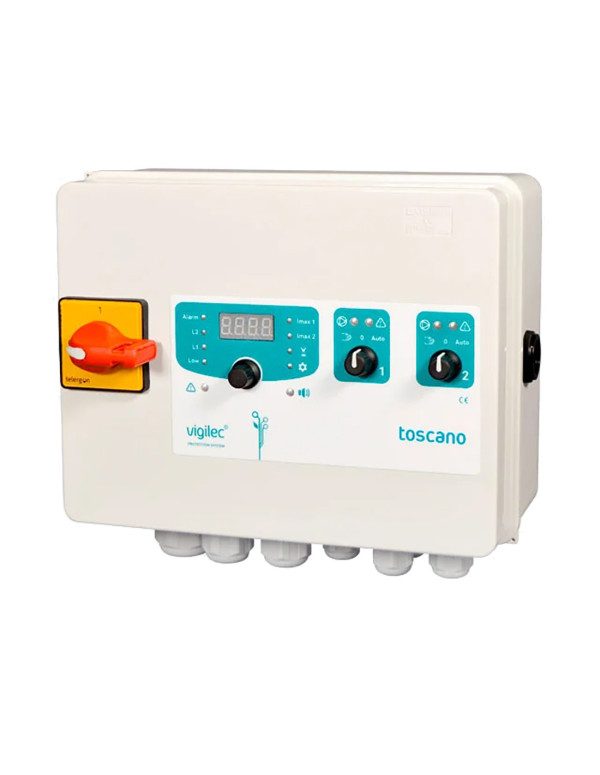

V2B 230/400V control panel for 2 lift pumps

Specifications of the VIGILEC V2B 2-pump lifting panel:
- Automatic cyclic alternation of pumps 1 and 2.

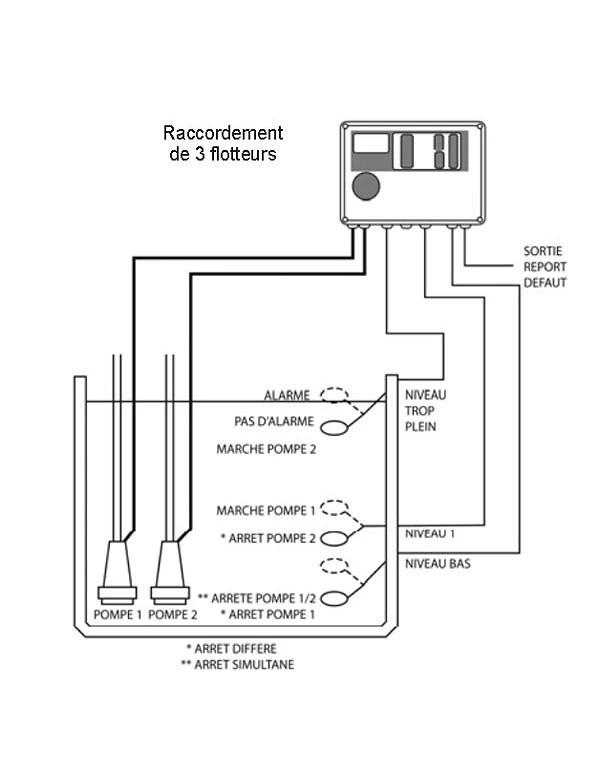

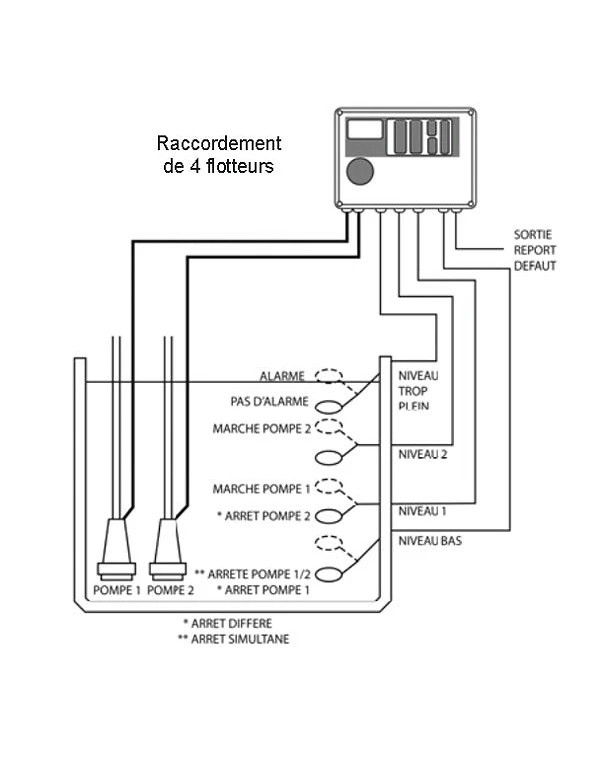

- Level management by 2, 3 or 4 float switches or float level regulators (12Vdc / 50 mA voltage).
- Operating safety in the event of a fault on one of the floats.
- Dry contact output for pump fault reporting.
- Selector for choosing how the pump stops (simultaneous or delayed).
- Audible overflow level alarm.
- SINGLE-phase 230V or THREE-phase 400V supply, (selectable).
- Thermal overload protection potentiometer, adjustable from 1 to 13 A.
- Phase failure protection.
- Low-voltage supply (12 Vdc) for external control devices for increased safety.

Contents of the VIGILEC V2B panel:
- Main isolator switch with mains connection terminals.
- Three-pole fuse holders with calibrated motor protection fuses.
- Contactors with motor connection terminals.
- 3-position operating switch: AUT-O-MAN.
- Indicator lights for POWER ON and OVERFLOW LEVEL.
- Indicator lights for RUN and OVERLOAD.
- Reset button for pump fault (RESET).
- Connection terminal block.
- Cable glands.
- Technical manual.
