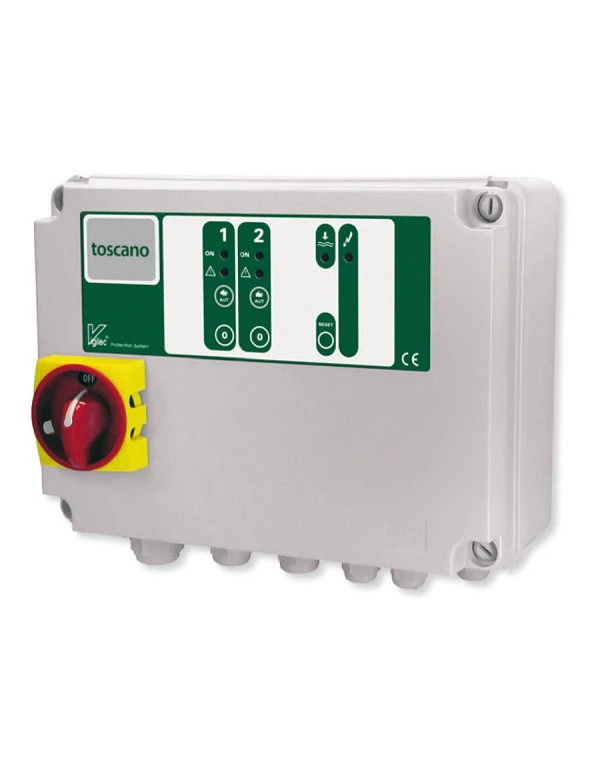

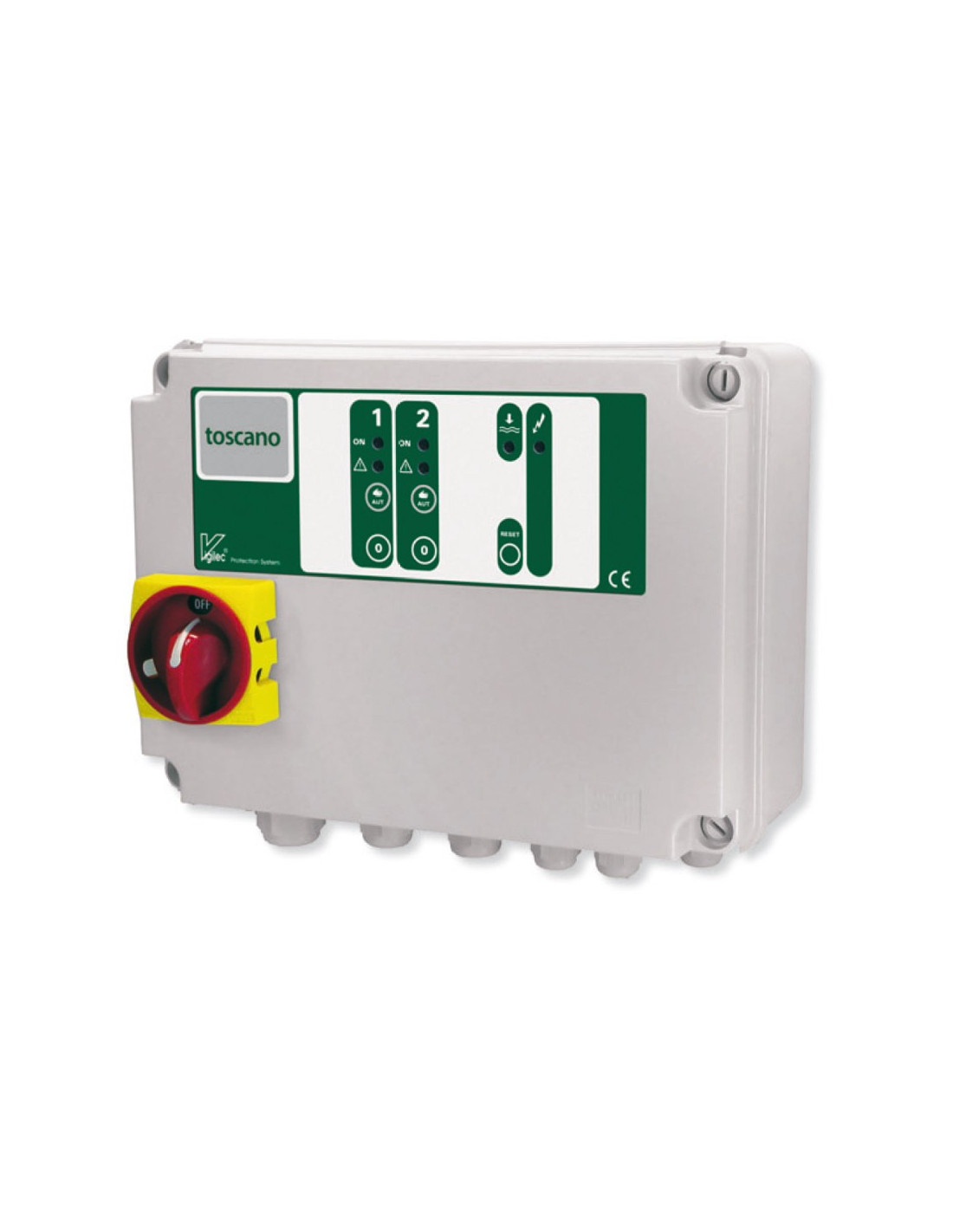

2-pump booster set control and protection panel - V2P-E

 Specifications:
- Automatic cyclic switching of pumps 1 and 2, controlled by 2 pressure switches.
- Dual-voltage control panel, single-phase 230 Vac or three-phase 400 Vac supply.
- Operating safety through automatic start-up of the standby pump in the event of a fault on the pump in service.
- Overcurrent protection.
- Air shortage detection system in the tank.
- Pump anti-seize system.
- Motor protection against two-phase operation.
- Main isolator with connection terminals.
- Short-circuit protection fuses.
- Power contactors with motor connection terminals.
- MAN-0-AUT operating key.
- Voltage and lack of water LEDs.
- Running and overload LEDs for each pump.
- RESET key for pump fault.
- Built-in suction water level control by probe (min/max) or by float.
- Remote control by potential-free contact or 6 to 400 Vac/Vdc voltage.
- Potential-free remote reports for signalling or tripping alarms.
- Low voltage (12 Vdc) supply for the external control devices, for increased safety.
- Connection cable glands.
