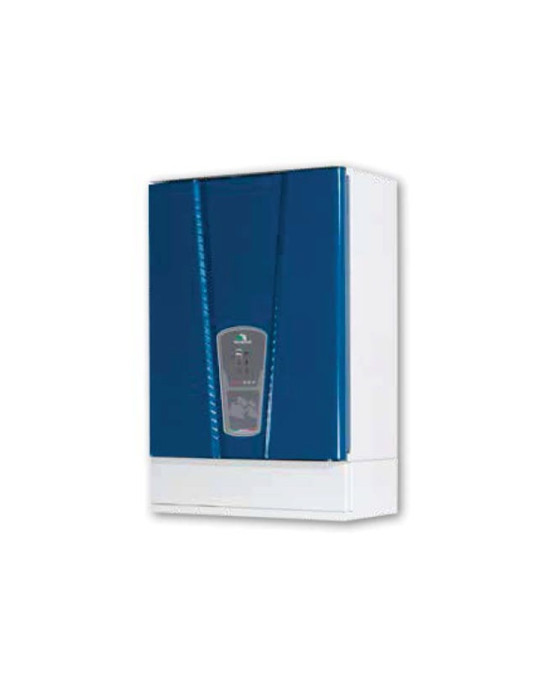

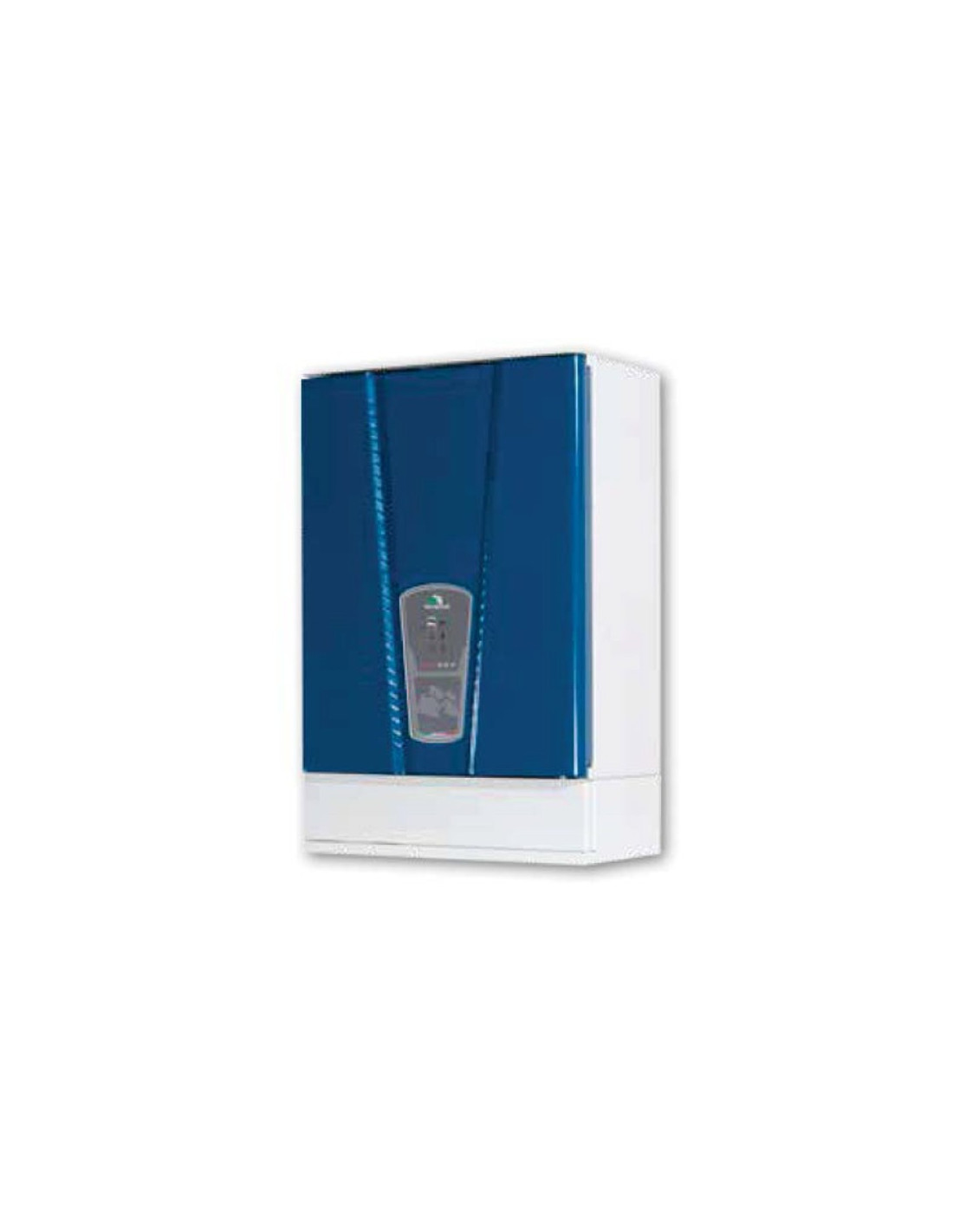

Enerbox 2100 VA backup power supply

Explanation:

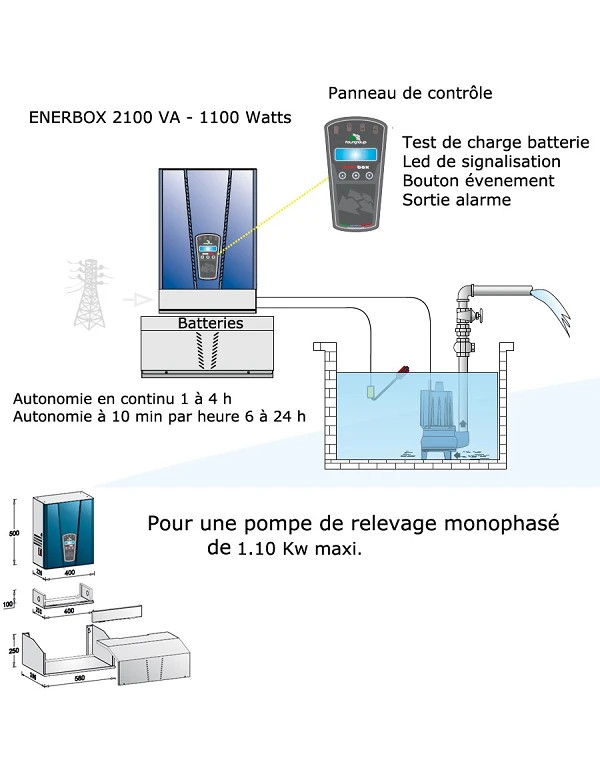

- The Enerbox 2100 is a rectifier and inverter, supplied with single-phase 230 V; the batteries store the rectified current, stepped down to 12 volts.  If the mains supply fails, they release the stored energy, which is inverted and stepped up to 230 volts single-phase, maximum pump power 1100 w.

- The autonomy required in the event of a mains failure (power cut) must be at least 1 or 2 hours (in operation), in the event of rain, the pump runs for 1 minute every 6 minutes (approximately 10 minutes per hour).

Calculation of the catchment area in m² :
This is the sum of all the surfaces (terrace, roof, garage ramp, cellar, garage...) + other wet surfaces in m² = total catchment area in m².
Example: Roof of 120 m² + garage ramp 20 m² + 10 m2 of wet area, = 150 m²

Calculation of the pump flow rate in l/min:
This is the result of multiplying (catchment areas + 20% head losses) x 1.5 (K coefficient)
Example : Total area 150 m² + 20 % x 1.5 = 270 l/min

Specifications:
- ENERBOX 2100 supply, single-phase 230 V+/- 10 % 50 Hz.
- Battery voltage 24 Vdc or 36 Vdc.
- ENERBOX 2100 output, single-phase 230 V+/- 10 % 50 Hz.
- Prepared for one or two pumps.
- Pseudo-sinusoidal output wave (when running on battery).
- Efficiency 95%.
- Built-in GSM module.
- Automatic battery charger.
- STOP function when the battery voltage is depleted.
- Blue LED, output line power present and inverter running.
- Green LED, battery charged.
- White LED, battery charging.
- Red LED, battery depleted.
- Battery charge test button.
- Auxiliary protection fuse.
- Battery charger fuse.
- Battery fuse.
- Reverse polarity protection.
- Overload protection.
- Short-circuit protection.
- Overheating protection.
- Protection against reverse battery polarity.
- Control input contact, for float switch, start/stop, automatic pump operation.
- Alarm contact 12 Vdc (max 300 mA).
- Emergency stop switch.
- Multilingual installation.
- Output with cable support.
- Removable door.
- Box painted with epoxy.
- IP 31 protection.
- Operating temperature from -5 to + 40 °C, with maximum humidity 50% (non-condensing).

Composition:
- The Enerbox 2100 (reference 008141) is supplied alone, without battery.
- The Enerbox 2100, 1h00 and 2h00, are supplied with battery, battery cables, battery support and cable cover finishing accessory.

Options:
- DARK 1 box, for a lift pump with 2 float switches.
- DARK 2 box, for two lift pumps, with 3 float switches.

Reminder : * In the event of rain, the pump runs for 1 minute every 6 minutes (approximately 10 minutes per hour).
