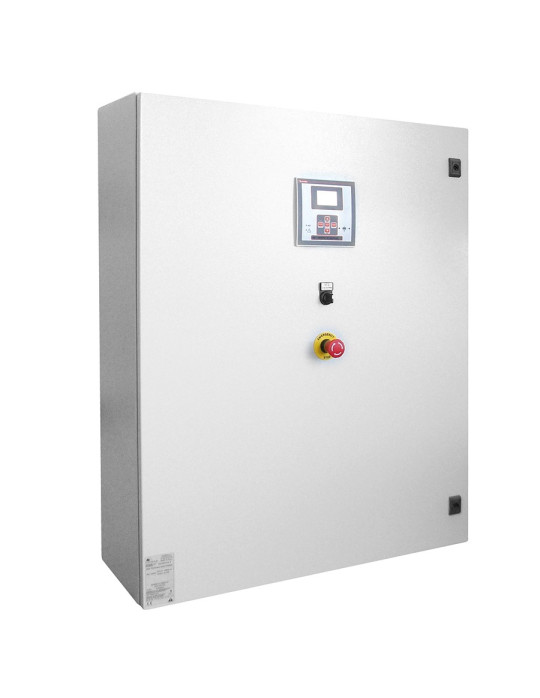

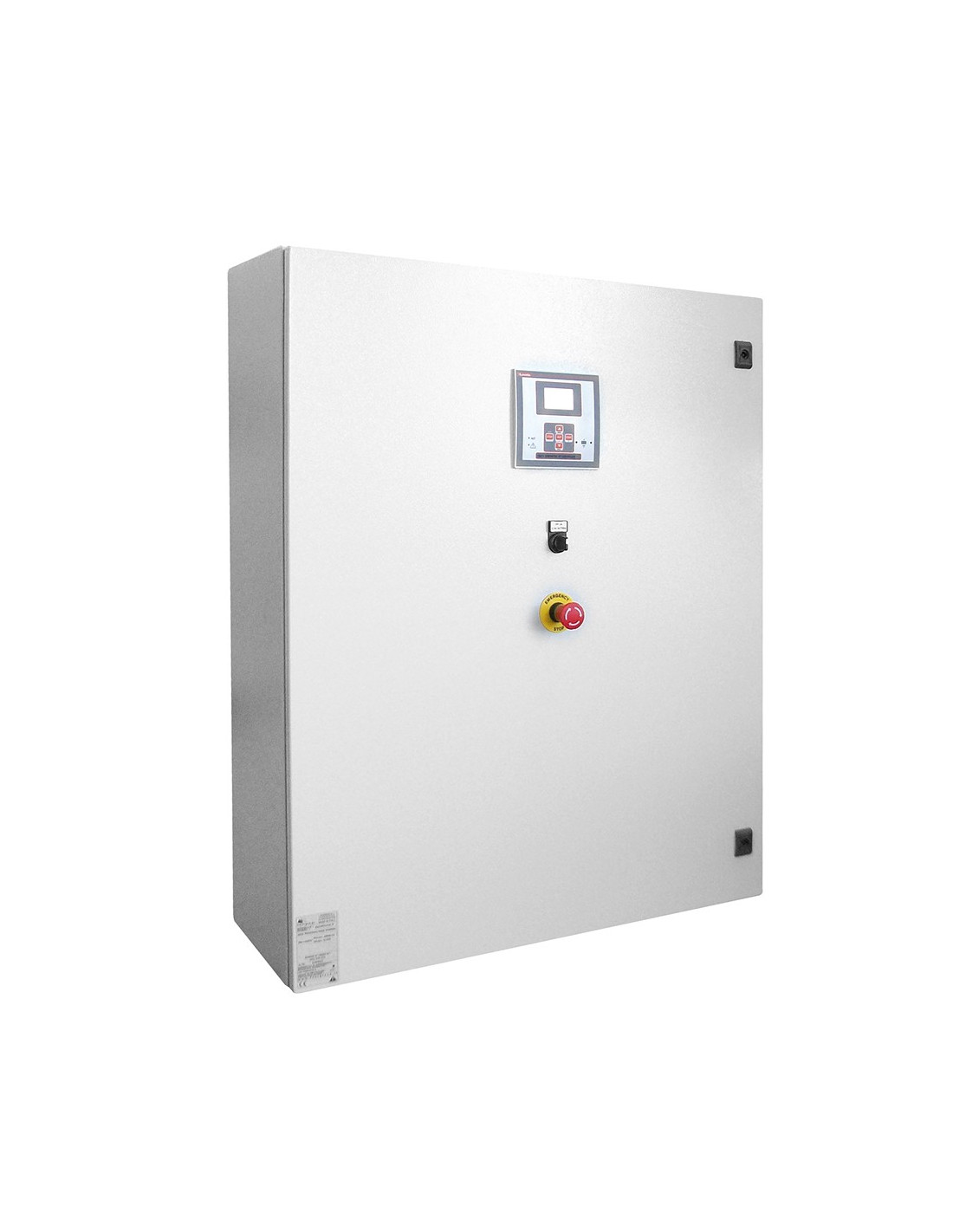

If the mains voltage fails, the SENTINEL control panel starts the generator set and automatically switches the source from the mains to the generator. When the mains supply is restored, the SENTINEL control panel automatically switches the source from the generator to the mains.
Specifications:
- Mains supply: 3 Ph+N 400V 50-60 Hz (+/- 10%) or 1 Ph+N 230V - 50-60 Hz (+/- 10%).
- Generator supply: 3 Ph+N 400V 50-60 Hz (+/- 10%) or 1 Ph+N 230V - 50-60 Hz (+/- 10%).
- User output: 3 Ph+N 400V 50-60 Hz (+/- 10%) or 1 Ph+N 230V - 50-60 Hz (+/- 10%).
- Suitable for petrol or diesel generator sets.
- CAM-333 microprocessor-based electronic unit, engine protection with automatic fault monitoring, message on screen, maintenance indication, clock for programming generator set start or stop, remote control with the option of using GSM mode, parameter programming (threshold, times, counts...), weekly self-test.
- Ammeter transformer for current reading.
- BUS interface.
- 230 V heater function.
- Emergency stop mushroom button.
- Intelligent microprocessor-based battery charger.
- Generator set battery input.
- Signal + alternator input.
- Alarm input (low fuel, oil pressure and engine temperature).
- Control outputs (engine start, engine stop).
- Auxiliary protection fuses.
- Dip-switch for setting automatic operation, for mains failure or external contact.
- Mains/generator set telecommunication.
- Device for keeping the generator set battery charged.
- Protection rating IP55.
| Model | Reference | 230V 1~ KVA (Max) | 230V 1~ A (Max) | 400V 3N~ KVA (Max) | 400V 3N~ A (Max) | Weight (Kg) |
|---|---|---|---|---|---|---|
| SENTINEL (2) | 422007 | 11 | 50 | 22 | 35 | 20 |
| SENTINEL (3) |
422008 | 16 | 72 | 31 | 45 | 21 |
| SENTINEL (4) |
422009 | 22 | 96 | 41 | 60 | 21 |
| SENTINEL (5) |
422010 | 33 | 144 | 61 | 90 | 34 |
| SENTINEL (6) |
422011 | 40 | 176 | 75 | 110 | 34 |
| SENTINEL (7) |
422012 | 46 | 200 | 85 | 125 | 34 |
| SENTINEL (8) | 422013 | - | - | 110 | 160 | 46 |
| SENTINEL (9) | 422014 | - | - | 138 | 200 | 46 |
| SENTINEL (10) | 422015 | - | - | 170 | 250 | 47 |
| SENTINEL (11) | 422016 | - | - | 217 | 315 | 51 |
| SENTINEL (12) | 422017 | - | - | 275 | 400 | 55 |
| SENTINEL (13) | 422018 | - | - | 435 | 630 | 79 |
| SENTINEL (14) | 422019 | - | - | 550 | 800 | 120 |
| SENTINEL (15) | 422020 | - | - | 690 | 1000 | 160 |
| SENTINEL (16) | 422021 | - | - | 860 | 1250 | 165 |
| SENTINEL (17) | 422022 | - | - | 1100 | 1600 | 170 |
