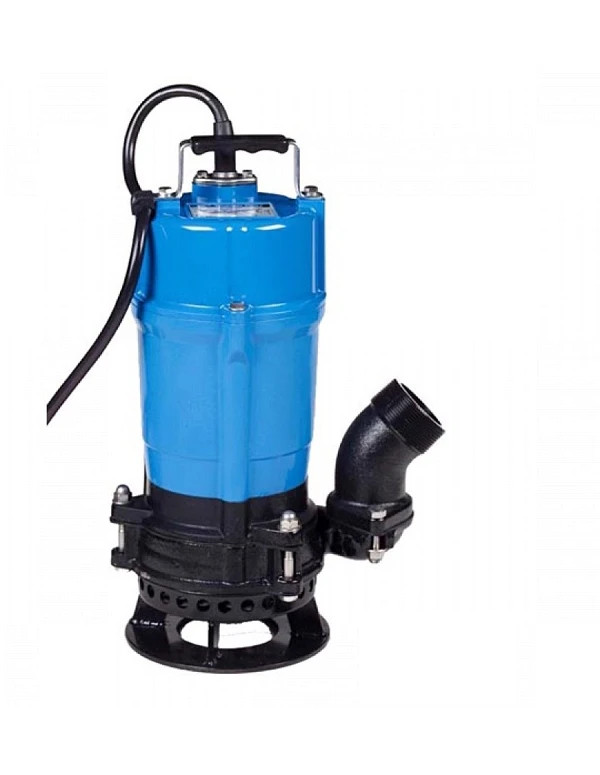

Portable sludge pump with agitator Tsurumi HSD2-55S

215312
Delivery 2 to 4 days
€1,376.67

€1,376.67 tax excl.

Pumping of water loaded with sand, mud and thick suspended matter, thanks to the agitator which stirs the fluid, very good abrasion resistance, semi-vortex impeller and agitator made of chrome cast iron, double mechanical seal, dry running.

Description

Applications:
- Lifting of site water loaded with sludge, sand, bentonite.

Specifications:
- Semi-vortex chrome cast iron impeller.
- Body in EN-GJS-700-2 ductile iron.
- Shaft in stainless steel EN-X6Cr13.
- Aluminium alloy pump body.
- Sealed by double silicon carbide mechanical seal, oil bath.
- Sealed ball bearings.
- Motor: Insulation class E.
- Induction motor, 2 poles, IP68.
- Built-in motor thermal protection.
- Lubrication: Hydraulic oil (ISO VG32).
- H07RN-F electric cable, 10 metres.
- Fluid temperature: 0-40°C.
- Discharge type: Threaded outlet/Serrated hose tail.

 Model HSD2.55S
Reference 215312
Power (Kw) 0.55
Voltage (V) 230 - single-phase
Current (A) 3.6
Max flow rate (l/min) 220
Max. head (m) 13.2
Threaded / serrated discharge (mm) 50 (2")
Particle size (mm) 10
Dimension d (mm) 50
Dimension A (mm) 234
Dimension A1 (mm) 200
Dimension B (mm) 171
Dimension B1 (mm) 97
Dimension D (mm) 162
Dimension H (mm) 421
Dimension W1 (mm) 105
Weight (Kg) 15.0
