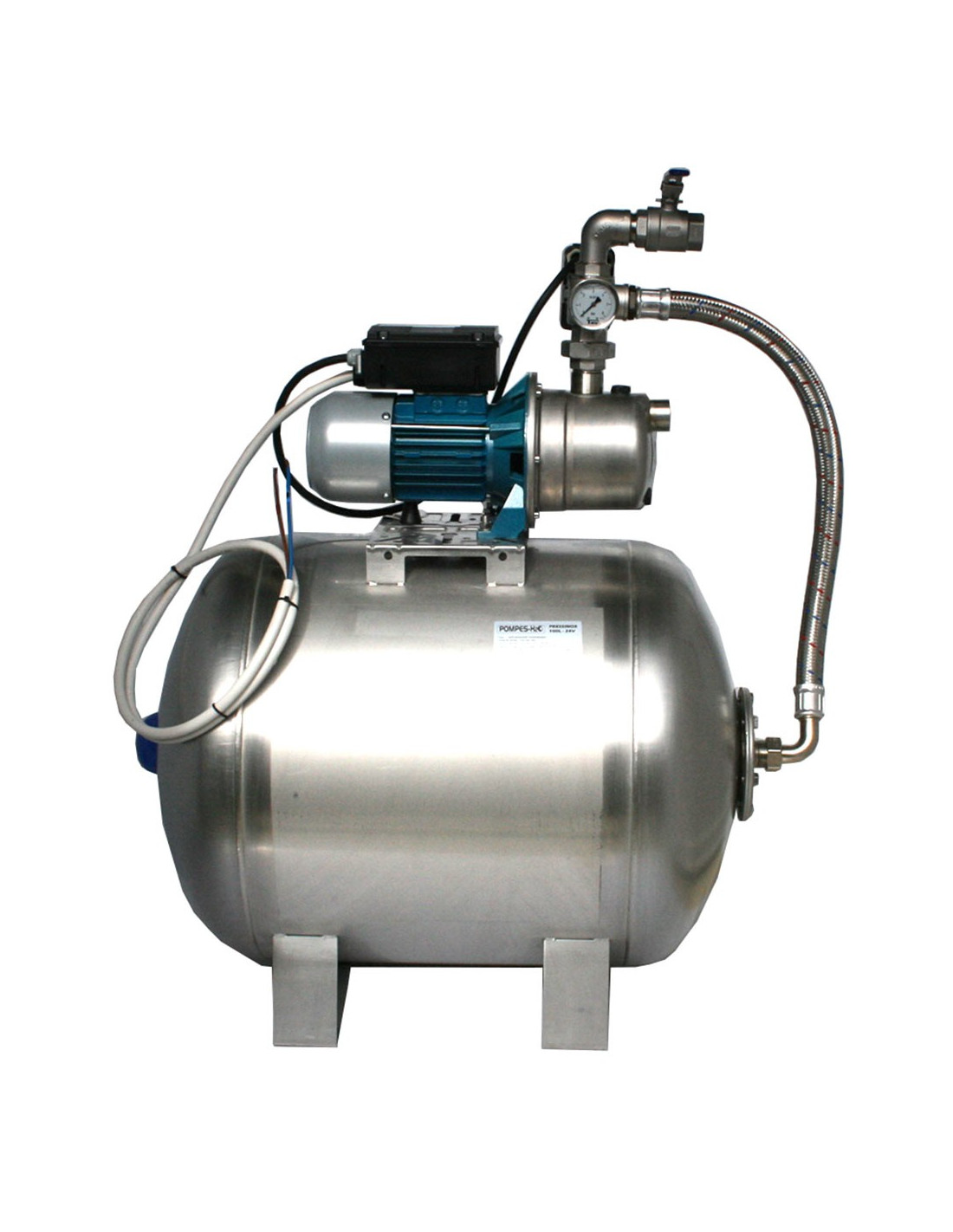

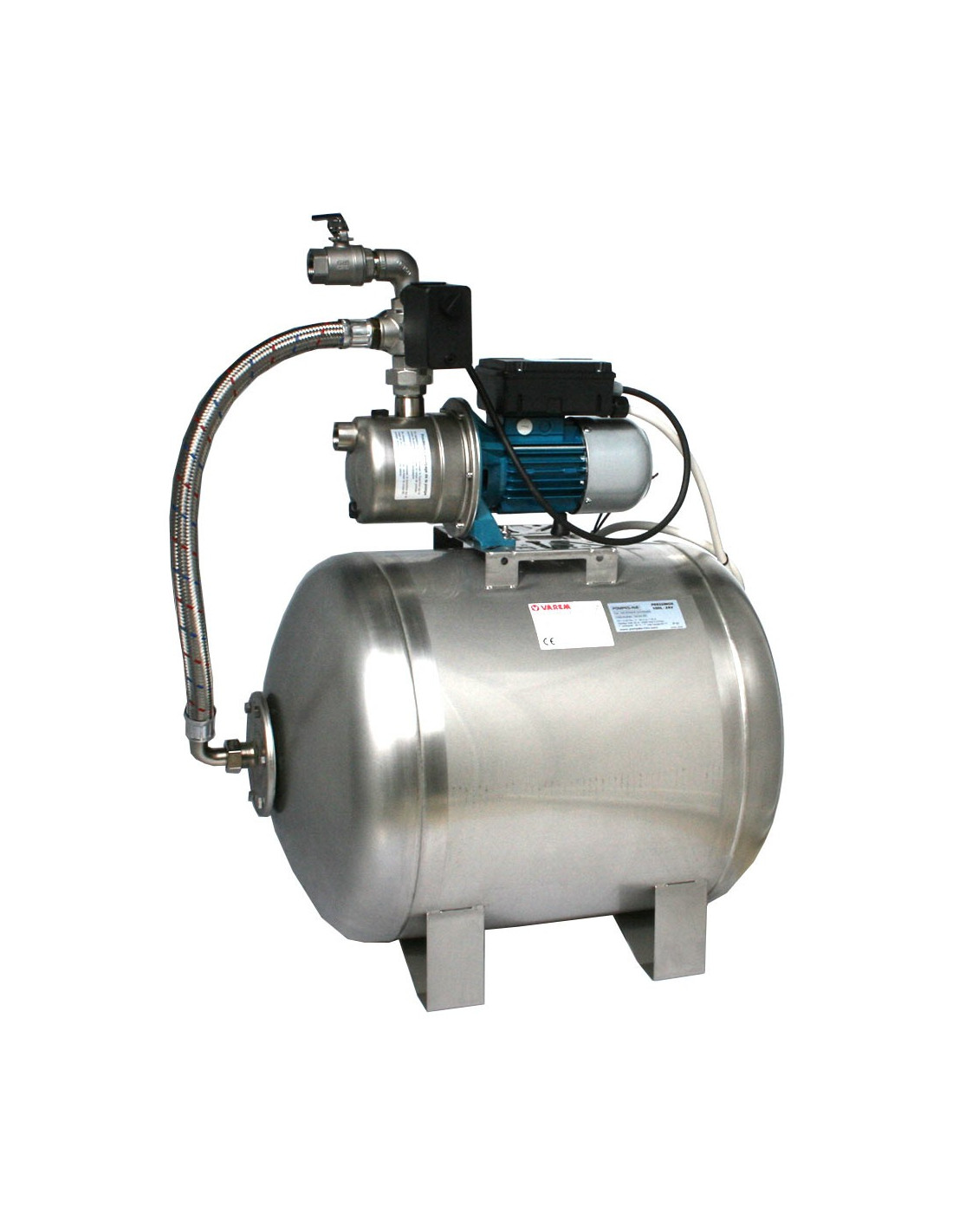

PRESSINOX 100 L 24V booster set

Ideal for supplying a home not connected to the public network, for use as a stand-alone distribution unit, and for mobile applications on equipped vehicles. High self-priming capacity up to 8m.

Use:
- Suction and transfer of drinking water, well water, water from watercourses, rainwater.
- Water suction, also in the presence of dissolved air, slightly aggressive water.
- Stand-alone booster set for a site not connected to the public water network.

Specifications:
- JET ECC electric pump 12 Volts or 24 Volts.
- Pump body & shaft in Aisi 304 stainless steel.
- Mechanical seal sealing.
- Maximum pressure: 3 bar.
- Pressure switch pre-set 1.4 - 2.8 bar.

Composition of the PRESSINOX 100 unit:
- 1 304 stainless steel bladder pressure tank, horizontal, 100 L.
- 1 JET self-priming electric pump.
- 1 XMP Telemecanique pressure switch 0-6 bar.
- 1 axial pressure gauge 0-6 bar, stainless steel case and glycerine bath.
- 1 M/F 1" stainless steel connecting hose, length 800mm, 304 stainless steel.
- 1 M/F 1" ball valve, 316 stainless steel.
- 1 1" elbow, 316 stainless steel.
- 1 316 stainless steel multi-way non-return valve.
- A2 and A4 stainless steel screws and fixings.
- Power cable, HO7RN-F 3G6 m, length 2 m.
- Assembly and setting in the workshop.
