CALPEDA 4SDFM 22 stainless steel 4" borehole pump - 230V - 2.5 m3/h

504253
Delivery 2 to 4 days
$743.00

$743.00 tax excl.

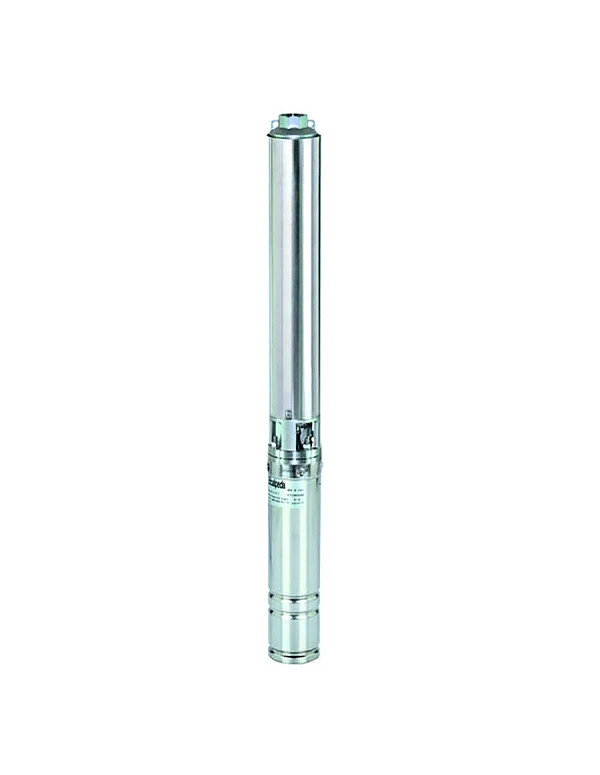

Calpeda 4SDFM 22 stainless steel borehole pump 4" with a flow to 2.5 m3/h. Is a stainless steel submersible pump DN100 designed for drilling in pumping and deep wells. NEMA standard. Power from 0.37 kw to 2.20 kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
CALPEDA 4SDFM 22 stainless steel 4" borehole pump - 230V - 2.5 m3/h
504253 0.37 Kw
$743.00
Available
CALPEDA 4SDFM 22 stainless steel 4" borehole pump - 230V - 2.5 m3/h
504254 0.37 Kw
$787.69
Available
CALPEDA 4SDFM 22 stainless steel 4" borehole pump - 230V - 2.5 m3/h
504255 0.55 Kw
$840.76
Available
CALPEDA 4SDFM 22 stainless steel 4" borehole pump - 230V - 2.5 m3/h
504256 0.75 Kw
$921.77
Available
CALPEDA 4SDFM 22 stainless steel 4" borehole pump - 230V - 2.5 m3/h
504257 1.10 Kw
$1,084.71
Available
CALPEDA 4SDFM 22 stainless steel 4" borehole pump - 230V - 2.5 m3/h
504258 1.50 Kw
$1,402.20
Available
CALPEDA 4SDFM 22 stainless steel 4" borehole pump - 230V - 2.5 m3/h
504259 2.20 Kw
$1,732.74
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Delivered with :
- In-built non-return valve
- Sarter set

Characteristics of CALPEDA 4SDFM 22 submersible borehole pump 4 inches
 Model Reference Power
(kw)		 Intensity
(A)
 Voltage
230 (V)		 Stages
(nombre)
4SDFM 22/4
 504253 0.37 3.2 Single-phase

 4
4SDFM 22/7
 504254 0.37 3.2 7
4SDFM 22/10
 504255 0.55 4.0  10
4SDFM 22/14
 504256 0.75 5.6 14
4SDFM 22/18
 504257 1.10 8.4 18
4SDSM 22/21
 504258 1.10 8.4 21
4SDFM 22/28
 504259 1.50 11.2 28
4SDFM 22/35
 504260 2.20 14.7 35
4SDFM 22/42 504261 2.20 14.7 42





Flow rate of 4SDFM 22 pump - Discharge heighter
Flow m3/h  0.3  0.6 0.9  1.2  1.5 1.8 2.4 3 3.3
l/min 5 10 15 20 25 30 40 50 55

22/4
Total
discharge
height in meter


 25.8 25.2 24.3 23.1 21.6 19.8 15.5 10.3 7.4
22/7 45.1 44 42.5 40.4 37.8 34.7 27.1 18 13
22/10 64.4 62.9 60.7 57.7 54 49.6 38.8 25.8 18.5
22/14 90.2 88.1 84.9 80.8 75.6 69.5 54.3 36.1 25.9
22/18 116 113 109 104 97.2 81.3 69.8 46.4 33.4
22/21 135 132 127 121 113 104 81.4 54.1 38.9
22/28 180 176 170 162 151 139 109 72.2 51.9
22/35 225 220 212 202 189 174 136 90.2 64.9
22/42 271 264 255 242 227 208 163 108 77.8
