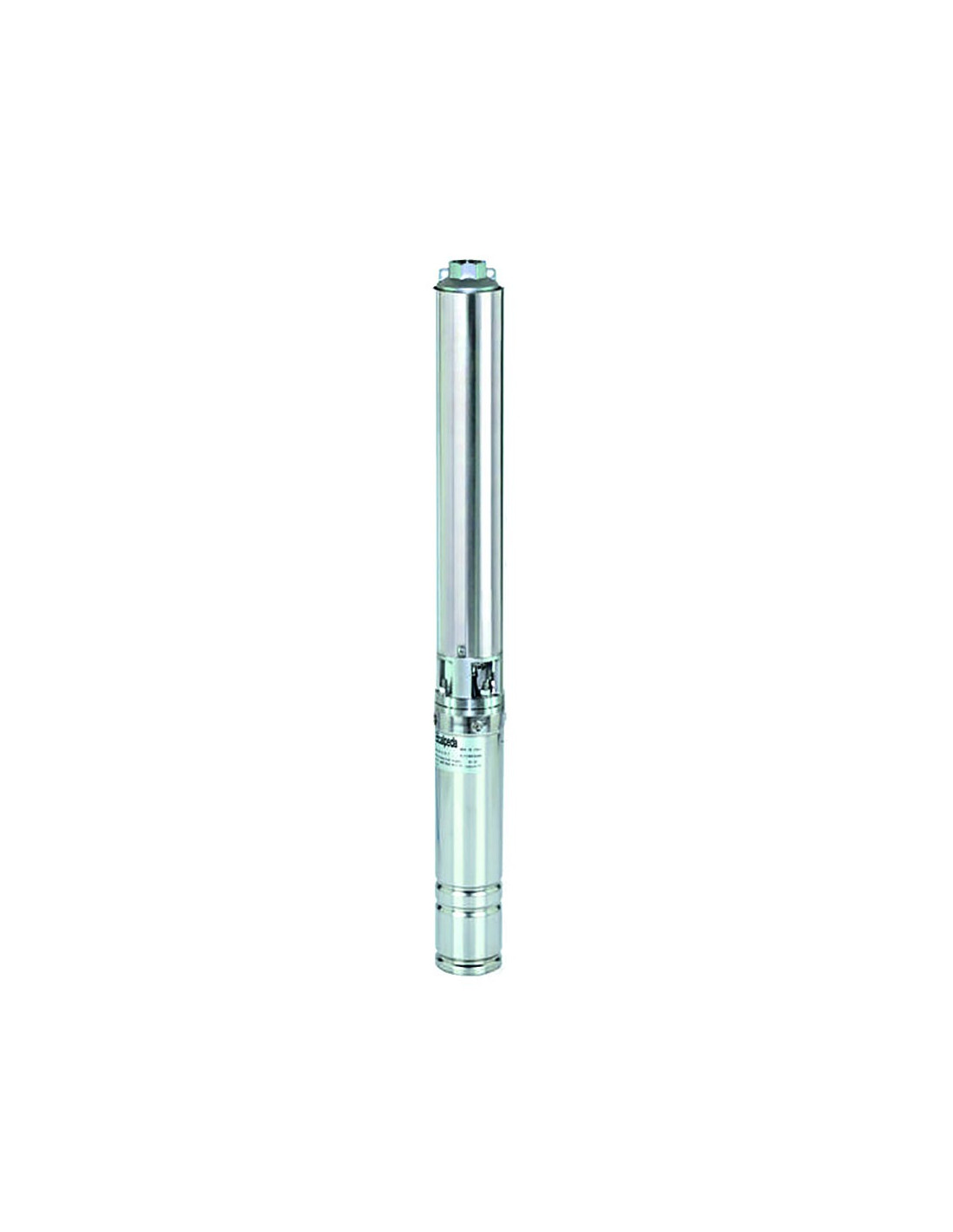

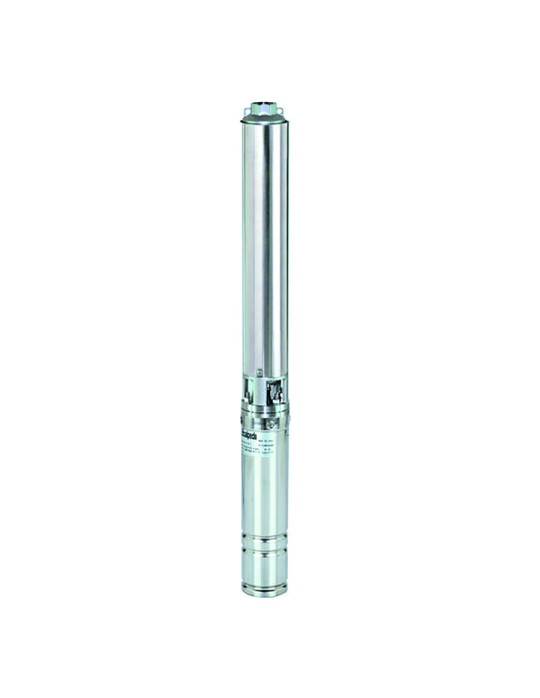

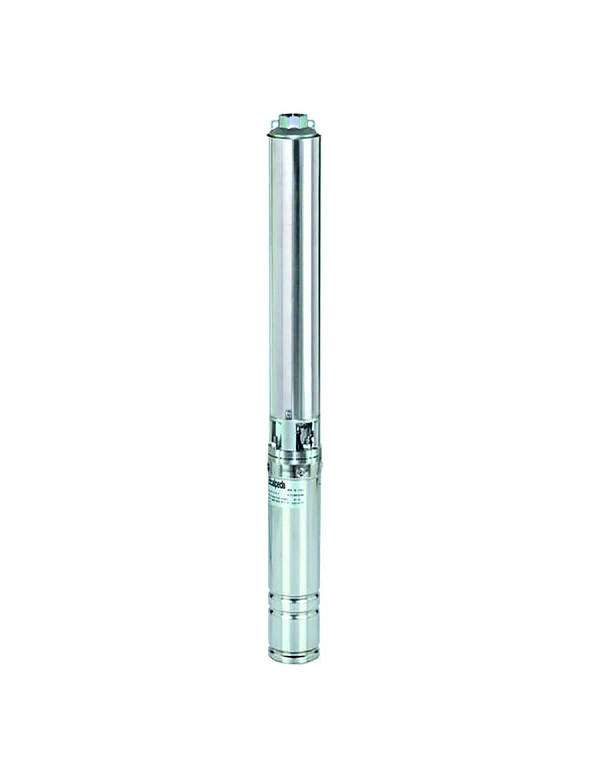

CALPEDA 4SDF 36 stainless steel borehole pump 4", with a flow to 3.5 m3/h, DN100 for pumping in deep wells. NEMA standard. Power from 0.37 kw to 4.00 kw. Three-phase 400V.

More details

Less than 10 days

536,79 €

tax incl.

More info

Pump with floating turbines for drilling 4". Use for clean liquids, with a quantity of sand to 150g/m3 in the body pump.

Characteristics of 4SDF 36 pump :
- CALPEDA 4" encapsulated motor (DN 100) - 2900 rpm - IP 68 (continuous service)
- Three-phase 400V - 50Hz
- CALPEDA hydraulics 4" multi-stages, (all made in stainless steel)
- impeller and diffusor in NORYL
- Maxi start-up to 20/h (at regular interval)
- Temperature of liquid until + 30°C

- In-built non-return valve.

Characteristics of CALPEDA 4SDF 36 submersible borehole pump for drilling 4" - 400V
 Model Reference Power
(kw)
Intensity
(A)
Voltage
400 (V)
Stages
(nomber)
4SDF 36/4
504 321 0.37 1.2 Three-phase


4
4SDF 36/6
504 322 0.37 1.2 6
4SDF 36/8
504 323 0.55 1.5 8
4SDF 36/11
504 324 0.75 2.0 11
4SDF 36/17
504 325 1.10 2.9 17
4SDF 36/23
504 326 1.50 4.2 23
4SDF 36/29
504 327 2.20 5.5 29
4SDF 36/34
504 328 2.20 5.5 34
4SDF 36/45
504 339 3.00 7.4 45
4SDF 36/58
504 330 4.00 9.4 58

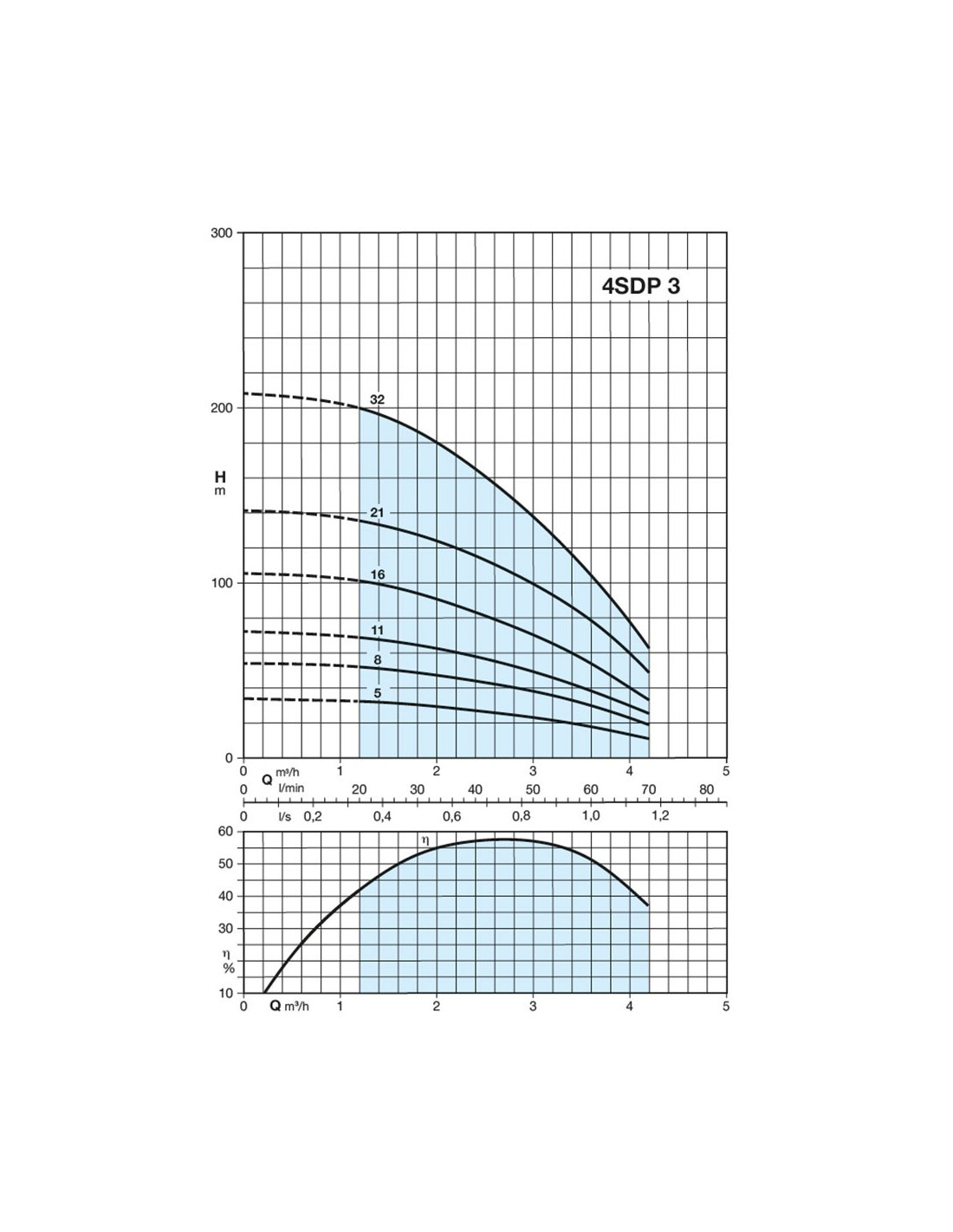

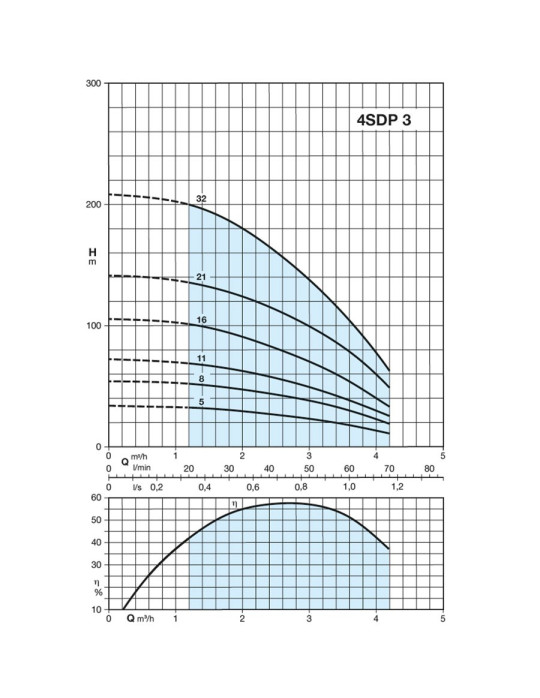

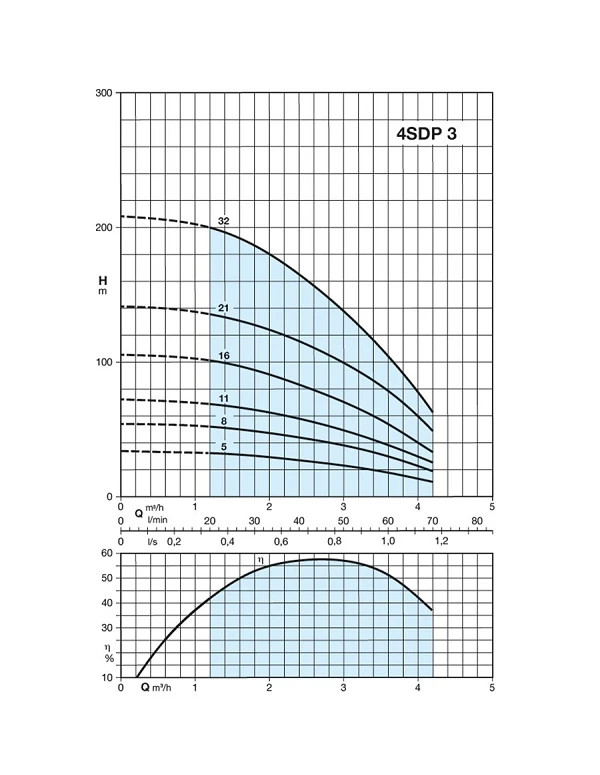

Flow rate of 4SDF 36 pump - Discharge heighter
Flow m3/h  0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8
l/min 10 20 30 40 50 60 70 80

36/4


T.D.H.
in meter
column water

22.8 21.8 20.5 18.8 16.8 14.1 10.7 6.6
36/6 34.2 32.7 30.7 28.3 25.2 21.2 16 9.9
36/8 45.6 43.6 40.9 37.7 33.6 28.2 21.3 13.2
36/11 62.7 59.9 56.3 51.8 46.2 38.8 29.4 18.1
36/17 96.9 92.6 87 80.1 71.4 60 45.4 28
36/23 131 125 118 108 96.6 81.2 61.4 37.8
26/29 165 158 148 137 122 102 77.4 47.7
36/34 194 185 174 160 143 120 90.7 55.9
36/45 257 245 230 212 189 159 120 74
36/58 331 316 297 273 244 205 155 95.4



- 10 meter column water = 1 bar
