Pompe forage 4" tout inox Calpeda 4SDXM 5 (1 m3/h)
Pompe forage 4" tout inox Calpeda 4SDXM 5 (1 m3/h)
Pompe forage 4" tout inox Calpeda 4SDXM 5 (1 m3/h)
Pompe forage 4" tout inox Calpeda 4SDXM 5 (1 m3/h)

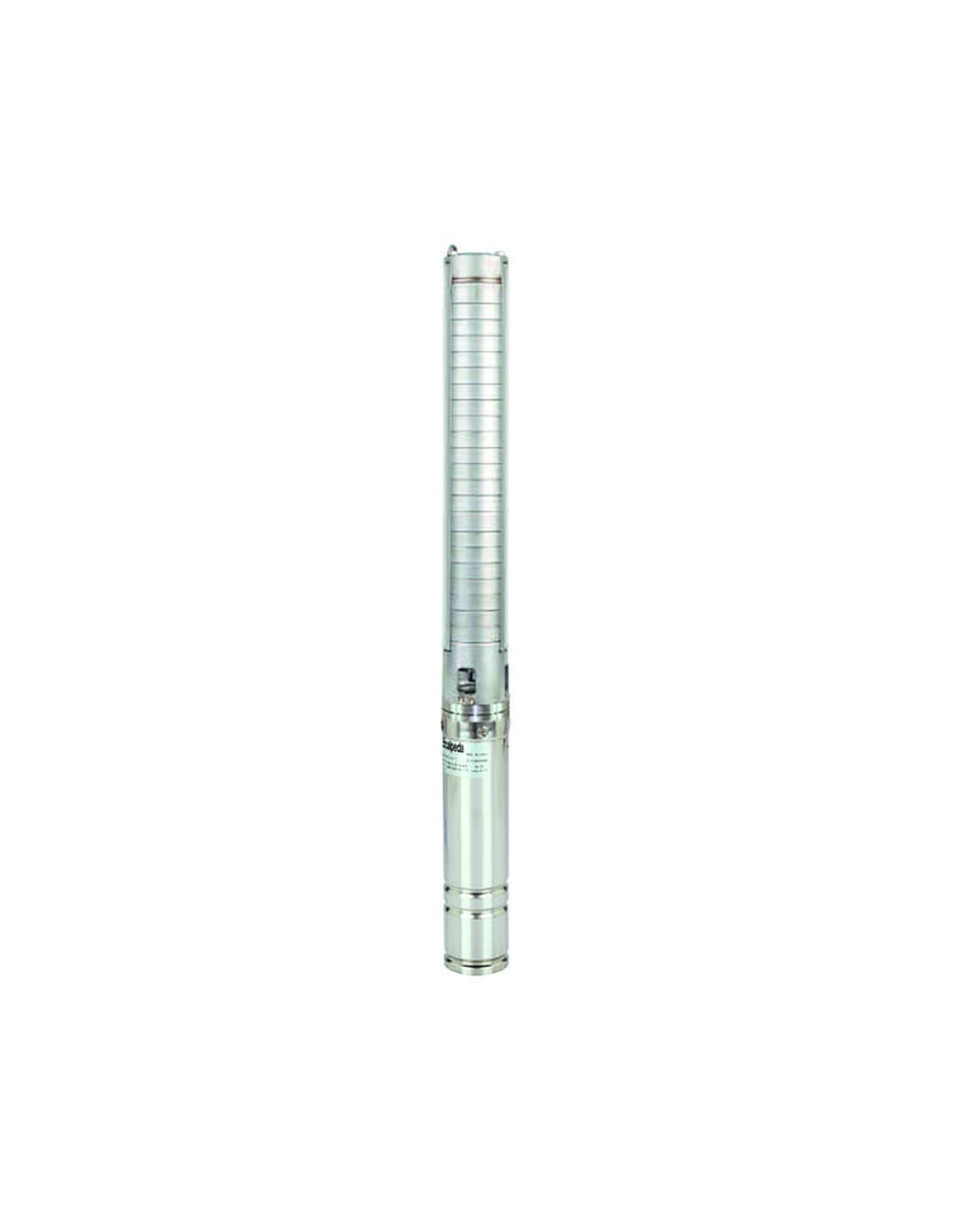

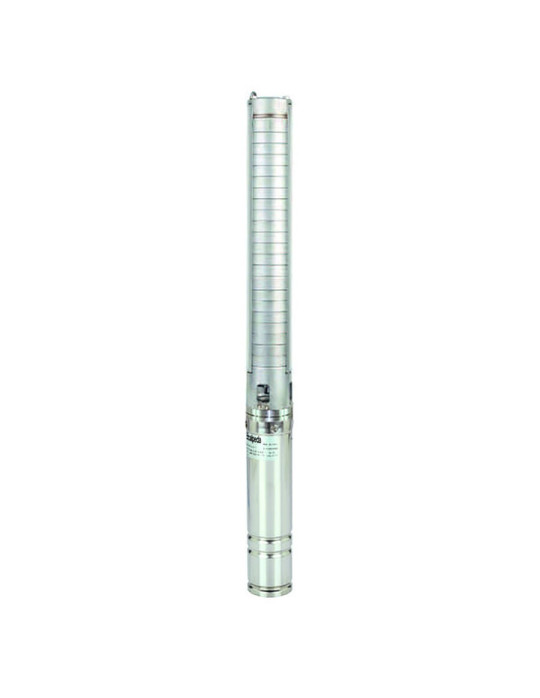

Calpeda 4SDXM 2 MONO 4" borehole pump

508124
Delivery 3 to 5 days
$648.03

$648.03 tax excl.

4" (DN98mm) submersible borehole pump, all stainless steel 304 construction, Calpeda hydraulics, single-phase Calpeda motor. Nominal flow rate 1.8 m3/h and max flow rate 2.40 m3/h. Available from 0.37 to 2.20 Kw.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
Calpeda 4SDXM 2 MONO 4" borehole pump
508124 0.37 Kw
$648.03
Available
Calpeda 4SDXM 2 MONO 4" borehole pump
508125 0.55 Kw
$726.24
Available
Calpeda 4SDXM 2 MONO 4" borehole pump
508126 0.75 Kw
$972.05
Available
Calpeda 4SDXM 2 MONO 4" borehole pump
508127 1.10 Kw
$1,117.29
Available
Calpeda 4SDXM 2 MONO 4" borehole pump
508128 1.50 Kw (1)
$1,251.37
Available
Calpeda 4SDXM 2 MONO 4" borehole pump
208234 1.50 Kw
$1,128.47
Available
Calpeda 4SDXM 2 MONO 4" borehole pump
508229 2.20 Kw (1)
$1,720.63
Available
Calpeda 4SDXM 2 MONO 4" borehole pump
508235 2.20 Kw
$1,508.35
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- For water supply.
- For civil and industrial applications.
- For fire services.
- For irrigation.

Specifications:
- Submersible electric pumps for 4” (DN98mm) boreholes.
- All 304 stainless steel construction, jacket, body, diffuser, impeller, ring, shaft, delivery, suction, basket and screws.
- Pump and motor coupling to NEMA standard.
- Check valve built into the delivery body.
- CALPEDA 4" submersible 304 stainless steel motor with a 1.5 m cable lead.
- Water temperature up to 30°C.
- Maximum quantity of sand in the water, 50 g/m3.
- Voltage variation: +6% / -10%.
- Maximum water temperature: 35°C.
- Cooling: minimum flow velocity 0.08m/s.
- Starts: 20/h maximum.
- Insulation: Class F.
- Protection: IP68.
- Continuous duty.



ModelReference

Power

(Kw)

Current

(A)

Voltage

(V)

Stages

(Number)

4SDXM 2-9
 508124 0.37 3.2 230 V / Single-phase
 9
4SDXM 2-13
 508125 0.55 4.0 13
4SDXM 2-18 508126 0.75 5.6 18
4SDXM 2-23
 508127 1.10 8.0 23
4SDXM 2-28 508234 1.50 10.8 28
4SDXM 2-33 508128 1.50 10.8 33
4SDXM 2-40 508235 2.20 14.7 40
4SDXM 2-48
 508129 2.20 14.7 48

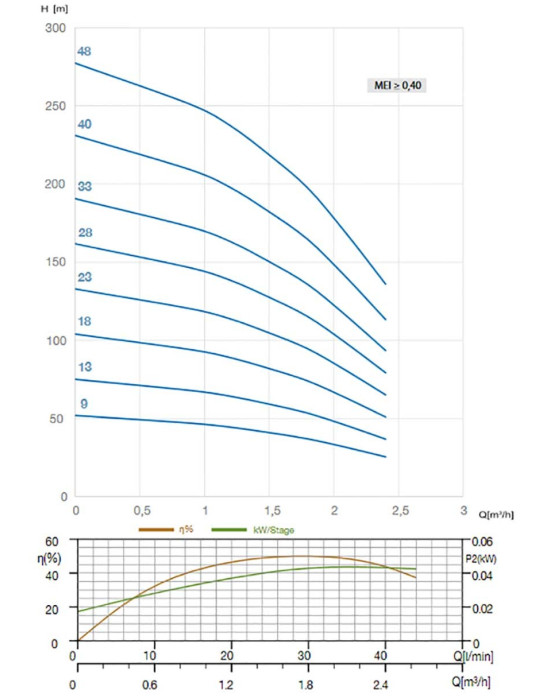

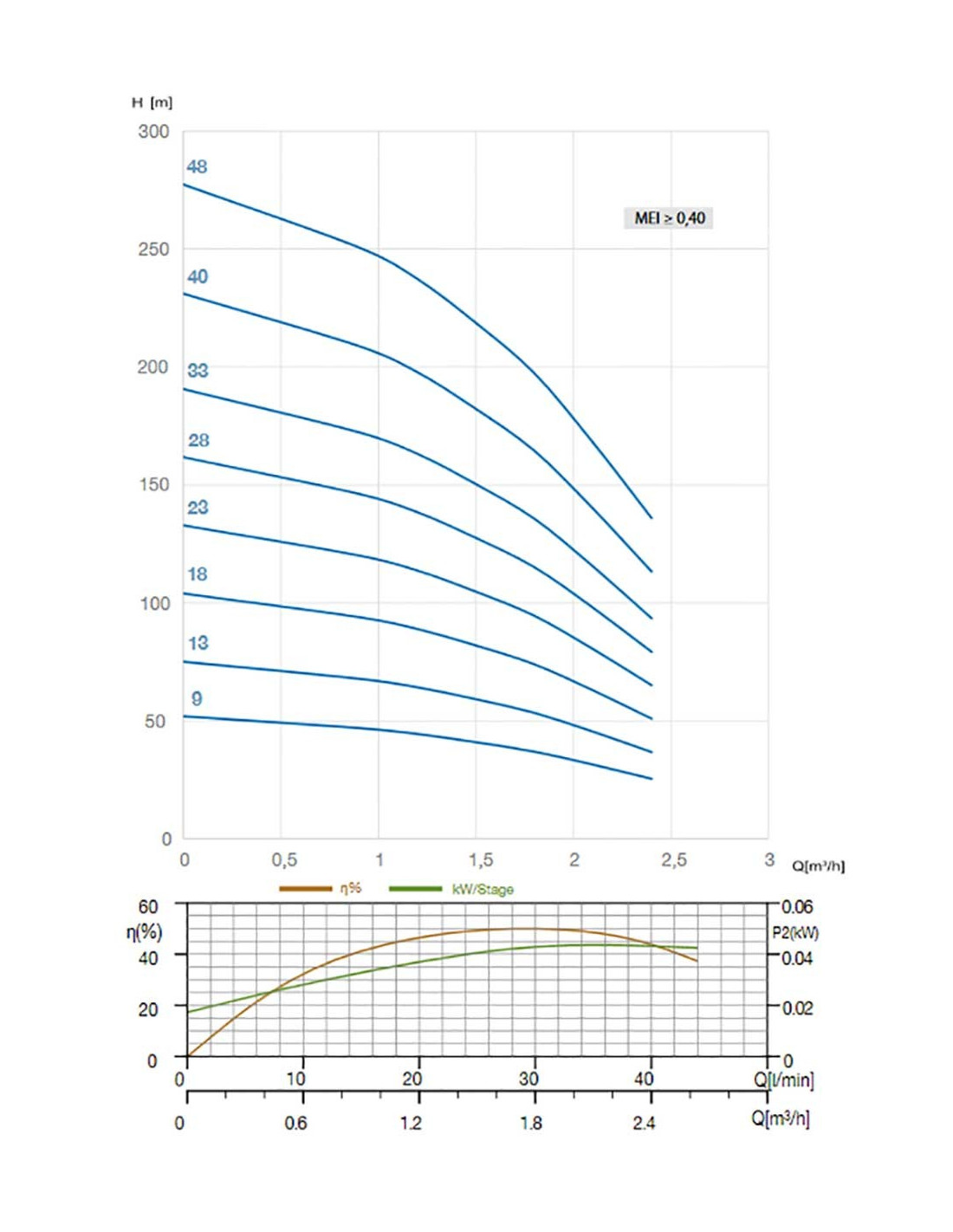

Modelm3/h00.91.21.51.82.12.4
l/min0152025303540
4SDXM 2-9 H (m) 52 48 45 42 38 33 27
4SDXM 2-13 76 68 64 59 53 46 37
4SDXM 2-18 104 94 89 82 74 63 51
4SDXM 2-23 136 124 117 109 98 85 69
4SDXM 2-28 166 153 144 134 121 105 85
4SDXM 2-33 196 182 172 159 143 124 101
4SDXM 2-40 235 217 205 190 170 147 119
4SDXM 2-48 280 261 246 227 205 178 144
