Pompe forage 4" tout inox Calpeda 4SDX 25 mono (4.8 m3/h)
Pompe forage 4" tout inox Calpeda 4SDX 25 mono (4.8 m3/h)
Pompe forage 4" tout inox Calpeda 4SDX 25 mono (4.8 m3/h)
Pompe forage 4" tout inox Calpeda 4SDX 25 mono (4.8 m3/h)

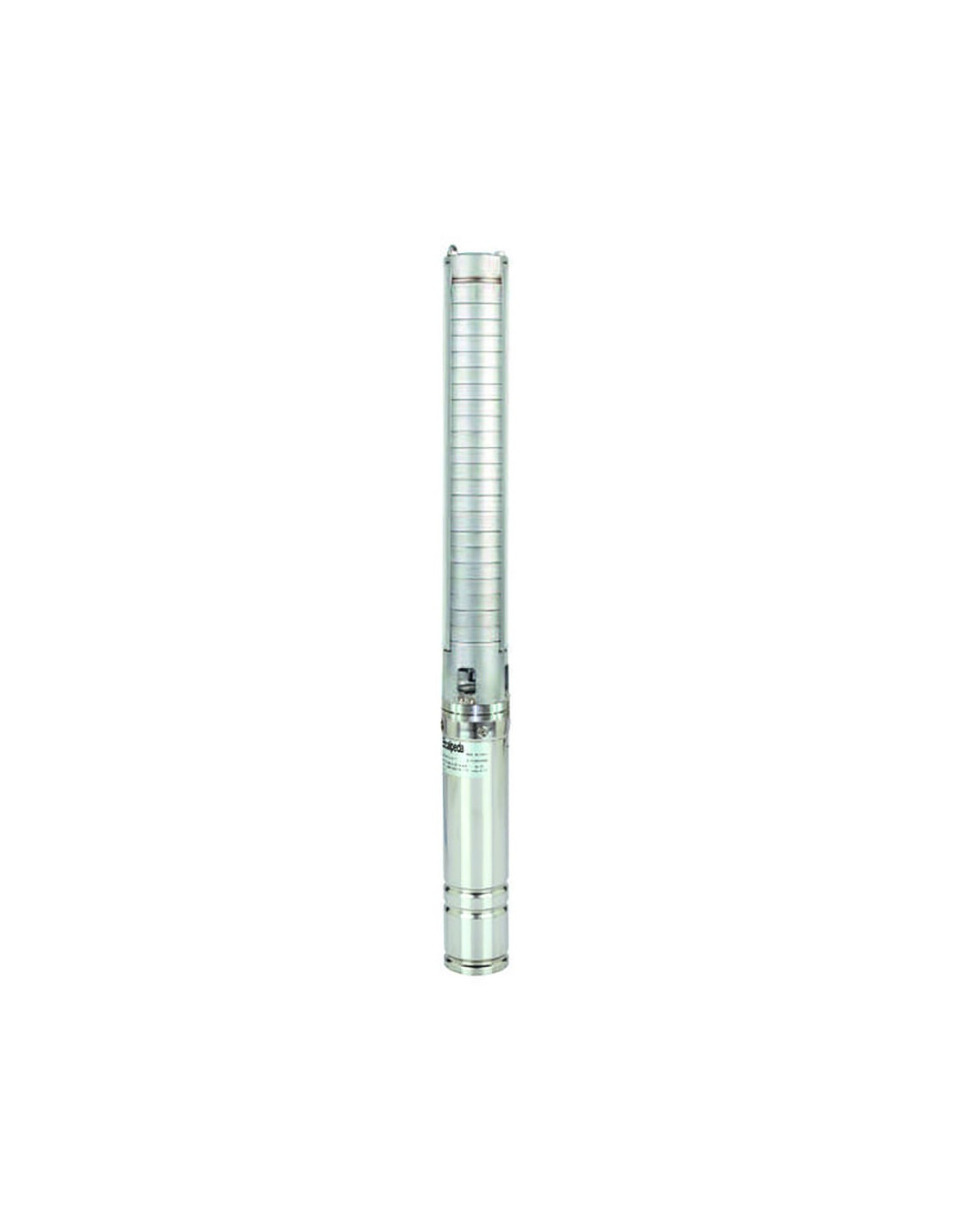

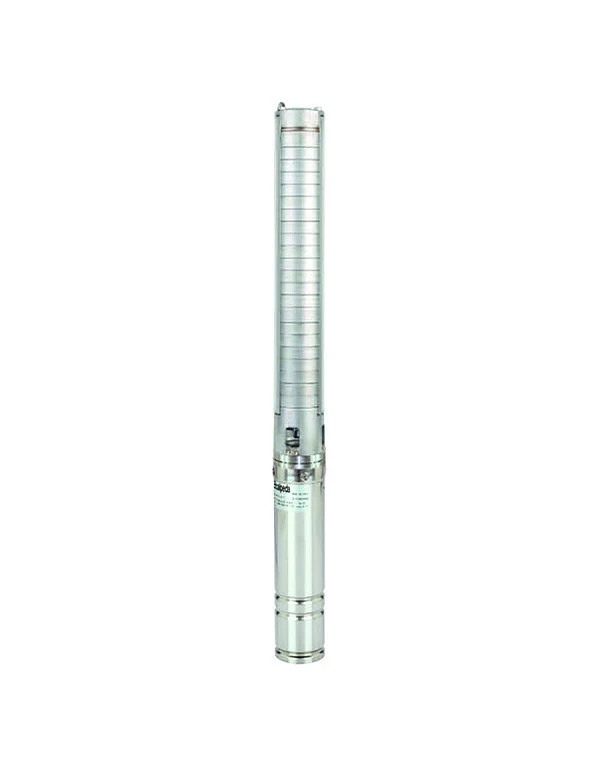

Calpeda 4SDXM 1 MONO 4" borehole pump

508246
Delivery 3 to 5 days
£485.59

£485.59 tax excl.

4" (DN98mm) submersible borehole pump, all stainless steel 304 construction, Calpeda hydraulics, 4" Calpeda single-phase submersible motor. Nominal flow rate 1.0 and max flow rate 1.5 m3/h. Available from 0.37 to 1.10 Kw

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
Calpeda 4SDXM 1 MONO 4" borehole pump
508246 0.37 Kw
£485.59
Available
Calpeda 4SDXM 1 MONO 4" borehole pump
508162 0.37 Kw (1)
£560.94
Available
Calpeda 4SDXM 1 MONO 4" borehole pump
508163 0.55 Kw (1)
£661.41
Available
Calpeda 4SDXM 1 MONO 4" borehole pump
508247 0.55 Kw
£619.55
Available
Calpeda 4SDXM 1 MONO 4" borehole pump
508164 0.75 Kw
£770.25
Available
Calpeda 4SDXM 1 MONO 4" borehole pump
508165 1.10 Kw (1)
£1,071.65
Available
Calpeda 4SDXM 1 MONO 4" borehole pump
508248 1.10 Kw
£954.44
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- For water supply.
- For civil and industrial applications.
- For fire services.
- For irrigation.

Specifications:
- Submersible electric pumps for 4” (DN98mm) boreholes.
- All 304 stainless steel construction, jacket, body, diffuser, impeller, ring, shaft, delivery, suction, basket and screws.
- Pump and motor coupling to NEMA standard.
- Check valve built into the delivery body.
- CALPEDA 4" submersible 304 stainless steel motor with a 1.5 m cable lead.
- Water temperature up to 30°C.
- Maximum quantity of sand in the water, 50 g/m3.
- Voltage variation: +6% / -10%.
- Maximum water temperature: 35°C.
- Cooling: minimum flow velocity 0.08m/s.
- Starts: 20/h maximum.
- Insulation: Class F.
- Protection: IP68.
- Continuous duty.

ModelReference

Power

(Kw)

Current

(A)

Voltage

(V)

Stages

(Number)

4SDXM 1-9 508246 0.37 3.2 230 V / Single-phase
 9
4SDXM 1-14
 508162 0.37 3.2 14
4SDXM 1-18 508247 0.55 4.0 18
4SDXM 1-21
 508163 0.55 4.0 21
4SDXM 1-28
 508164 0.75 5.6 28
4SDXM 1-36 508248 1.10 8.0 36
4SDXM 1-42
 508165 1.10 8.0 42

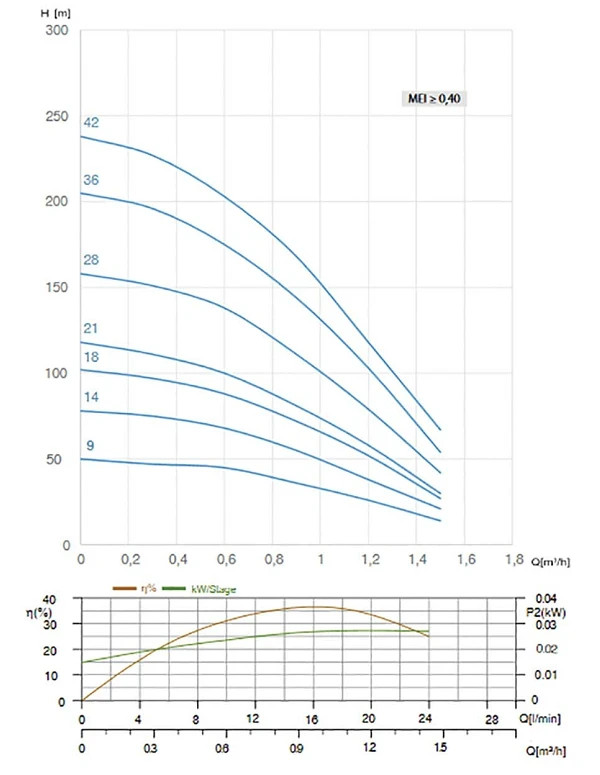

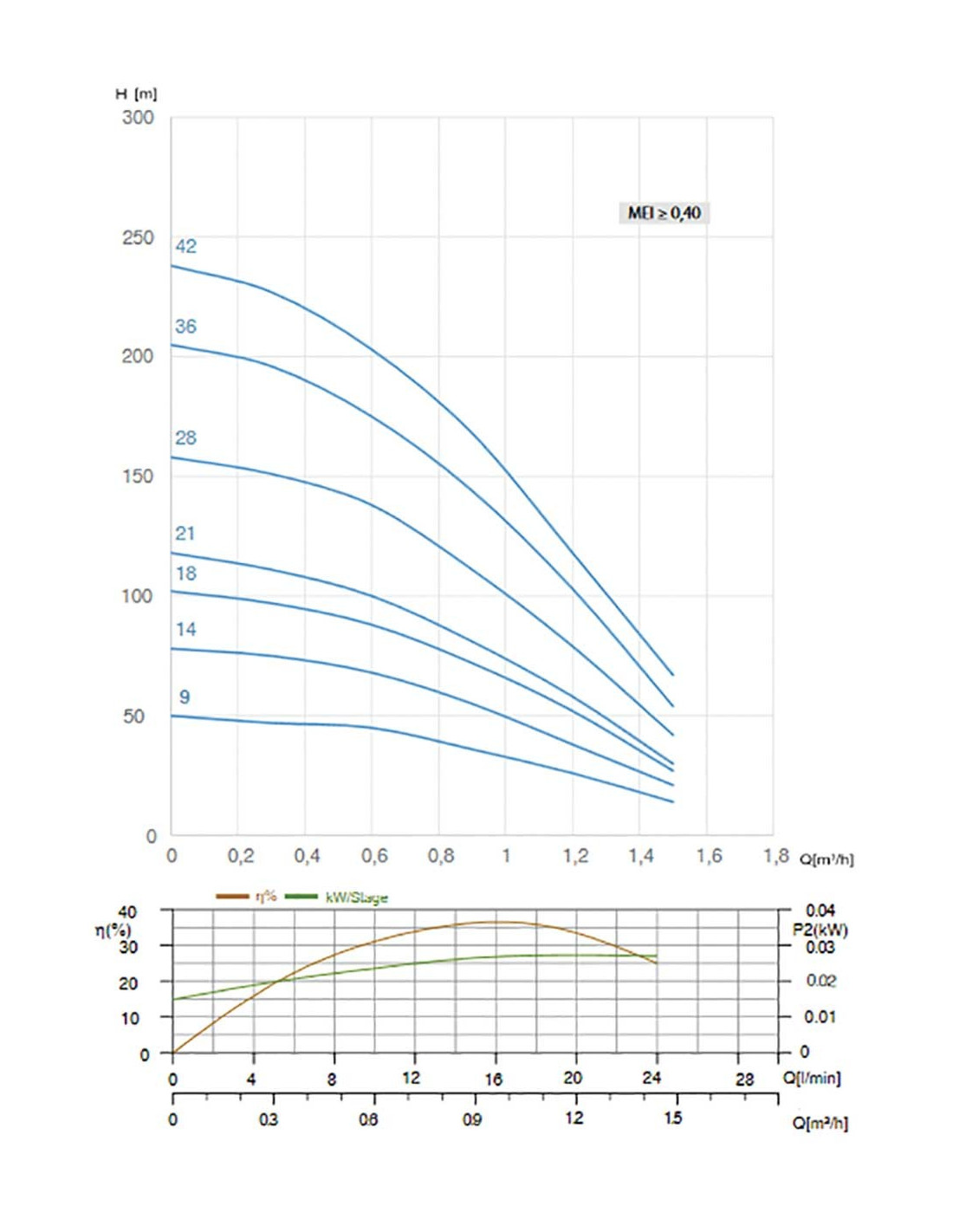

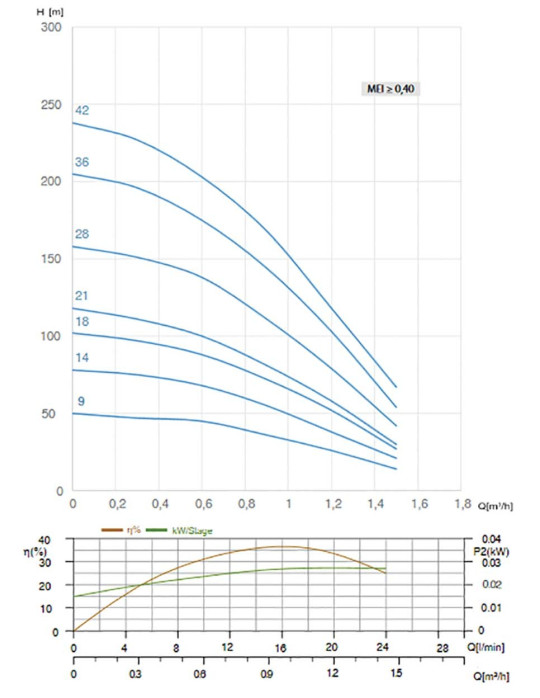

Modelm3/h00.30.60.91.21.5
l/min0510152025
4SDXM 1-9 H (m) 50 47 45 36 26 14
4SDXM 1-14 78 75 68 55 38 21
4SDXM 1-18 102 97 88 72 52 27
4SDXM 1-21 118 111 100 81 58 30
4SDXM 1-28 158 151 138 111 79 42
4SDXM 1-36 205 196 175 144 103 54
4SDXM 1-42 238 227 203 168 117 67
