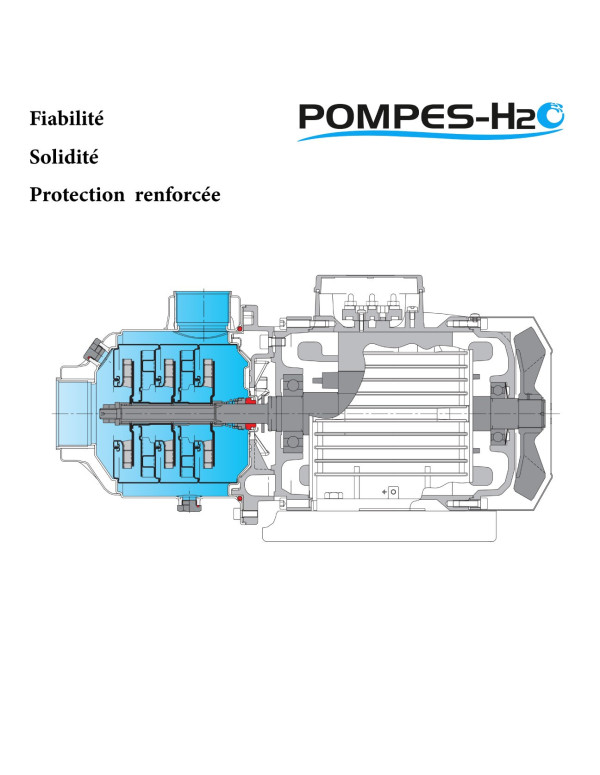

Horizontal multistage all-stainless steel pump MXH-F (Flanged) 32 m3/h

Key features of the MXH pump :
- Flanged suction and discharge connection version (other versions: threaded and victaulic).
- All hydraulic parts in contact with the liquid are made of stainless steel.
- The axial suction port provides better suction capacity.
- The seal can be inspected through the connection bracket.

Uses:
- Water supply.
- Universal, versatile pump for agricultural, industrial and irrigation applications.

Specifications:
- Pump body, stage casing and impeller in AISI 304 stainless steel.
- AISI 316 stainless steel shaft.
- Mechanical seal: aluminium oxide, hard carbon, EPDM (other materials on request).
- Liquid temperature from - 15 °C to + 110 °C.
- Ambient temperature up to 40 °C.
- Maximum permissible pressure in the pump body: 16 bar.
- Continuous duty.
- Insulation class F.
- IP 54 protection.
- Built to: IEC 60034-1.

Characteristic curves:

Dimensions (mm):
