Pompe multicellulaire horizontale en inox 316L - MXH 2 (2 m3/h - 230V) Expand

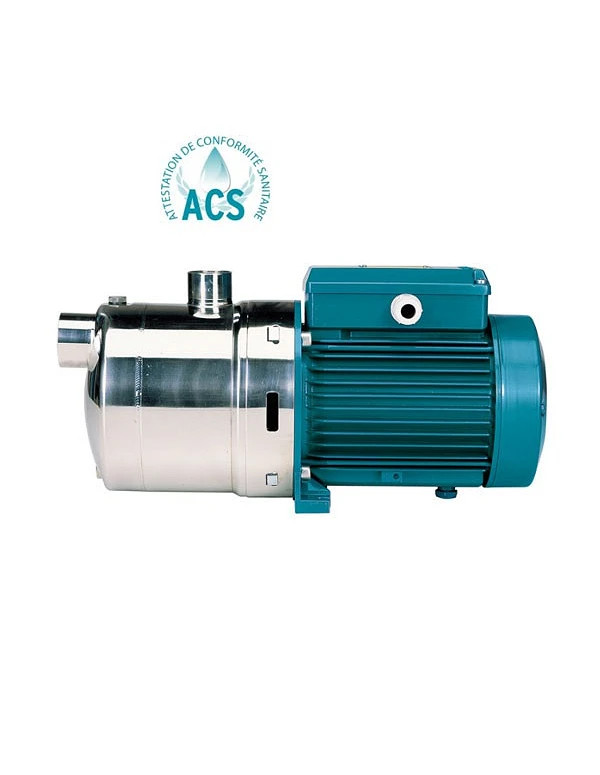

CALPEDA MXHLM 2 horizontal multistage pump in stainless steel 316L - 230V - Flow to 2m3/h

CALPEDA CALPEDA

New

CALPEDA MXHLM 2 horizontal multistage pump 230V, flow to 2m3/h, for water supply in domestics, industry, agricuture, irrigation, washing... Body pump, stages and turbine in all stainless steel 316, with a flow to 2m3/h.

More details

Less than 5 days

485,00 €

tax incl.

More info

Benefits of the CALPEDA MXHLM 2 single-phase horizontal pump :
- All hydraulics parts in contact with the liquid are in stainless steel AISI 316L.
- Compact and robust construction with threaded holes.
- Close-coupled pump, barrel-casing with suction hole in front, above pump axis and  with radial discharge hole at the top.
- The filler cap & discharge is placed in middle of the pump, and can be accessible in all sides (and for the terminal too).

Applications :
- Potable water supply.
- Domestic booster, washing, irrigation...
- Industry, laboratoriy, agriculture and food applications...

Characteristics :
- Body pump, body stages, impeller and turbine made in stainless steel AISI 316L.
- Shaft made in stainless steel AISI 316.
- Mechanical seal : aluminium oxide, hard carbon, EPDM (others materials on request).
- Temperature of liquid from - 15 °C to + 110 °C.
- Room temperature until 40 °C.
- Maxi. pressure in the body pump : 10 bar.
- Continuous service.
- Insulation : classe F.
- Protection : IP 54.
- Standard : IEC 60034; IEC 60038; IEC 60335-1, EN 60335-1; IEC 60335-2-41, EN 60335-2-41.

Model MXHLM 202E
MXHLM 203E
MXHL 204/A
MXHLM 205/A
MXHLM 206
Reference 605406 605408 605410 605412 605414
Power (Kw) 0.33 0.45 0.55 0.75 1.10
Voltage (V)  230
Intensity (A)  2.3 3 4.2 5.4 7.4
Engine speed (rpm) 2900
TDH (m) 22 33 45 57 68.5
Nominal flow (m3/h) 2
Suction hole DN 1" 1/4
Discharge hole DN 1"
Weight (Kg) 6.9 7.7 11 12.5 18.6

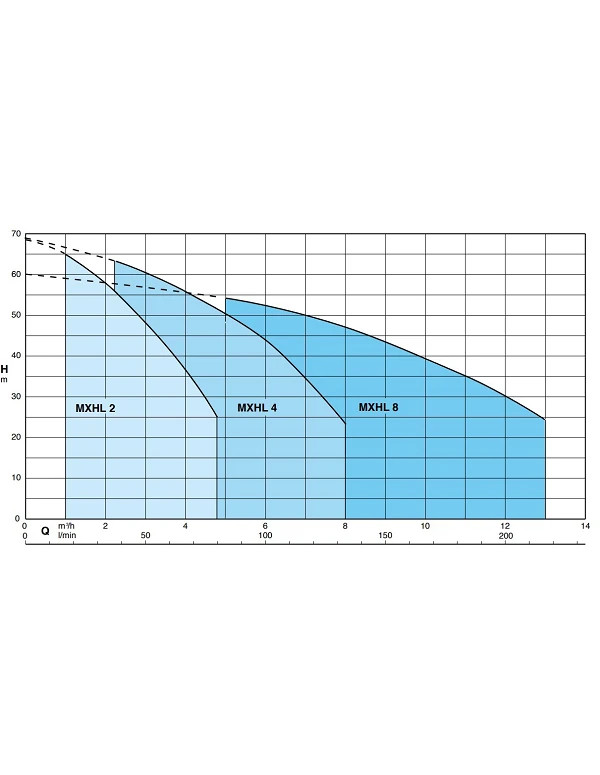

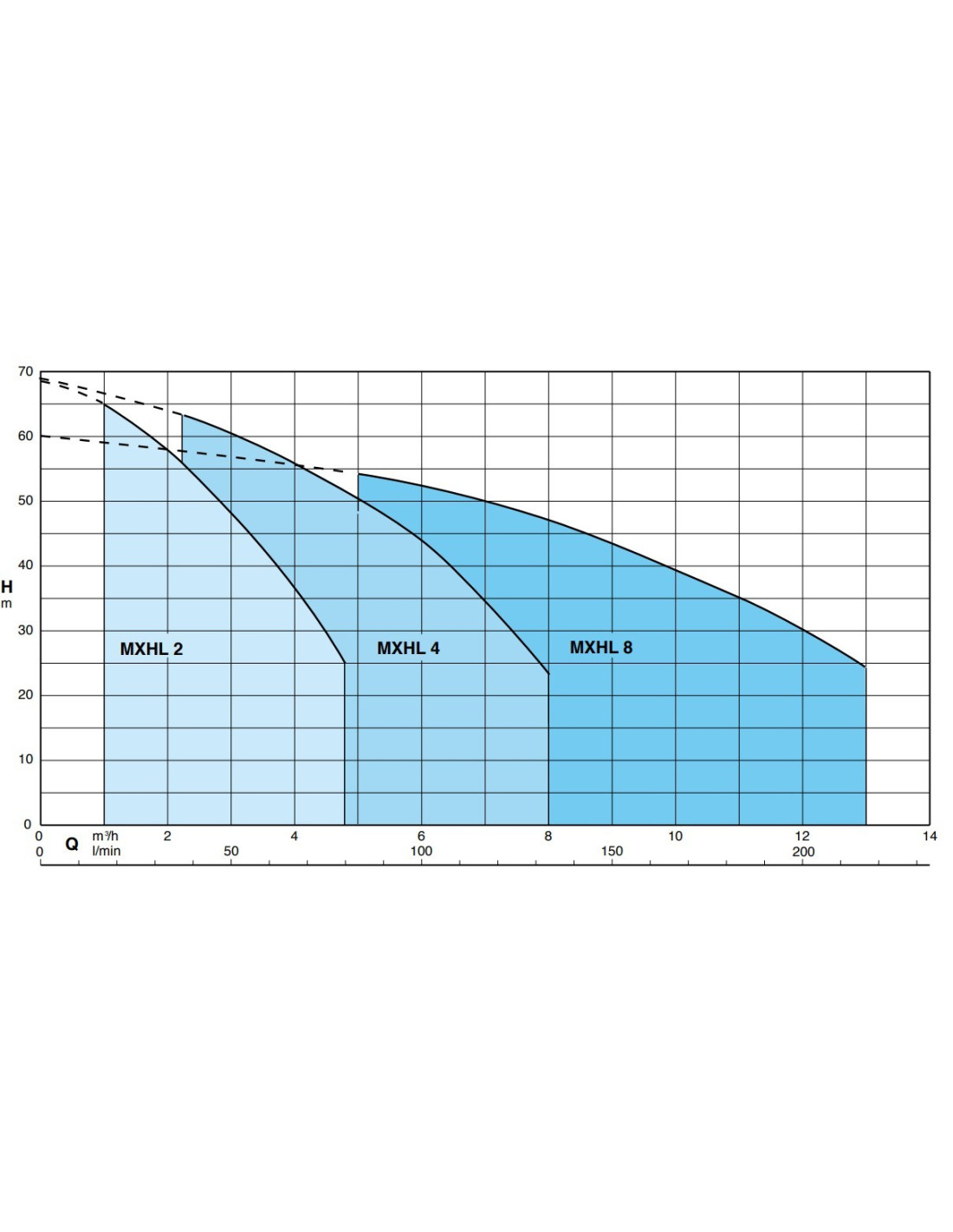

Characteristics to 2800 rpm :

Dimensions (mm) :
