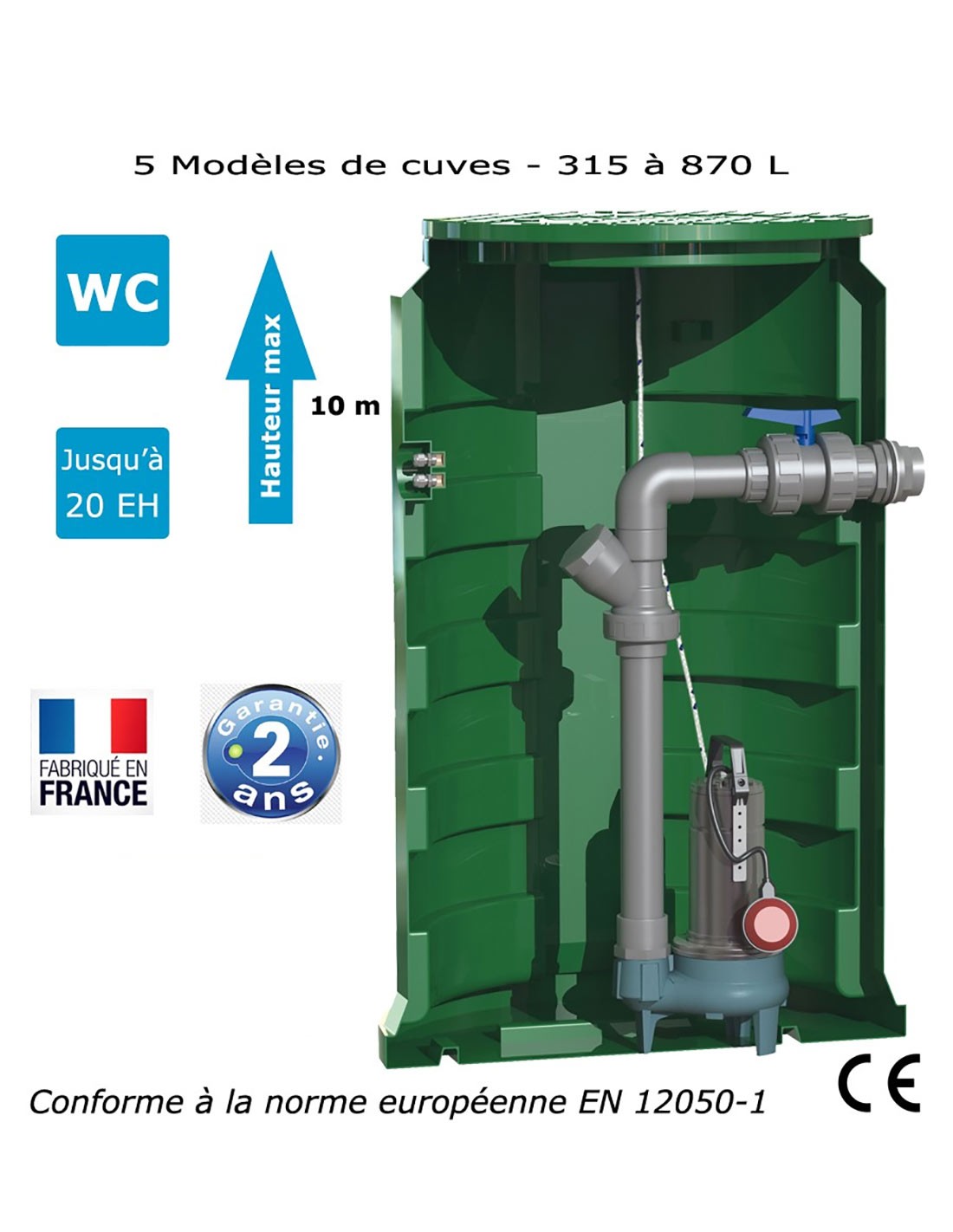

Burried sewage pump station, made in high-density polyethylene, with tight cover is locked by 3-points locks with triangle key.
Delivery with :
- 1 burried tank,
- 1 stop valve in PVC Ø63mm,
- 1 non-return valve with ball special for waste water in PVC Ø63mm,
- some rigid piping (indoor),
- 1 nylon rope for support Ø8mm,
- 1 single phase pump made in cast iron special for loaded water (vortex impeller), with 20m cable + 1 float switch "on-off",
- 2 integrated cable glands for water supply and the overflow,
- kit outlet station Ø63mm : 1 PVC fitting & 1 flexible piping + 2 compression fittings. For pipeline PVC or PEHD,
- 1 elbow 45° male/female for PVC Ø100mm,
- 1 lip seal for mounting input hose Ø100mm,
- 1 lip seal for do a ventilation air in Ø100mm,
- 1 drilling to do in Ø108mm,
- 1 plug 230V,
- 1 kit of connexion RST3 (in humid environment).
Ref. | Model | Pump | Volts (V) |
Power (Kw) |
Intensity (A) |
Discharge Ø |
Strainer (mm) |
220042 | CALIDOM 900-13 |
GQSM 50-13 |
230 | 1.10 | 8.4 | 63 | 50 |
220043 | CALIDOM 1200-13 | GQSM 50-13 |
230 | 1.10 | 8.4 | 63 | 50 |
220044 | CALIDOM 1600-13 | GQSM 50-13 |
230 | 1.10 | 8.4 | 63 | 50 |
220045 | CALIDOM 2000-13 | GQSM 50-13 |
230 | 1.10 | 8.4 | 63 | 50 |
220046 | CALIDOM 2400-13 | GQSM 50-13 |
230 | 1.10 | 8.4 | 63 | 50 |
Model | Height (mm) |
Run of river | D1 | D2 | G | H1 | H2 | Weight (Kg) |
CALIDOM 900-13 | 900 | From 0 to -350 | 650 | 800 | 400 | 350 | 550 | 46 |
CALIDOM 1200-13 | 1200 | From 0 to -650 | 850 | 54 | ||||
CALIDOM 1600-13 | 1600 | From 0 to -1050 | 1250 | 66 | ||||
CALIDOM 2000-13 | 2000 | From 0 to -1450 | 1650 | 77 | ||||
CALIDOM 2400-13 | 2400 | From 0 to -1850 | 2050 | 90 |

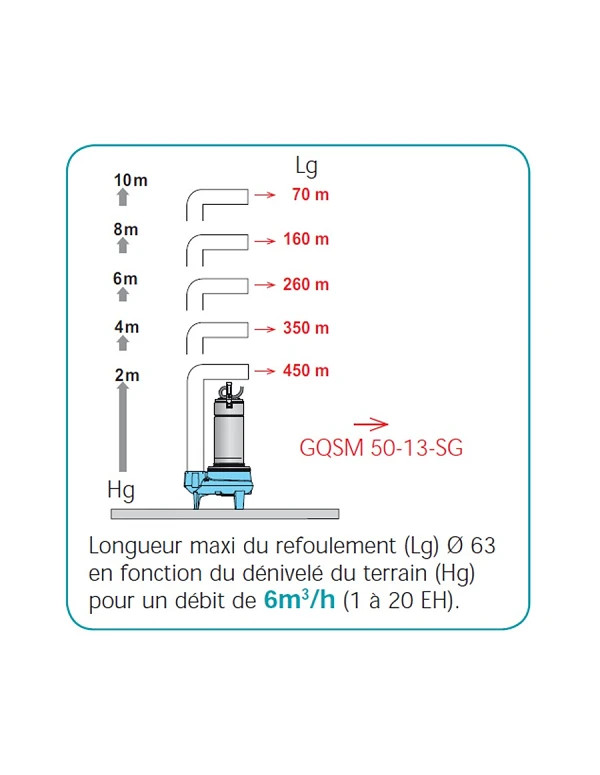

Type of pump |
Flow (m3/h) |
0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 |
GQSM 50-813 |
H.M.T (m) |
12.8 | 12.2 | 11.6 | 11 | 10.3 | 9.5 | 8.6 | 7.7 | 6.7 | 5.7 | 4.5 | 3.3 | 2 |
