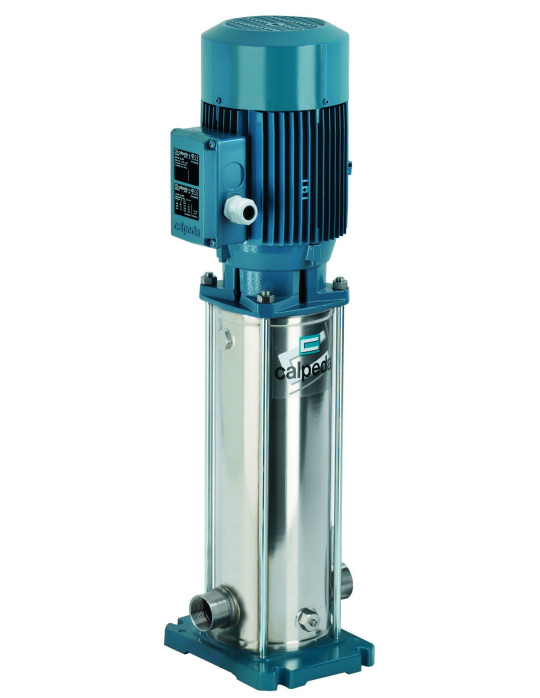

CALPEDA MXV-B M 32 vertical multistage pump in stainless steel 230V Expand

CALPEDA MXV-B M 32 vertical multistage pump in stainless steel 230V

CALPEDA CALPEDA

New

Pressure boosting vertical multi-stage pump 230V, made in chrome-nickel stainless steel. Suction and  discharge in line, center-distance to 225mm, nominal size (DN) 1"1/2. Available from 0.75kw to 2.20kw. Maxi. flow rate 8m3/h.

More details

Less than 5 days

1 025,00 €

tax incl.


CombinationsModelreferenceStockPricequantityAdd to cart

CALPEDA MXV-B M 32 vertical multistage pump in stainless steel 230V : Model:MXV-BM 32-403

MXV-BM 32-403

Stock :

606146

Price : 1 025,00 €

MXV-BM 32-403606146

Available now


1 025,00 € TTC

CALPEDA MXV-B M 32 vertical multistage pump in stainless steel 230V : Model:MXV-BM 32-404

MXV-BM 32-404

Stock :

606147

Price : 1 049,08 €

MXV-BM 32-404606147

Available now


1 049,08 € TTC

CALPEDA MXV-B M 32 vertical multistage pump in stainless steel 230V : Model:MXV-BM 32-405

MXV-BM 32-405

Stock :

606148

Price : 1 103,26 €

MXV-BM 32-405606148

Available now


1 103,26 € TTC

CALPEDA MXV-B M 32 vertical multistage pump in stainless steel 230V : Model:MXV-BM 32-406

MXV-BM 32-406

Stock :

606149

Price : 1 150,42 €

MXV-BM 32-406606149

Available now


1 150,42 € TTC

CALPEDA MXV-B M 32 vertical multistage pump in stainless steel 230V : Model:MXV-BM 32-407

MXV-BM 32-407

Stock :

606150

Price : 1 204,60 €

MXV-BM 32-407606150

Available now


1 204,60 € TTC

Used for boosting pressure, fire suppression, irrigation, high pressure washing, and all domestics systems, communities agricultural production, industries... For clean liquids without solids particles, non-explosives and non-aggressives. All parts who touch the liquid are in high-grade stainless steel. Very resistant bearing to corrosion and lubricated by the pumped liquid.

Limits of use of the CALPEDA MXV-B M 32 pump :
- Temperature of liquid : from -5°C to +90°C.
- Temperature room until +40 °C.
- Maxi. pressure in the body pump : 16 bars.
- Insulation : classe F. Level of protection : IP 54.
- Standard norm : IEC 600034

Characteristics of Calpeda MXV-B M 32 pump :
- Continuous service. Thermal protection and capacitor in-built.
- Induction motor 2 poles, 50 Hz (n = 2900 rpm).
- Shaft, outer sleeve, inlet body, and discharge, stages housing, impeller, lower and top cover, spacer in nickel chromium steel 1.4301 EN 10088 (AISI 304).
- Mechanical seal (ISO 3069 - KU) in ceramic hard alumina/carbon EPDM.
- Wearing ring in PTFE.
- O-Rings NSR.

ModelMXV-BM
32-403

MXV-BM
32-404

MXV-BM
32-405
MXV-BM
32-406
MXV-BM
32-407

Ref.606 146606 147606 148606 149606 150
Power (kW)0.751.101.101.501.50
Single-phase (V)230
Intensity (A)5.87.47.49.29.2
TDH (m CE)3445566879.5
Maxi. pressure (bar)3.44.55.66.87.95
Maxi. flow rate (m3/h)8
Maxi. flow rate (l/min)  133.3
Ø suction hose1" 1/4 F
Ø discharge hose1" 1/4 F
Suction center-distance
/ discharge (mm)
225
Weight (kg)2526272930
