Pompe multicellulaire vertical inox (4000V) MXV-B 40 (8 m3/h

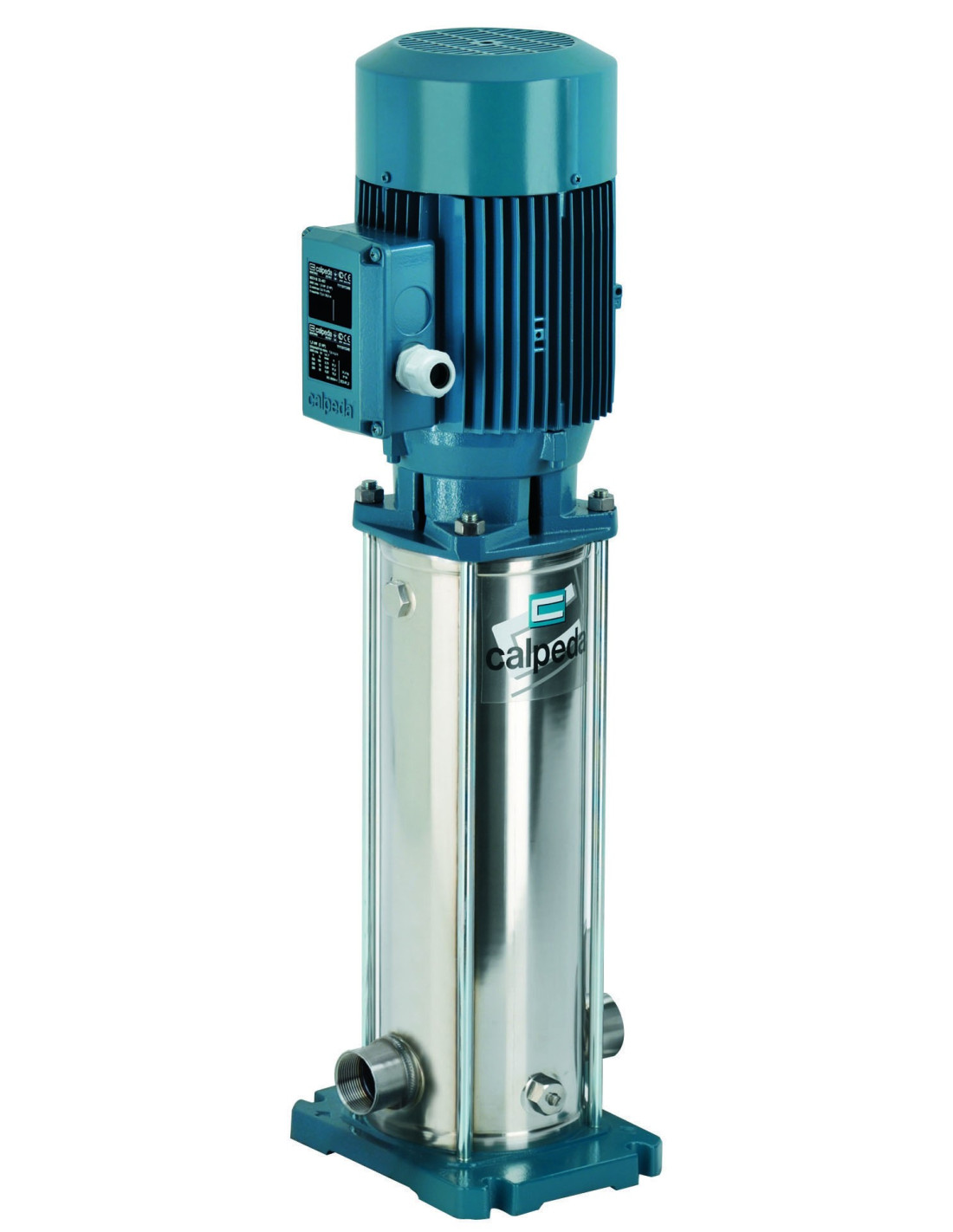

Vertical multistage pump Calpeda MXV-B 40 TRI

606153
Delivery 2 to 4 days
€1,258.33

€1,258.33 tax excl.

Vertical monobloc multistage pump, made of chrome-nickel stainless steel. In-line suction and delivery, centre distance 225mm, DN 1" 1/2. Available from 1.10 to 3.70 kW.  Nominal flow rate 10 m3/h.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
Vertical multistage pump Calpeda MXV-B 40 TRI
606153 1.10 Kw
€1,258.33
Available
Vertical multistage pump Calpeda MXV-B 40 TRI
606154 1.50 Kw
€1,320.83
Available
Vertical multistage pump Calpeda MXV-B 40 TRI
606155 2.20 Kw
€1,338.33
Available
Vertical multistage pump Calpeda MXV-B 40 TRI
606156 2.20 Kw (1)
€1,408.33
Available
Vertical multistage pump Calpeda MXV-B 40 TRI
606157 3.00 Kw
€1,558.33
Available
Vertical multistage pump Calpeda MXV-B 40 TRI
606158 3.00 Kw (1)
€1,608.33
Available
Vertical multistage pump Calpeda MXV-B 40 TRI
606159 3.70 Kw
€1,798.33
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Used for pressure boosting, fire-fighting, irrigation and high-pressure washing in domestic, communal, agricultural and industrial installations. For clean liquids without solids, non-explosive and non-aggressive. All parts in contact with the liquid, including the lower and upper covers, are made of chrome-nickel stainless steel. Corrosion-resistant bearing lubricated by the pumped liquid.

Limits of use:
- Liquid temperature: from -5°C to +90°C.
- Ambient temperature up to +40 °C.
- Maximum permissible pressure in the pump body: 16 bar.
- Insulation class F. Protection rating IP 54.
- Built to: IEC 600034

Specifications :
- 2-pole induction motor, 50 Hz (n = 2900 1/min) - Three-phase 230/400 V ± 10% up to 3.00 Kw, then 400/690 V ± 10% for the 3.70 Kw model.
- Frequency 50 Hz (n = 2900 rpm).
- Shaft, outer sleeve, suction and discharge casing, stage casings, impeller, lower and upper covers, spacers in AISI 304 stainless steel.
- Mechanical seals (ISO 3069 - KU) in alumina ceramic/hard carbon EPDM.
- PTFE wear ring.
- O-Rings NSR.
- Continuous duty.

* Centre distance (suction / discharge): 225mm.

Model Reference Power
(Kw)		 Suct./Disch. Voltage
(V)		 Current
(A)		 Flow rate
nominal
(m3/h)
MXV-B 40-903
 606153 1.10

Female

1'' 1/2

Three-phase

 2.7 10
MXV-B 40-904 606154 1.50 4.3
MXV-B 40-905 606155 2.20 5.3
MXV-B 40-906 606156 2.20 5.3
MXV-B 40-907 606157 3.00 6.6
MXV-B 40-908 606158 3.00 6.6
MXV-B 40-910 606159 3.70 9.6

Flow rate m3/h 0 5 6 7 8 9 10 11 12 13
l/min 0 83.3 100 116.6 133.3 150 166.6 183.3 200 216.6
MXV-B 40-903 H
(m)		 35.5 32.5 31.5 31 29.5 28 25.5 22.5 19.5 15.5
MXV-B 40-904 47 43 42 41 40 37 34 30 26 21
MXV-B 40-905 59 54 53 51 50 47 43 38 32 26
MXV-B 40-906 71 65 63 62 59 56 51 45 39 31
MXV-B 40-907 83 76 74 72 69 66 60 53 45 36
MXV-B 40-908 95 87 85 82 79 75 69 60 51 42
MXV-B 40-910 119 109 106 103 99 94 86 75 64 52
