Operation of the pump without a water level probe, thanks to measurement of the power factor (cos phi). Control and shutdown of the pump in the event of lack of air in the tank, overvoltage, undervoltage, overload or lack of water. 2 x 16 character front control display, 6-button keypad to set up and control the device, four languages in the menu.

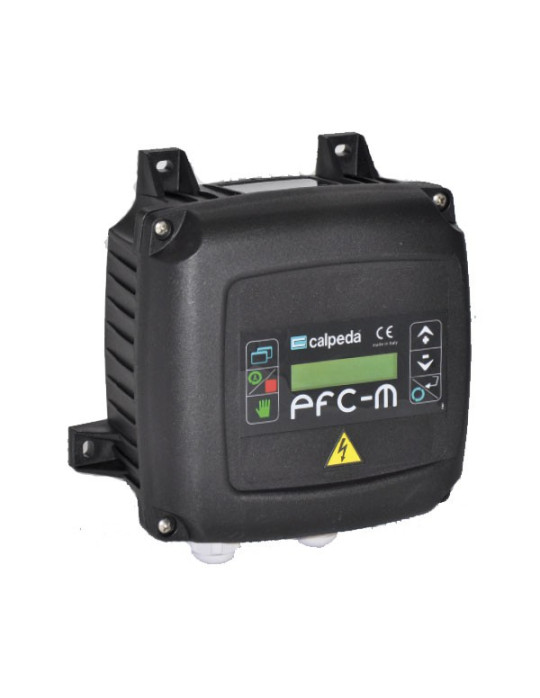

PFC-M control panel specifications:
- Thermoplastic enclosure: 220x110x210 mm.
- Degree of protection: IP 55.
- Single-phase power supply 220-240V 50/60 Hz.
- Output power from 0.25 to 2.20 kw (max).
- Adjustment from 1 to 18 A.
- Dry-running protection (cos phi measurement).
- Ambient temperature -5 +40 °C.
- Relative humidity: from 20 to 90 % non-condensing.
- The pump can operate automatically with a pressure switch (booster circuit) or a float switch (tank filling).
- Alarm output.
- Design in accordance with: IEC/EN 60439-1.
| Reference | Model |
Voltage | Power max (Kw) | Capacitor | Dimensions (in mm) |
|---|---|---|---|---|---|
| 008021 | PFC-M |
220-240V - 50/60Hz | 2.20 |
without | 220x110x210 |
Operation and alarms:
- Automatic pump operation.
- Undervoltage and overvoltage: visual warning and pump stop.
- Motor overload: visual warning and pump stop.
- Lack of water: visual warning and pump stop.
- Lack of air in bladder pressure tank: pump stops after 4 restarts.
Options:
- RA 100 alarm panel, fitted with a buzzer and a flashing red light: ref 008 031.
