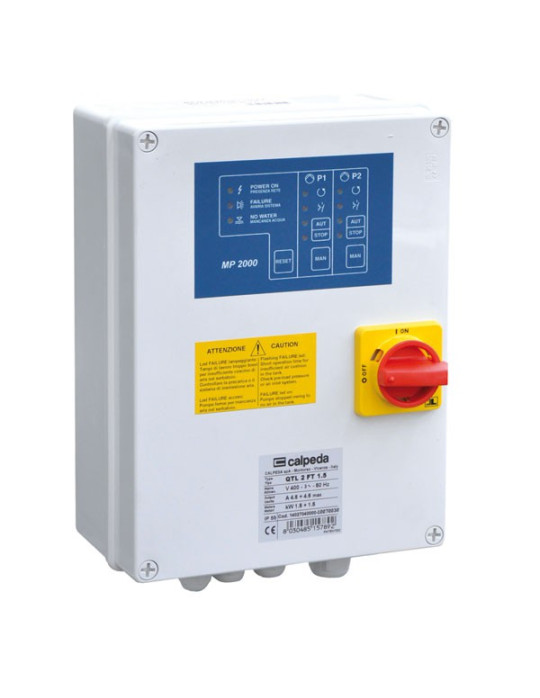

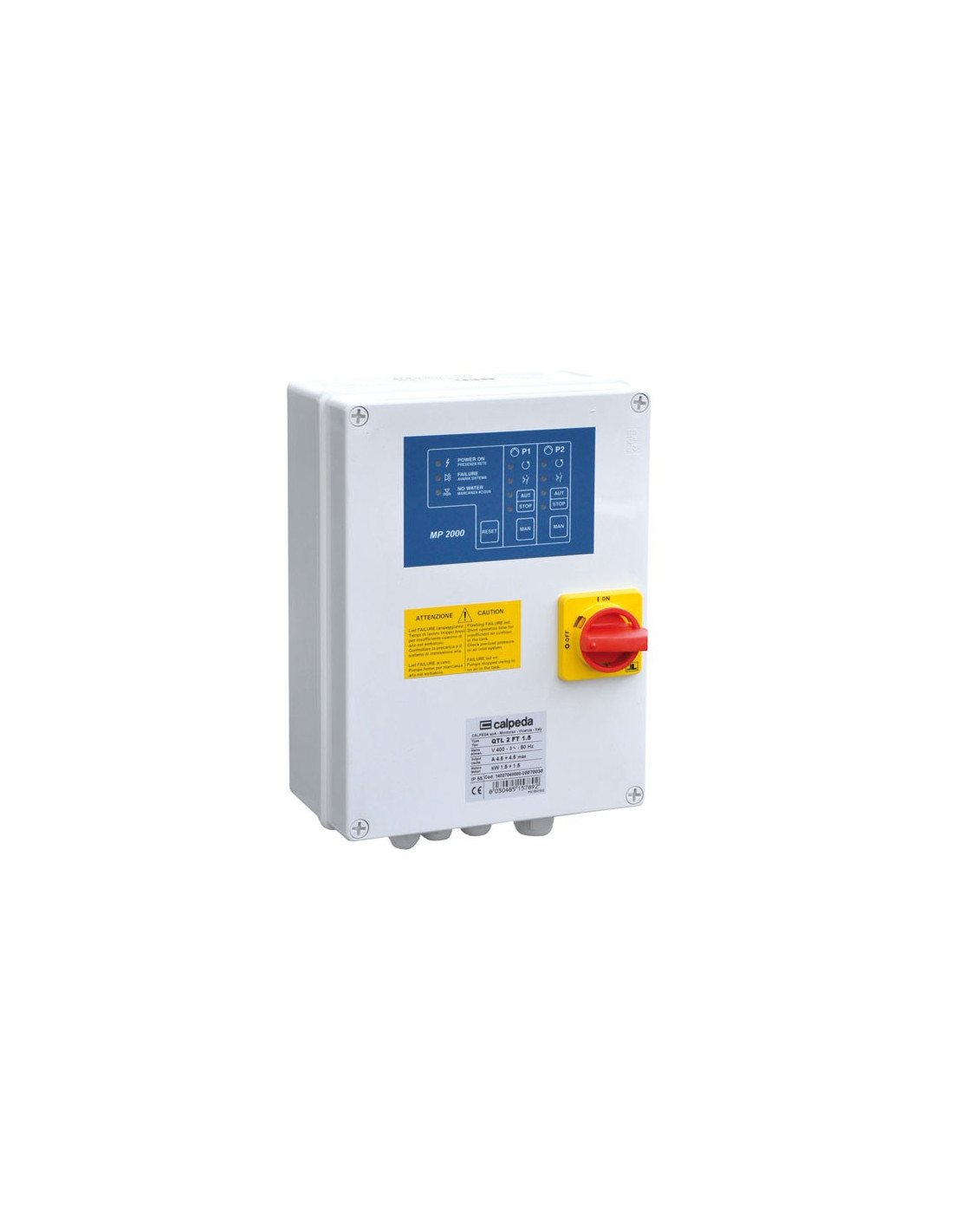

Coffret de gestion 2 pompes QTLD 2D

Control panel for 2 lift pumps Three-phase QTLD 2D

008032
Delivery 2 to 4 days
€717.50

€717.50 tax excl.

Control and protection panel for 2 three-phase lift pumps, adjustment from 1 to 12 A. Allows alternating operation of the pumps with two floats as well as simultaneous operation with three floats, thermal protection.

Description

Operation:
- With 2 float switches (alternating pump operation) + 1 float switch for tank high level alarm.
- With 3 float switches (alternating pump operation + simultaneous operation) + 1 float switch for tank high level alarm.

Specifications:
- Main isolator switch on the front panel
- 2 current adjustment potentiometers
- 2 three-phase power contactors
- 1 Micro-PLC "remote control and management" with AUTO/STOP - MANUAL - RESET buttons and indicator LEDs for each pump
- Connection terminal block
- diagram + technical manual.
- Dimensions: 315 x 235 x 170 mm.

Model Reference
Current
(A)
Voltage
(V)
Dimension
(H x L x P)
QTLD 2D
12A-FA		 008032 1 to 12 400 315 x 235
x 170 mm
