Coffret de gestion 2 pompes QTLD 2D

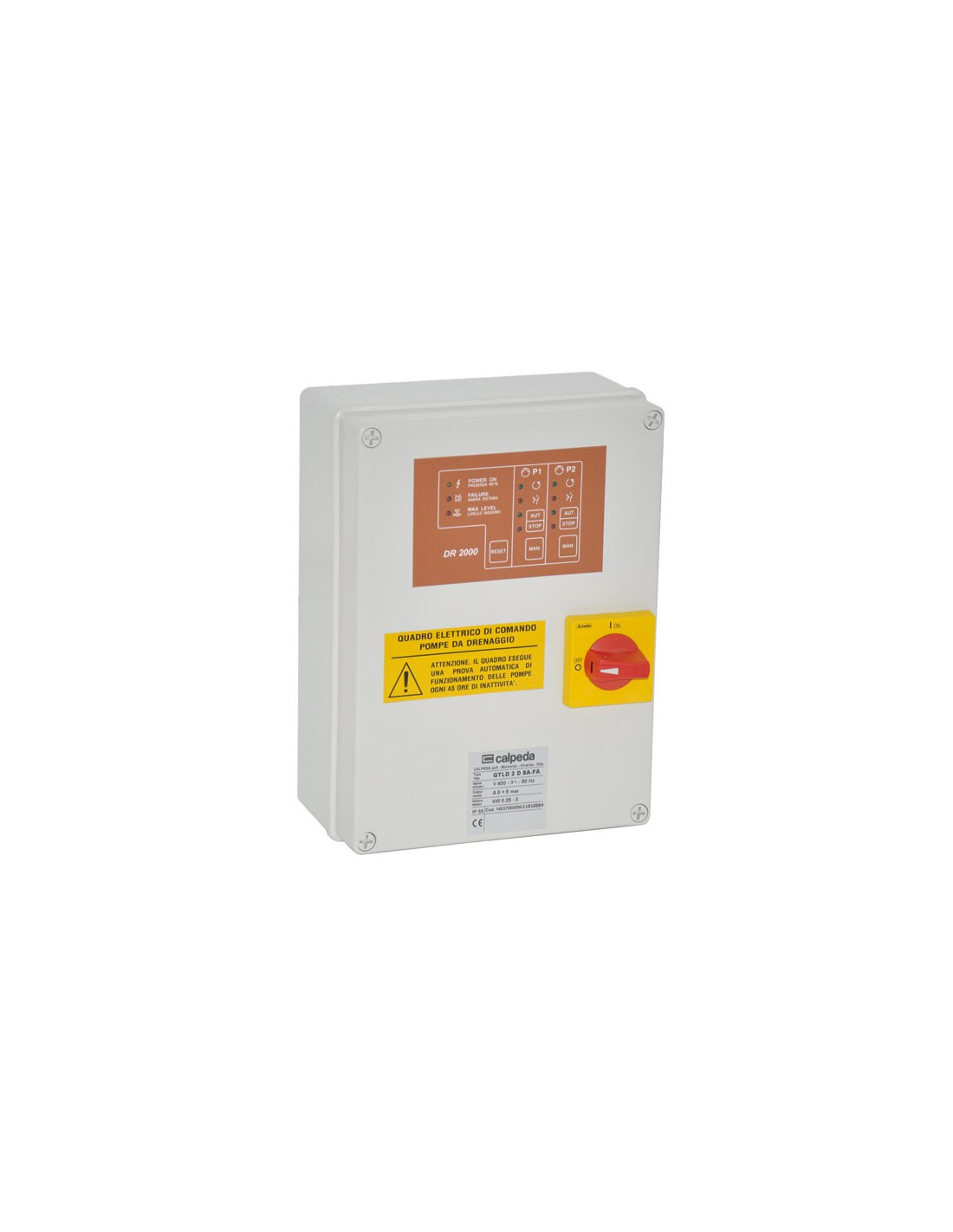

Control panel for 2 lift pumps Single-phase QML/A 2D 12A-FA

008033
Delivery 2 to 4 days
£554.66

£554.66 tax excl.

Control and protection panel for 2 single-phase lift pumps, adjustment from 1 to 12A. Allows alternating operation of the pumps, thermal protection.

Description

Operation:
- Operation with 3 floats: 2 floats for pump control + float for tank high level alarm. (see ATTACHED DOCUMENTATION, QMLD 2D manual, operate with 3 floats, )
- Operation with 4 floats: 3 floats for pump control + float for tank high level alarm. (see ATTACHED DOCUMENTATION, QMLD 2D manual, operate with 3 floats, )

Panel specifications QML/A 2D 12A-FA :
- Main isolator switch on the front panel
- 2 current adjustment potentiometers
- 2 single-phase power contactors
- 1 Micro-PLC "remote control and management" with AUTO/STOP - MANUAL - RESET buttons and indicator LEDs for each pump
- Connection terminal block
- diagram + technical manual.

Model Reference
Current
(A)
Voltage
(V)
Dimension
(H x L x P)
QML/A 2D 12A-FA
 008033 1 to 12 230 315 x 235
x 170 mm
