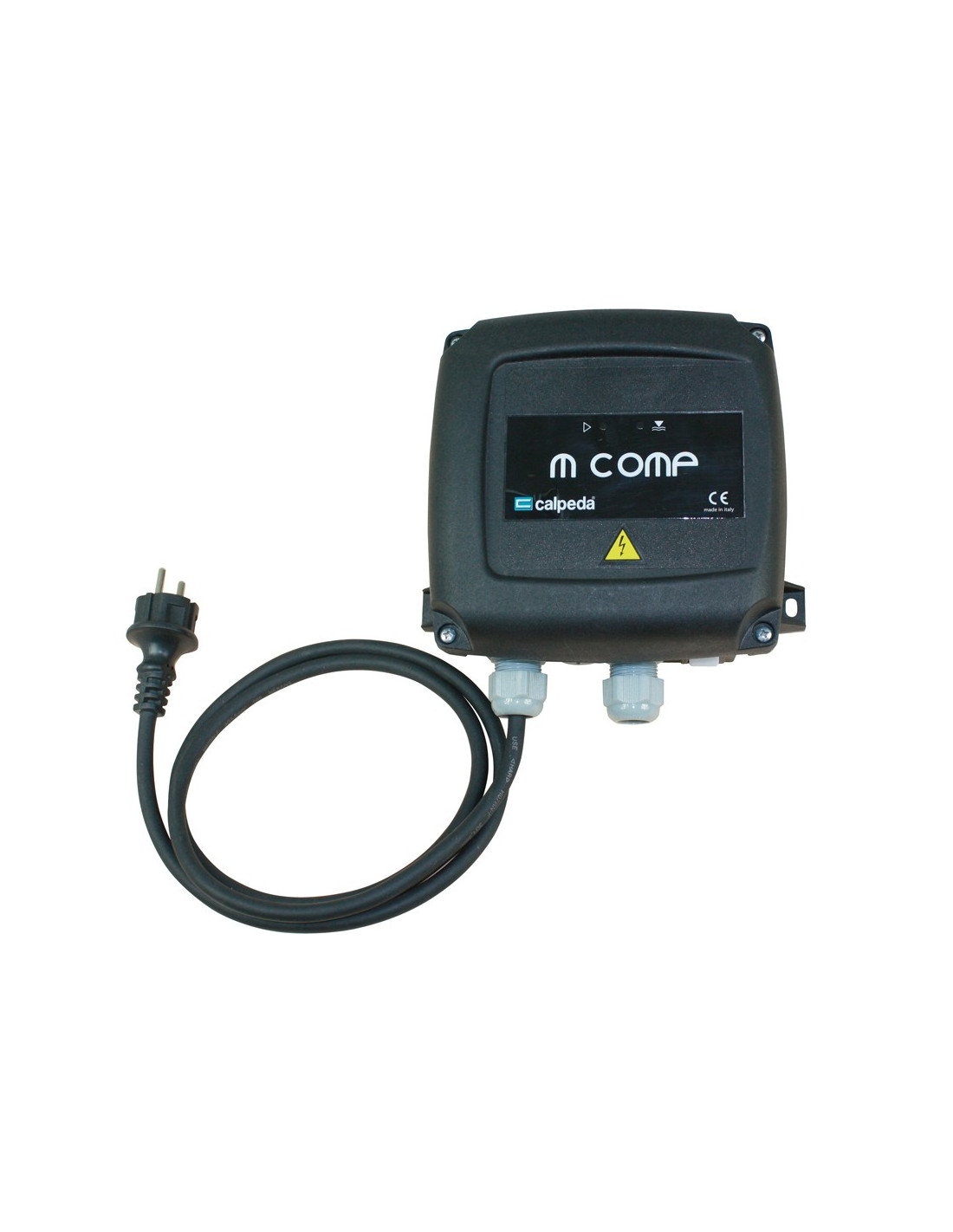

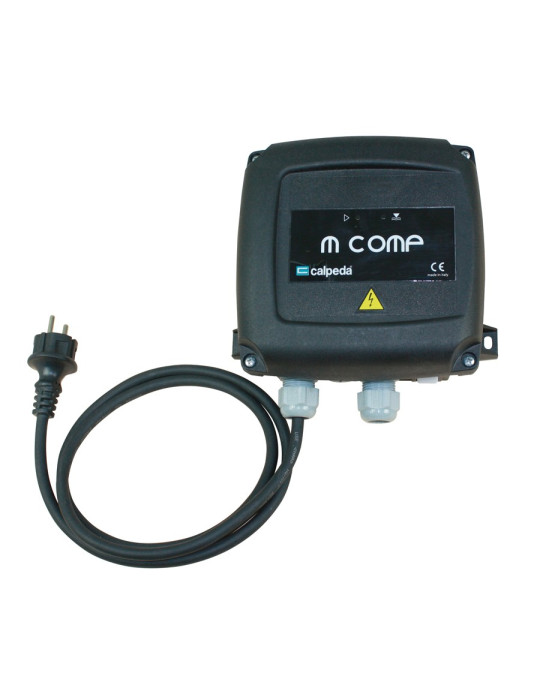

Coffret de commande et protection pompe monophasé (MCOMP)

Single-phase pump control and protection panel (MCOMP)

008105
Delivery 2 to 4 days
€197.50

€197.50 tax excl.

Single-phase 230 volt electrical panel for the control and thermal protection of a submersible borehole pump, well pump, sump lift pump or decompression well pump. On/Off switch, terminal block for connecting the power supply, pump and remote control (float or pressure switch). LVBT board option, operation with one or two level electrodes.

M COMP

Attributs
Image Ref. M COMP Unit price Avail. Buy
Single-phase pump control and protection panel (MCOMP)
008105 4-16
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008106 4-20
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008107 5-20
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008108 5-25
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008109 6-20
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008110 6-35
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008111 7-25
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008112 7-30
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008113 8-25
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008114 8-30
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008115 10-35
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008116 10-40
€197.50
Available
Single-phase pump control and protection panel (MCOMP)
008117 12-35
€205.00
Available
Single-phase pump control and protection panel (MCOMP)
008118 12-50
€205.00
Available
Single-phase pump control and protection panel (MCOMP)
008119 12-60
€209.17
Available
Single-phase pump control and protection panel (MCOMP)
008120 16-70
€209.17
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Uses:
- Control and protection of a single-phase booster set up to 2.20 Kw.
- Control of a surface pump for automatic tank filling.
- Option with card LVBT, protection against lack of water in a borehole, a well (with one electrode) or lifting of water from decompression wells, emptying of pits, sumps, (with two electrodes).

Specifications:
- Plastic box IP44.
- Power: from 0.37 kW to 2.20 kW, (see table below).
- On/Off switch with thermal protection (overcurrent, overload).
- Built-in capacitor, (see table below).
- Functions, with pressure switch, (booster operation) or with a float switch for tank filling.
- Power cable and plug 1.5 metre.
- LVBT board option, for 1 or 2 level electrodes, (ref.: 008121), operation as dry-run (lack of water) protection with 1 electrode or as emptying with 2 electrodes.

ModelReferenceCurrent
max (A)		Capacitor
(µF)		Power supply
(V)		Dimensions
L x D x W (mm)
MCOMP 4-16   4 16 230 - single-phase 220 x 210 x 110
MCOMP 4-20   4 20
MCOMP 5-20 5 20
MCOMP 5-25 5 25
MCOMP 6-20 6 20
MCOMP 6-35 6 35
MCOMP 7-25 7 25
MCOMP 7-30 7 30
MCOMP 8-25 8 25
MCOMP 8-30 8 30
MCOMP 10-35 10 35
MCOMP 10-40 10 40
MCOMP 12-35 12 35
MCOMP 12-50 12 50
MCOMP 12-60 12 60
MCOMP 16-70 16 70
