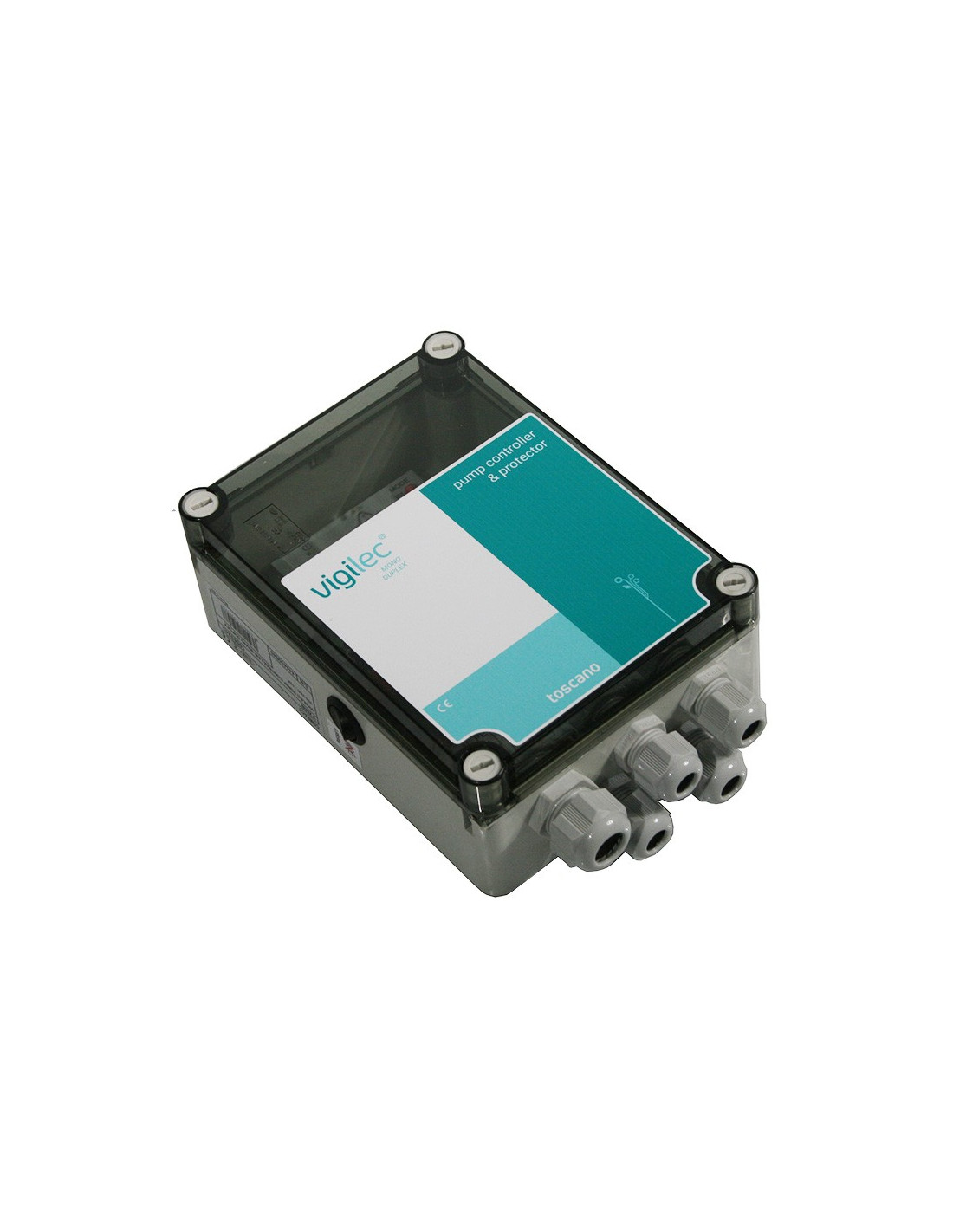

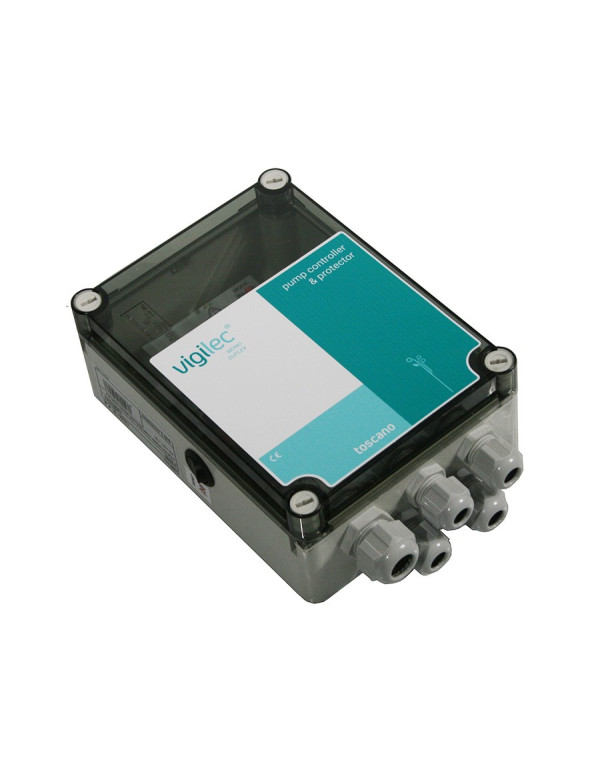

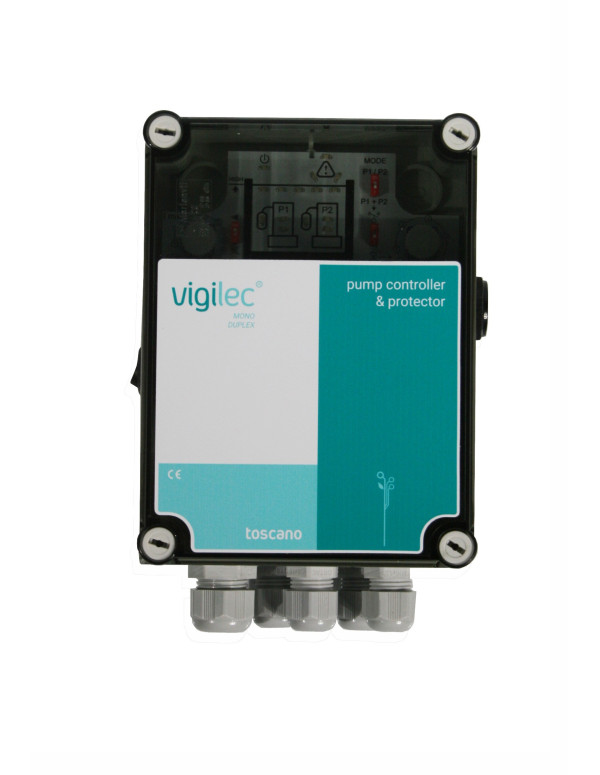

V2MB control panel for 2 lift pumps

007114
Delivery 2 to 3 days
€355.00

€355.00 tax excl.

Control and protection panel for 2 single-phase 230 VAC lift pumps with integrated float switches (pump rating from 1A to 12A). The V2MB offers 2 operating modes as well as an overflow level function. The detailed and illustrated installation manual ensures a simple and quick installation.

Description

The V2MB control and protection panel is designed to control two single-phase lift pumps with integrated float. The pump rating must be between 1A and 12A, with a power of 0.37 Kw to 1.5 Kw. The V2MB is fitted with a buzzer and indicator lights that activate to signal the overflow level.

Operating mode:
- P1/P2 mode: only one pump is started; the second pump is started if the first pump fails, as a safety measure.
- P1+P2 mode: this operating mode allows both pumps to be started according to demand. During periods of low demand, only one of the two pumps is started. During periods of high demand,
both pumps are used.
- Buzzer on/off button.

ModelV2MB
Reference 007114
Power supply 230 VAC, 50/60Hz
Thermal protection
Overload ≥ 15% (trips after 7s)
Indication
Voltage present, general fault, pump running
Thermal fault, float fault and overflow level
Pump rating Automatic or manual from 1 A to 12 A
Start-up delay of the auxiliary pump Adjustable from 0.5 min to 5 min (P1+P2 mode)
Float voltage 12 VDC
Alarm relay contact 2 A / 250 VAC max.
Max. connection cross-section 4 mm²(power) / 2.5mm²(control)
Cable gland configuration Power supply: 1xM20 / Motors: 2xM16
control: 2x M16
Operating temperature -10°C to +55°C
Protection IP65
Dimensions
220 x 145 x 80 mm
Weight (Kg) 0.8
