SOBA EP Level regulator ACS certified for drinking water with external ballast - 3.5 bars

ATMI ATMI

New

ACS level regulator SOBA EP with external ballast, ACS certified (Sanitary Conformity Certification). Using with potable water. Maxi. pressure 3.5 bars. Temperature service : + or - 25°.

More details

less than 5 days

101,67 €

tax incl.


Combinations Model reference Stock Price quantity Add to cart

SOBA EP Level regulator ACS certified for drinking water with external ballast - 3.5 bars : Model:5m

5m

Stock :

001376

Price : 101,67 €

5m 001376

Available now


101,67 €

SOBA EP Level regulator ACS certified for drinking water with external ballast - 3.5 bars : Model:10m

10m

Stock :

001377

Price : 127,62 €

10m 001377

Available now


127,62 €

SOBA EP Level regulator ACS certified for drinking water with external ballast - 3.5 bars : Model:20 m

20 m

Stock :

001378

Price : 178,04 €

20 m 001378

Available now


178,04 €

SOBA EP Level regulator ACS certified for drinking water with external ballast - 3.5 bars : Model:30m

30m

Stock :

001379

Price : 228,81 €

30m 001379

Available now


228,81 €

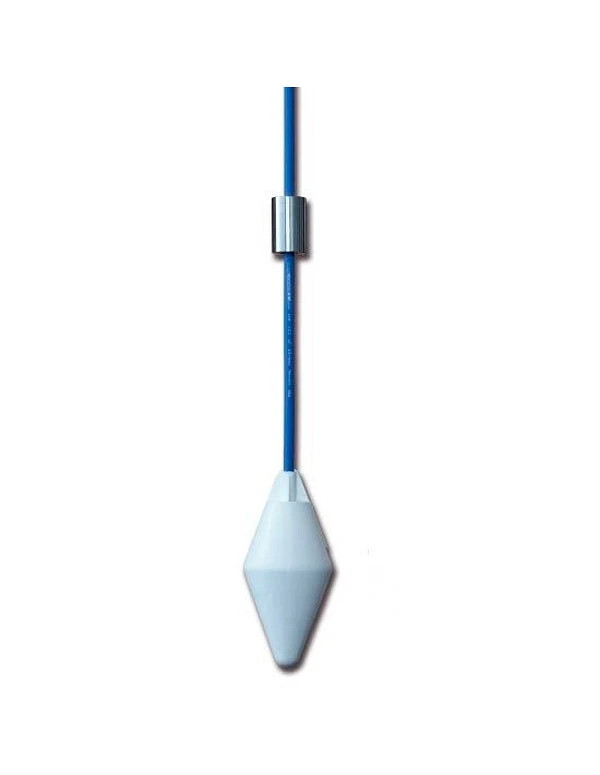

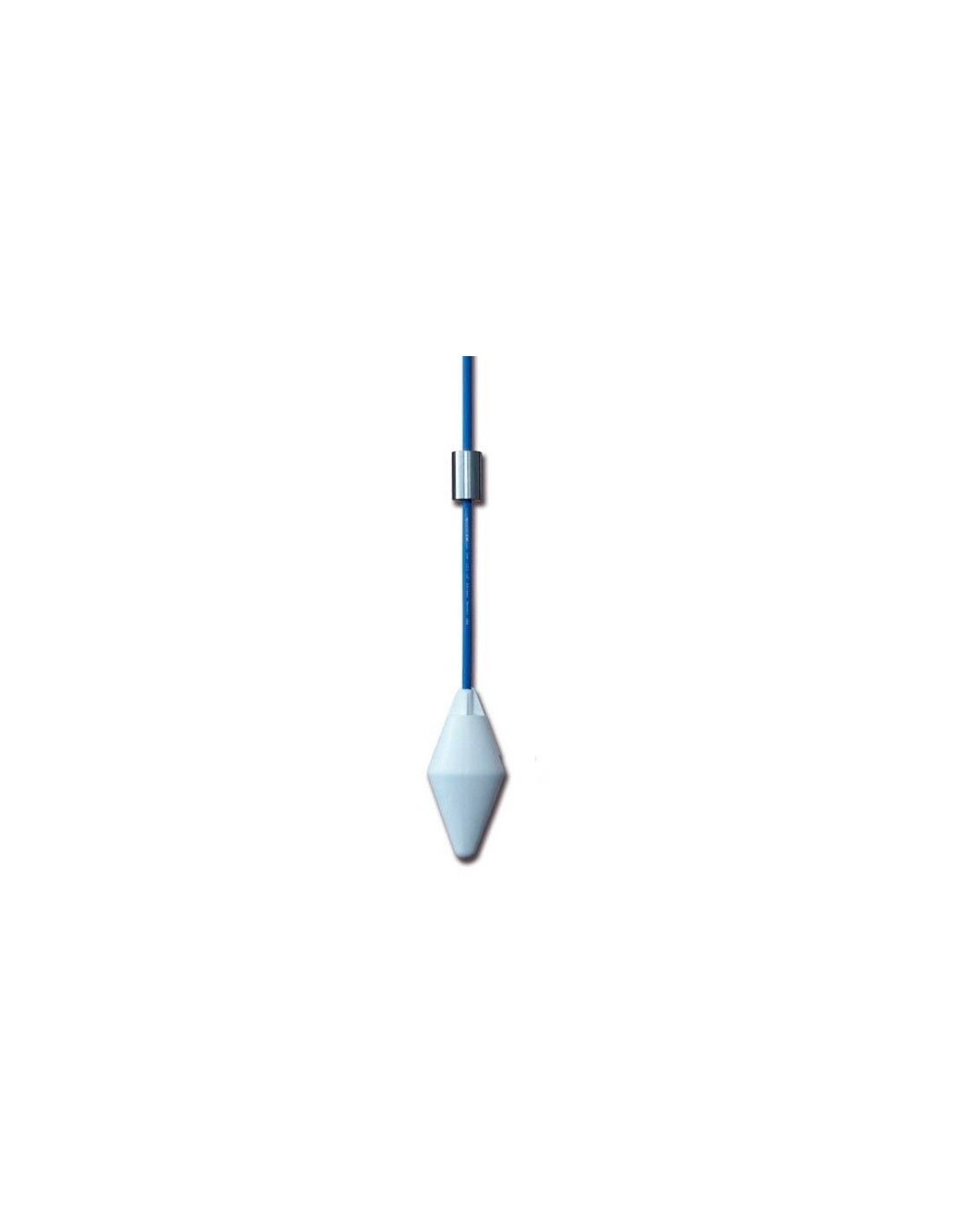

The SOBA EP is an ACS certified switch float level constructed with special components for use in drinking water applications. As the liquid level reaches the unit, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel.  The SOBA EP is equipped with a stainless steel (AISI 316L) adjustable ballast, and ensures a very precise level measurement thanks to its + or -, 25º switching angle.

Advantages :

- No maintenance needed, thanks to its biconical shape that avoids any clogging
- Easy to install, easy to use
- Ecological float switch (no mercury, no lead)

Applications :

- Potable water for human consumption
- Level control of multiple pumps

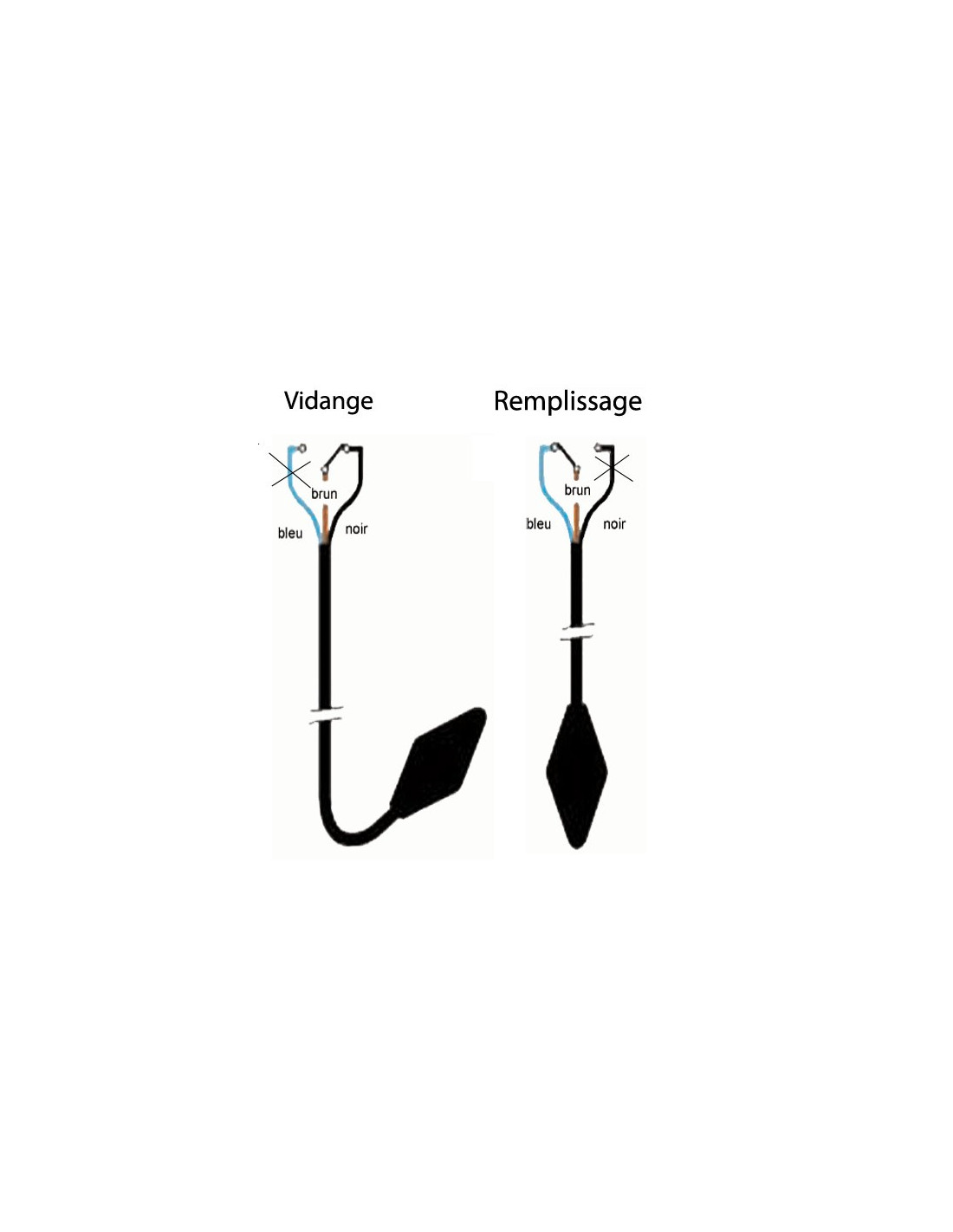

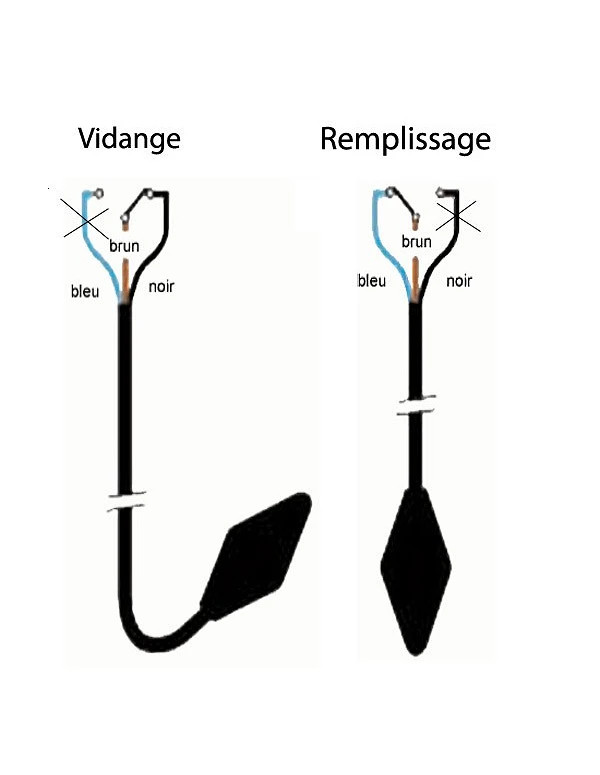

- Emptying / Filling function
- Overflow or dry-running protection
- High / low level alarm

Technical characteristics :

- Operation mode omnidirectional
- Switching angle + or - 25°
- Maximum pressure : 3,5 bars
- Allowed fluid density from 0,70 to 1,15
- Cut-out power : 16 (6) A (16A resistive – 6A inductive)
- Cable type Sanitary EPDM
- Certification ACS (Sanitary Conformity Certificate) according to the AFNOR XP P41-250 (1-2-3) standard

Models SOBA EP 5 SOBA EP 10 SOBA EP 20 SOBA EP 30
Reference 001376 001377 001378 001379
Cable (m) 5 10 20 30
Switching angle
+/- 25º
Operation mode
Omnidirectionnel
Cable type
Special EPDM certified ACS -A07RN8-F
316L stainless steel ballast
230 g
Maximum pressure (bar) 3,5
Service temperature max 85 °C
Allowed fluid density
from 0,70 to 1,15
Contactor
Silver / nickel contacts – reverser
Cut-out power (A) (16A resistive - 6A inductive)
Operating
12, 24, 48 VCA/VCC & 250 VCA- 50/60 Hz
Level of protection IP68
Weight without cable 200 g
Regulator size
Height : 170 mm – Diameter: 80 mm
