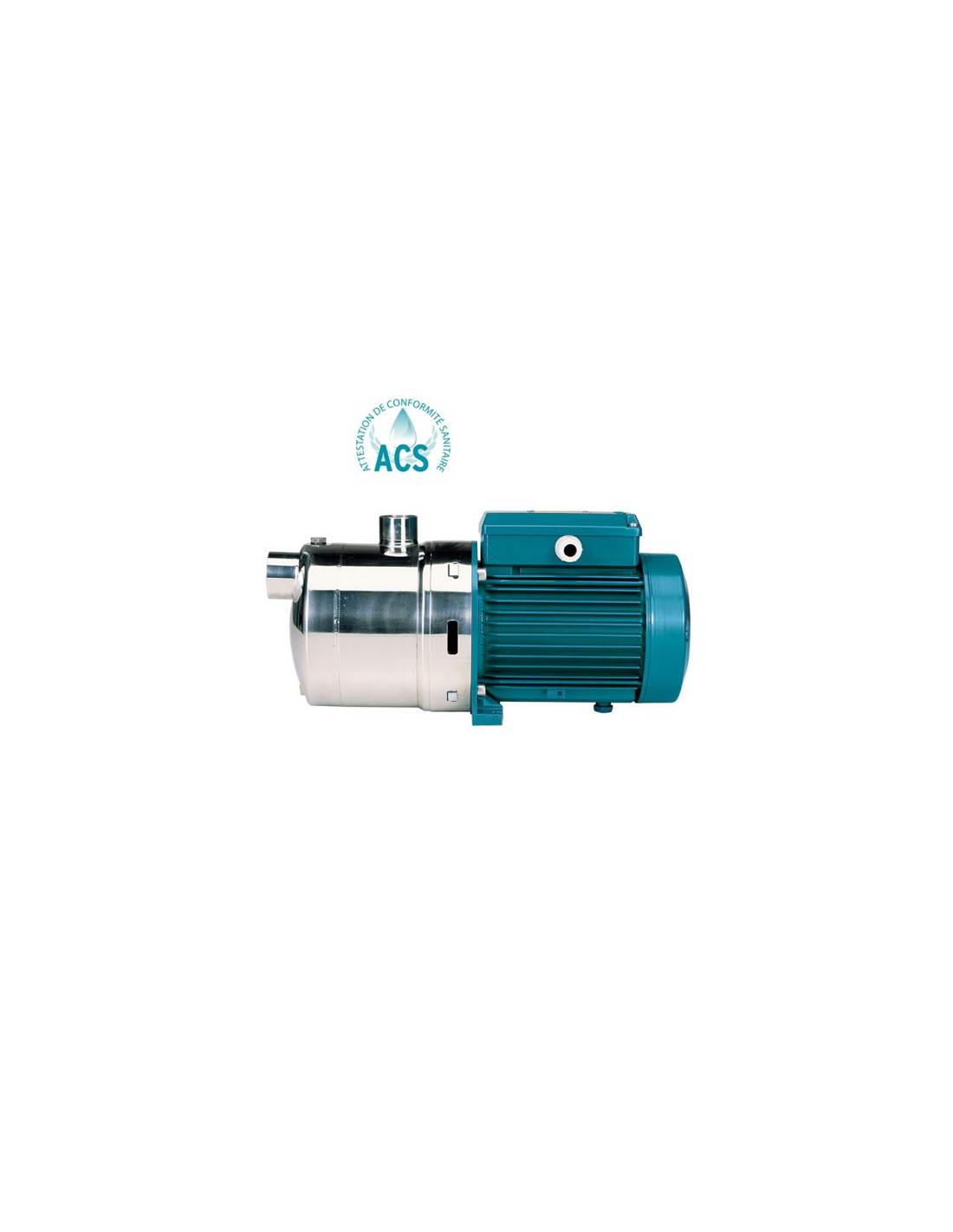

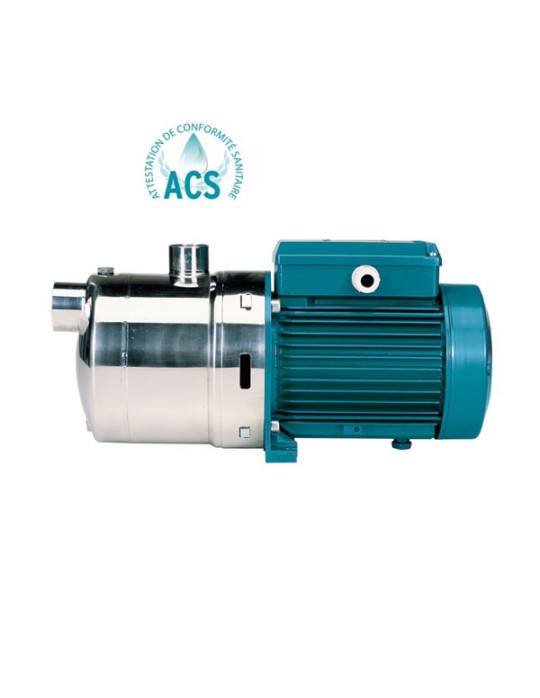

Horizontal multistage all-304 stainless steel pump - MXH 2 (400 V)

Key features of the MXH pump :
- All hydraulic parts in contact with the liquid are made of AISI 304 stainless steel.
- Compact, robust construction, threaded ports.
- One-piece pump body, open on one side only (barrel casing), with a front suction port above the pump axis and a radial discharge port at the top.
- Filling and drain plug in the middle of the pump, accessible from all sides (the same as for the terminal box).

Uses:
- Water supply.
- Booster set for homes.
- Pump for washing, watering, gardening...

Specifications:
- Pump body, stage casing, impeller and turbine in AISI 304 stainless steel.
- AISI 316 stainless steel shaft.
- Mechanical seal: aluminium oxide, hard carbon, EPDM (other materials on request).
- Liquid temperature from - 15 °C to + 110 °C.
- Ambient temperature up to 40 °C.
- Maximum permissible pressure in the pump body: 8 bar.
- Motor 2900 rpm - three-phase 230/400V - high efficiency IEC ≥ 0.75 Kw.
- Continuous duty.
- Insulation class F.
- IP 54 protection.
- Built to: IEC 60034; IEC 60038; IEC 60335-1, EN 60335-1; IEC 60335-2-41, EN 60335-2-41.
