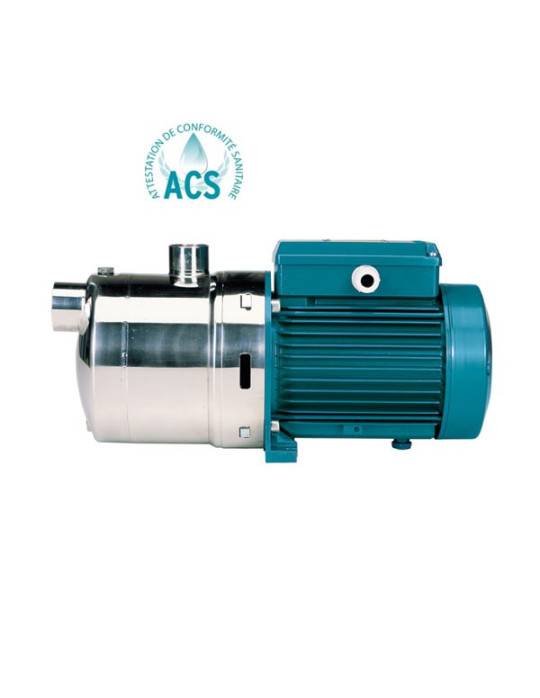

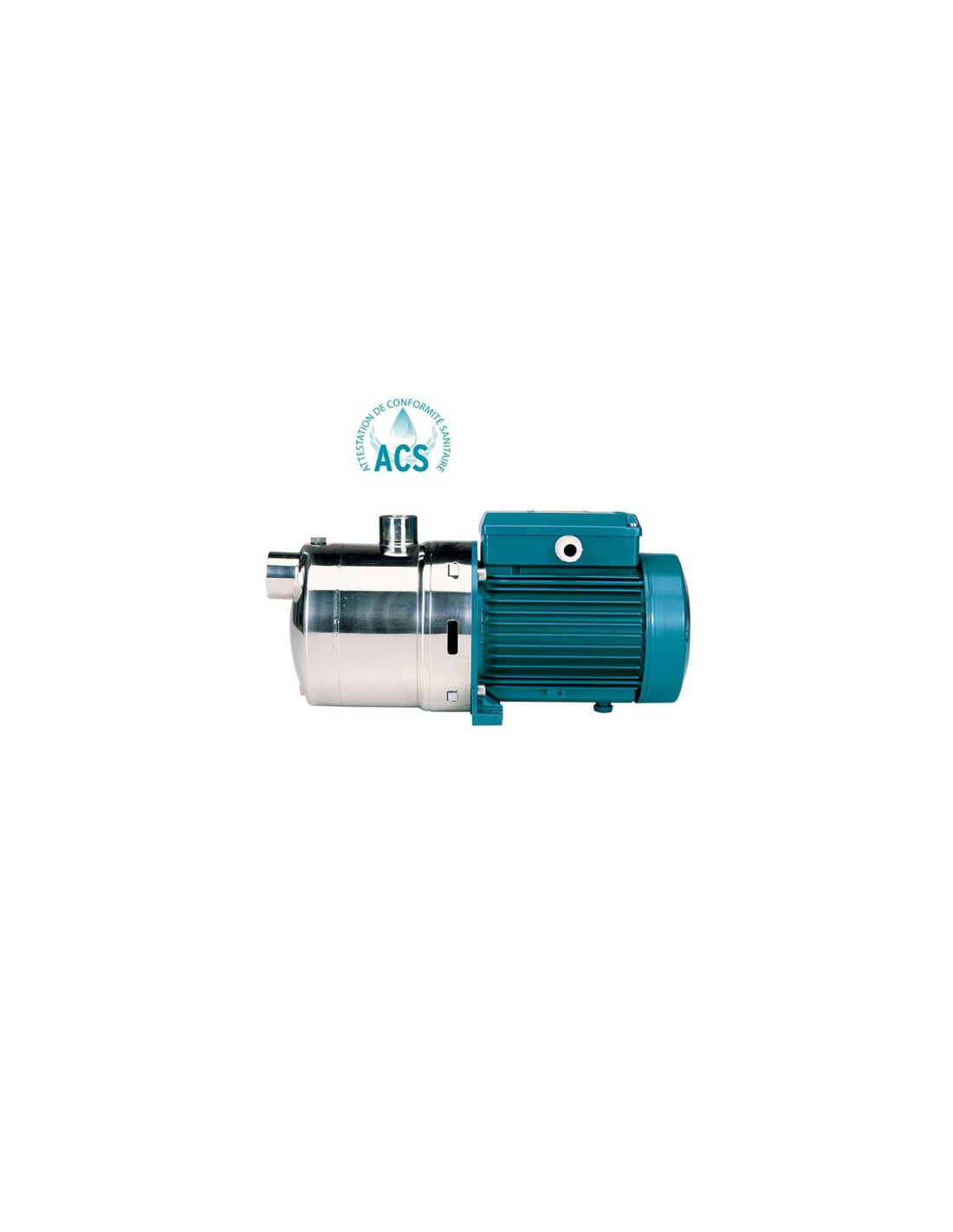

Horizontal multistage all stainless steel 316L pump - MXHLM 4 (230 V)

Key features of the MXHLM pump:
- All hydraulic parts in contact with the liquid are made of AISI 316L stainless steel.
- Compact, robust construction, threaded ports.

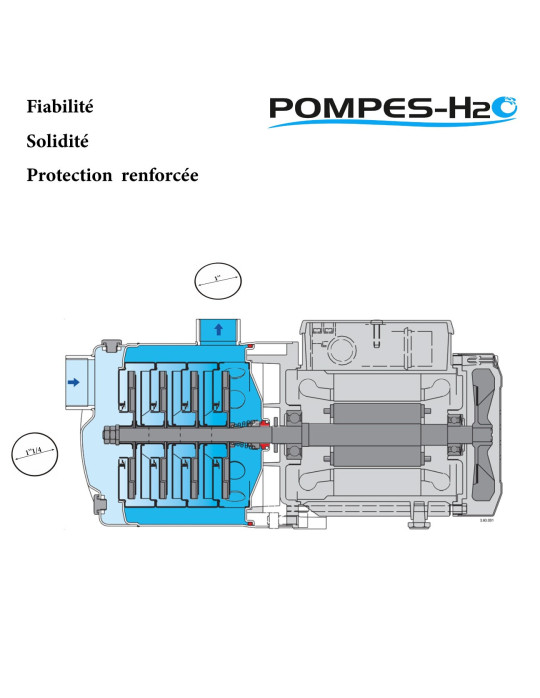

- One-piece pump body, open on one side only (barrel casing), with a front suction port above the pump axis and a radial discharge port at the top.
- Filling and drain plug in the middle of the pump, accessible from all sides (the same as for the terminal box).

Uses:
- Pump for raw water and slightly aggressive liquids.
- Drinking water supply.
- Booster set for homes, washing...
- Pump for industry, laboratories, food processing...

Specifications:
- Pump body, stage casing, impeller and turbine in AISI 316L stainless steel.
- AISI 316 stainless steel shaft.
- Mechanical seal: aluminium oxide, hard carbon, EPDM (other materials on request).
- Liquid temperature from - 15 °C to + 110 °C.
- Ambient temperature up to 40 °C.
- Maximum permissible pressure in the pump body: 10 bar.
- Continuous duty.
- Insulation class F.
- IP 54 protection.
- Built to: IEC 60034; IEC 60038; IEC 60335-1, EN 60335-1; IEC 60335-2-41, EN 60335-2-41.
