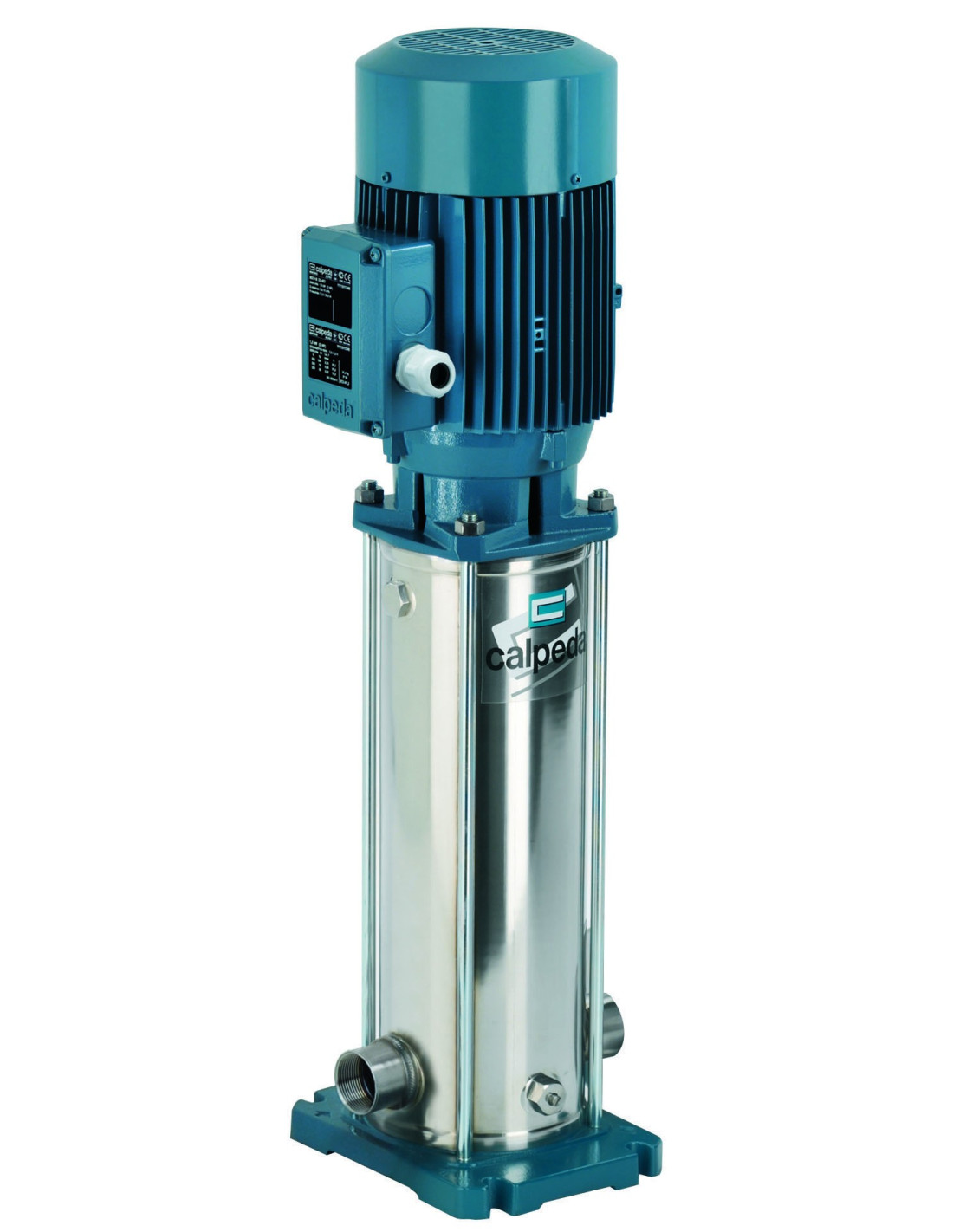

CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V

CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V

606132
Delivery 2 to 4 days
€1,258.33

€1,258.33 tax excl.

Pressure boosting vertical multi-stage pump 400V, made in chrome-nickel stainless steel. Suction and  discharge in line, center-distance to 225mm, nominal size (DN) 1"1/2. Available from 0.75kw to 2.20kw. Maxi. flow rate 8m3/h.

PUISSANCE

Attributs
Image Ref. PUISSANCE Unit price Avail. Buy
CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V
606132 0.75 Kw
€1,258.33
Available
CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V
606133 1.10 Kw
€1,288.33
Available
CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V
606134 1.10 Kw (1)
€1,325.00
Available
CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V
606135 1.50 Kw
€1,427.50
Available
CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V
606136 1.50 Kw (1)
€1,490.00
Available
CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V
606168 2.20 Kw
€1,542.50
Available
CALPEDA MXV-B 32 vertical multistage pump in stainless steel 400V
606169 2.20 Kw (1)
€1,664.17
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Used for boosting pressure, fire suppression, irrigation, high pressure washing, and all domestics systems, communities agricultural production, industries... For clean liquids without solids particles, non-explosives and non-aggressives. All parts who touch the liquid are in high-grade stainless steel. Very resistant bearing to corrosion and lubricated by the pumped liquid.

Limits of use of the CALPEDA MXV-B M 32 pump :
- Temperature of liquid : from -5°C to +90°C.
- Temperature room until +40 °C.
- Maxi. pressure in the body pump : 16 bars.
- Insulation : classe F. Level of protection : IP 54.
- Standard norm : IEC 600034

Characteristics of Calpeda MXV-B M 32 pump :
- Continuous service. Thermal protection and capacitor in-built.
- Induction motor 2 poles, 50 Hz (n = 2900 rpm).
- Shaft, outer sleeve, inlet body, and discharge, stages housing, impeller, lower and top cover, spacer in nickel chromium steel 1.4301 EN 10088 (AISI 304).
- Mechanical seal (ISO 3069 - KU) in ceramic hard alumina/carbon EPDM.
- Wearing ring in PTFE.
- O-Rings NSR.

Model MXV-B
32-403 		 MXV-B
32-404 		 MXV-B
32-405		 MXV-B
32-406		 MXV-B
32-407		 MXV-B
32-408/A		 MXV-B
32-410/A
Ref. 606 132 606 133 606 134 606 135 606 136 606 169 606 170
Power (kW) 0.75 1.10 1.10 1.50 1.50 2.20 2.20
Three-phase (V) 400
Intensity(A) 2.3 2.9 2.9 4.3 4.3 5.3 5.3
TDH (m CE) 34 45 56 68 79.5 91 114
Maxi. pressure (bar) 3.4 4.5 5.6 6.8 7.95 9.1 11.4
Maxi. flow rate (m3/h) 8
Maxi. flow rate (l/min)   133.3
Ø suction hose 1" 1/4 F
Ø discharge hose 1" 1/4 F
Suction center-distance
/ discharge (mm) 		225
Weight (kg) 24 25 26 28 29 31
